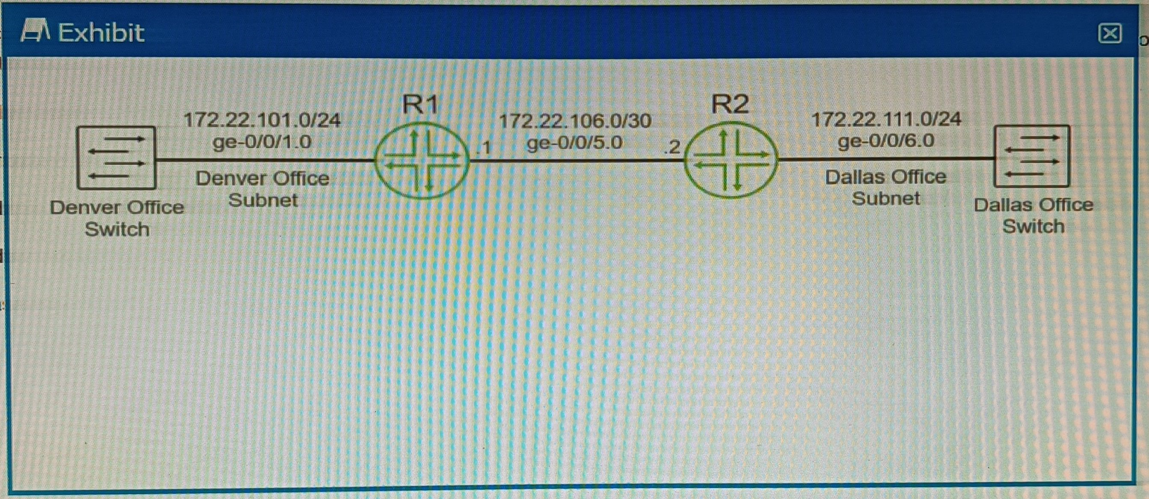

The routers that are directly connected to the Dallas and Denver subnets are not advertising the connected subnets.This can be resolved by redistributing the connected subnets into OSPF1.

Option C suggests to configure and apply a routing policy that redistributes the connected Dallas and Denver subnets.This is correct because redistribution allows routes from one routing protocol to be communicated to another, and in this case, it allows the connected subnets to be advertised through OSPF1.

Option D suggests enabling the passive option on the OSPF interfaces that are connected to the Dallas and Denver subnets.This is also correct because in OSPF, a passive interface is an interface that belongs to the OSPF router, but does not send OSPF Hello packets1.It's typically used on an interface that you don't want to use for OSPF adjacencies, but you still want to advertise its IP address1. Therefore, enabling passive interface can help in advertising the Dallas and Denver subnets.

BFD is a protocol that can be used to quickly detect failures in the forwarding path between two adjacent routers or switches. BFD can be integrated with various routing protocols and link aggregation protocols to provide faster convergence and fault recovery.

According to the Juniper Networks documentation, the following protocols support BFD on Junos OS devices1:

BGP: BFD can be used to monitor the connectivity between BGP peers and trigger a session reset if a failure is detected.BFD can be configured for both internal and external BGP sessions, as well as for IPv4 and IPv6 address families2.

OSPF: BFD can be used to monitor the connectivity between OSPF neighbors and trigger a state change if a failure is detected.BFD can be configured for both OSPFv2 and OSPFv3 protocols, as well as for point-to-point and broadcast network types3.

LACP: BFD can be used to monitor the connectivity between LACP members and trigger a link state change if a failure is detected.BFD can be configured for both active and passive LACP modes, as well as for static and dynamic LAGs4.

Other protocols that support BFD on Junos OS devices are:

IS-IS: BFD can be used to monitor the connectivity between IS-IS neighbors and trigger a state change if a failure is detected. BFD can be configured for both level 1 and level 2 IS-IS adjacencies, as well as for point-to-point and broadcast network types.

RIP: BFD can be used to monitor the connectivity between RIP neighbors and trigger a route update if a failure is detected. BFD can be configured for both RIP version 1 and version 2 protocols, as well as for IPv4 and IPv6 address families.

VRRP: BFD can be used to monitor the connectivity between VRRP routers and trigger a priority change if a failure is detected. BFD can be configured for both VRRP version 2 and version 3 protocols, as well as for IPv4 and IPv6 address families.

The protocols that do not support BFD on Junos OS devices are:

RSTP: RSTP is a spanning tree protocol that provides loop prevention and rapid convergence in layer 2 networks. RSTP does not use BFD to detect link failures, but relies on its own hello mechanism that sends BPDU packets every 2 seconds by default.

FTP: FTP is an application layer protocol that is used to transfer files between hosts over a TCP connection. FTP does not use BFD to detect connection failures, but relies on TCP's own retransmission and timeout mechanisms.

1: [Configuring Bidirectional Forwarding Detection]2: [Configuring Bidirectional Forwarding Detection for BGP]3: [Configuring Bidirectional Forwarding Detection for OSPF]4: [Configuring Bidirectional Forwarding Detection for Link Aggregation Control Protocol] : [Configuring Bidirectional Forwarding Detection for IS-IS] : [Configuring Bidirectional Forwarding Detection for RIP] : [Configuring Bidirectional Forwarding Detection for VRRP] : [Understanding Rapid Spanning Tree Protocol] : [Understanding FTP]

The maximum allowable MTU size for a default GRE tunnel without IPv4 traffic fragmentation is1476 bytes1.This is because GRE packets are formed by the addition of the original packets and the required GRE headers1.These headers are 24-bytes in length and since these headers are added to the original frame, depending on the original size of the packet we may run into IP MTU problems1.The most common IP MTU is 1500-bytes in length (Ethernet)1.When the tunnel is created, it deducts the 24-bytes it needs to encapsulate the passenger protocols and that is the IP MTU it will use1.For example, if we are forming a tunnel over FastEthernet (IP MTU 1500) the IOS calculates the IP MTU on the tunnel as: 1500-bytes from Ethernet - 24-bytes for the GRE encapsulation = 1476-Bytes1.

In this scenario, you should create anaggregate route1.Aggregate routes are used for advertising summarized network prefixes1.They help minimize the number of routing tables in an IP network by consolidating selected multiple routes into a single route advertisement1.This approach is in contrast to non-aggregation routing, in which every routing table contains a unique entry for each route1.

Therefore, option A is correct. Options B, C, and D are not correct because:

Static route using the resolve feature: This type of route uses the resolve feature to install a static route in the routing table only if a specific condition is met1. However, it does not provide the capability to summarize multiple routes into a single prefix.

Generate route: This type of route generates a route that is always present in the routing table and can be used to summarize routes.However, it does not have the capability to only advertise the route when specific BGP routes are being received from a neighbor1.

Static route using qualified next hops: This type of route allows for the specification of multiple next-hop addresses for a static route1. However, it does not provide the capability to summarize multiple routes into a single prefix.
