The primary reason for the uneven traffic distribution is the presence of a Persistence Profile in the virtual server configuration.

Load Balancing vs. Persistence: While the Round Robin method is designed to distribute new connections sequentially among pool members, Persistence overrides this logic for existing clients.

Source Address Persistence: The configuration shows source_addr persistence is enabled. This ensures that once a client (identified by their source IP) is mapped to a pool member, all subsequent connections from that same IP will be sent to the same member for the duration of the persistence record.

Uneven Distribution Logic: If one source IP address generates significantly more connections or longer-lived sessions than others---or if many clients appear behind a single NAT/Proxy IP---that specific pool member (in this case, 172.16.20.3) will receive a disproportionate amount of traffic compared to the others.

Evaluating Other Options:

Automap (Option A): SNAT Automap changes the source IP between the BIG-IP and the pool member. It does not impact the BIG-IP's ability to load balance incoming client requests.

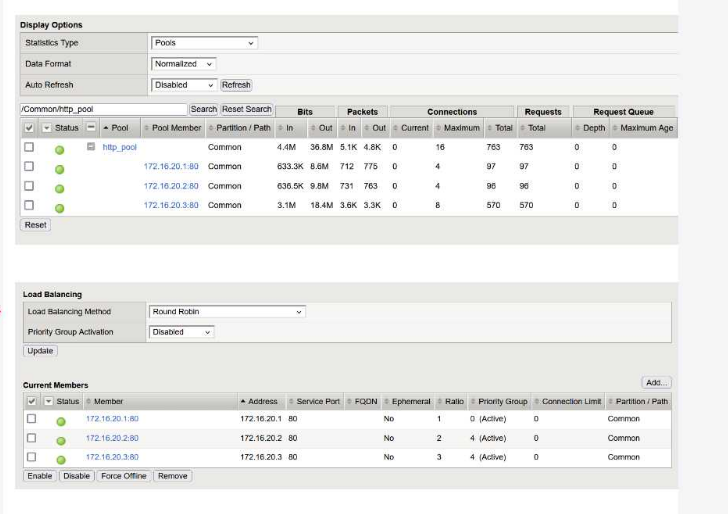

Ratio Settings (Option B): In the provided exhibit, the pool members have a Ratio of 1, 2, and 3 respectively. While a higher ratio does direct more traffic to a member, the question asks for the 'most likely cause' in the context of the provided ltm virtual configuration, which explicitly highlights the persistence override.

HTTP Profile (Option C): Round Robin is a Layer 4 load balancing algorithm and does not require a Layer 7 HTTP profile to function.
