The Open Group OGA-031 Exam - Topic 1 Question 6 Discussion

Actual exam question for The Open Group's OGA-031 exam

Question #: 6
Topic #: 1

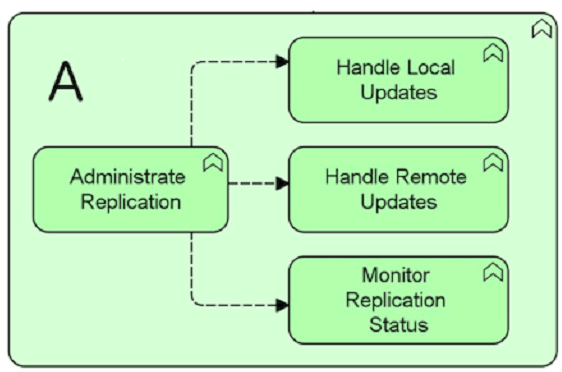

Consider the following diagram:

What correctly describes this diagram?

AFour technology functions realize technology function A The first function Administrate Replication triggers the other three functions in parallel

BTechnology process A aggregates four technology services. The Administrate Replication service is broken down into three other services.

CTechnology function A is composed of four technology processes. The technology process Administrate Replication reads information from the three other processes.

DTechnology function A is composed of four technology functions. Information flows from Administrate Replication to the other functions.

Show Suggested Answer

Suggested Answer: D

Based on the ArchiMate 3 documents or objectives, a technology function represents a collection of technology behavior that can be performed by a node. The diagram uses a composition relationship to indicate that technology function A consists of four other technology functions. The notation for a composition relationship is a solid line with a filled diamond at the end that points to the whole element. The diagram also uses an information flow relationship to indicate that information is exchanged from Administrate Replication to the other functions. The notation for an information flow relationship is a dashed line with an open arrowhead at the end that points to the direction of the flow.
