NFPA CFPE Exam Questions
- Topic 1: Administrative: This topic tests fire protection engineers and planners on their ability to prepare clear and concise reports based on observations from plan reviews. Engineers must ensure that findings align with applicable codes, standards, and jurisdiction policies while resolving deficiencies and processing documents following established procedures.
- Topic 2: General Knowledge: This topic assesses fire protection engineers' knowledge of relevant codes and standards and their ability to determine the correct document, edition, and topic for a fire protection issue. It also evaluates the engineers' participation in legal proceedings, ensuring accurate testimony and appropriate conduct during proceedings.
- Topic 3: Site Plan Review: In this topic, fire protection engineers must demonstrate their ability to evaluate plans for fire flow, hydrant locations, and spacing to ensure compliance with codes and standards. Engineers will also be tested on evaluating emergency vehicle access, identifying deficiencies, and documenting them per jurisdictional policies.
- Topic 4: Building Plan Review: Fire protection engineers will need to verify occupancy classifications, construction types, and occupant loads in building plans. The exam tests engineers’ ability to ensure these elements comply with applicable codes and standards, as well as their ability to document and report deficiencies according to jurisdictional procedures.
- Topic 5: Fire Protection and Life Safety Systems Review: This topic assesses fire protection engineers' ability to identify and evaluate the requirements for fire protection and life safety systems in plans. Engineers must demonstrate how to review the installation of fire protection systems, including pre-engineered systems, and ensure compliance with standards while documenting deficiencies as required by jurisdictional policies.
Free NFPA CFPE Exam Actual Questions
Note: Premium Questions for CFPE were last updated On Oct. 18, 2026 (see below)
What is the maximum nominal spacing for spot type smoke detectors on smooth ceilings?
According to NFPA 72, National Fire Alarm and Signaling Code, the maximum nominal spacing for spot-type smoke detectors on smooth ceilings is 30 feet (9.1 meters). This spacing ensures adequate coverage for detecting smoke in large areas and complies with the performance criteria established in the standard to provide early warning of fire conditions.
Top of Form
Bottom of Form

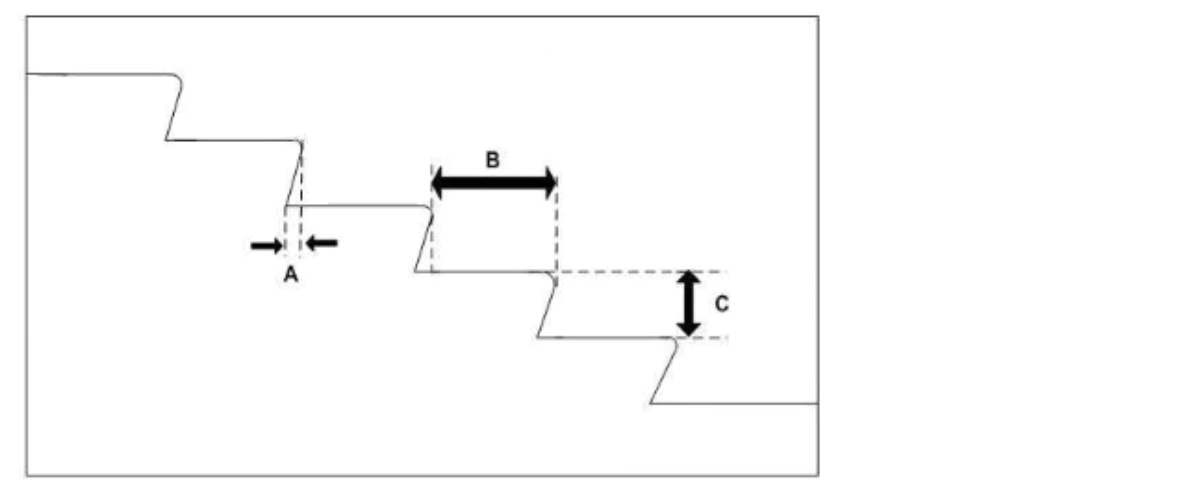

Exhibit.
For the included figure, which dimension is the tread depth?
The tread depth is the horizontal distance from the front edge of a stair tread to the back edge of the same tread, which corresponds to dimension 'B' in the figure. According to NFPA 101, Life Safety Code, the tread depth is crucial in ensuring safe stairway design for proper footing and egress.
Exhibit.
How many different sprinkler types are shown on plan F0.1?
Based on the symbols and descriptions on plan F0.1, there are 5 different sprinkler types shown. These may include various types such as upright, pendant, sidewall, dry, and recessed sprinklers, each serving different functions and locations within the building. The specific types and their designations are typically detailed in the fire protection legend or key on the plan.
Exhibit.
What is the approximate maximum available water indicated on supply graph 2 on plan F0.2?
The graph labeled as 'Water Supply Graph N2' presents a standard water supply flow test summary, which indicates the relationship between pressure (psi or kPa) and flow (gpm or Lpm) for a specific system or hydrant.
How to interpret the graph:
Static Pressure:
This is the pressure measured when there is no water flowing, shown at the highest point on the left side of the graph (indicated as approximately 100 psi or 689 kPa in this case).
Residual Pressure:
This is the pressure available when water is flowing at a specific rate. The residual pressure line decreases as flow increases, indicating that the pressure reduces when water is drawn from the system.
Maximum Available Water:
The maximum available water is the point where the system can deliver the highest possible flow (gpm) before the residual pressure reaches a critical minimum level, indicating the system's limit.
Flow at Maximum Available Water:
In this specific graph, the point marked as Maximum Available Water is where the flow reaches 1,980 gpm (7,495 Lpm). This is derived by following the flow axis (horizontal axis) until it intersects with the Maximum Available Water curve on the graph.
Why the Correct Answer is C (1,980 gpm):
By following the plotted line for residual pressure, the graph shows that the maximum flow attainable from the system is 1,980 gpm (7,495 Lpm) before pressure drops too low. This value represents the system's maximum water supply capacity under normal operating conditions.
This analysis is consistent with the flow rates displayed on the graph and matches the key markers labeled, which indicate the operational limits of the system.
NFPA Relevance:
In fire protection and water supply systems, understanding the maximum available water flow is essential for ensuring that sufficient water can be delivered in the event of a fire. This calculation is particularly relevant in the context of NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection) and NFPA 25 (Standard for the Inspection, Testing, and Maintenance of Water-Based Fire Protection Systems), as these standards require that water supply systems are capable of delivering adequate flow to suppression systems under expected fire conditions.
What is the maximum common path of travel permitted in a sprinklered educational occupancy?
According to NFPA 101, Life Safety Code, the maximum common path of travel in a sprinklered educational occupancy is 100 feet (30 meters). The common path of travel refers to the distance occupants must travel before having two separate means of egress. The code provides this limit to ensure that occupants have a reasonably short distance to safety, enhancing the likelihood of safe evacuation in an emergency.
