OSPF is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. OSPF prevents routing loops in multi-area networks by using two methods: area hierarchy and SPF algorithm. Area hierarchy is the concept of dividing a large OSPF network into smaller areas that are connected to a backbone area (area 0). This reduces the amount of routing information that each router has to store and process, and also limits the scope of link-state updates within each area.All areas are required to connect to area 0 either directly or through virtual links2. SPF algorithm is the method that OSPF uses to calculate the shortest path to each destination in the network based on link-state information. The SPF algorithm runs on each router and builds a shortest-path tree that represents the topology of the network from the router's perspective.The SPF algorithm prunes looped paths within an area by choosing only one best path for each destination3.

Route reflection is a BGP feature that allows a router to reflect routes learned from one IBGP peer to another IBGP peer, without requiring a full-mesh IBGP topology. Route reflectors do not change any existing BGP attributes by default when advertising routes, unless explicitly configured to do so. A BGP peer does not require any configuration changes to become a route reflector client, only the route reflector needs to be configured with the client parameter under [edit protocols bgp group group-name neighbor neighbor-address] hierarchy level.

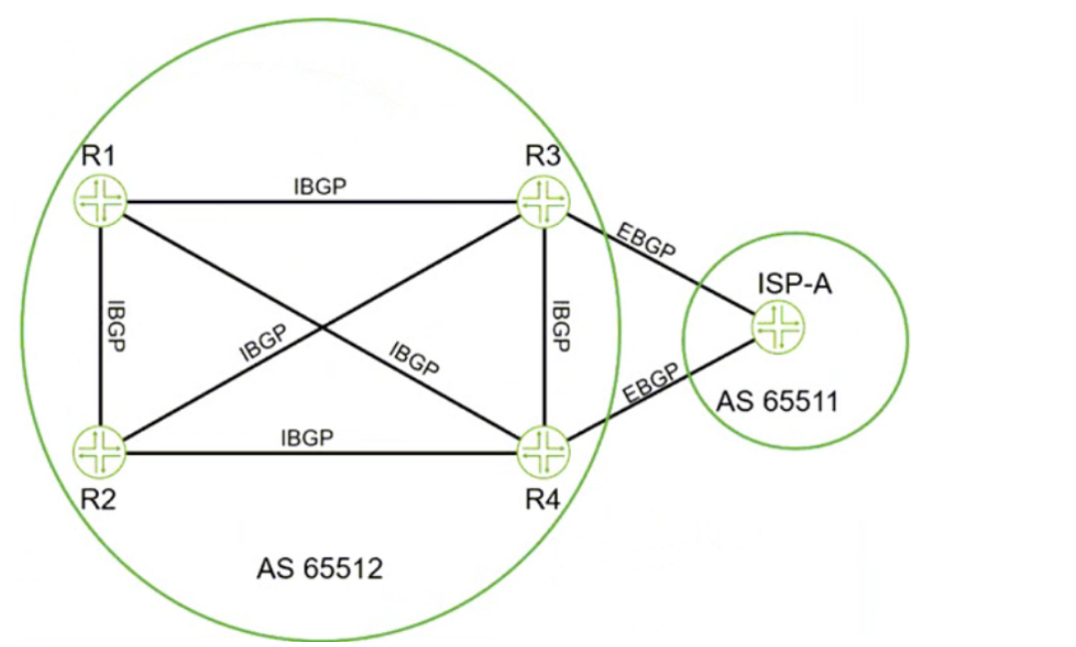

Analyzing the Exhibit

The diagram represents BGP peering between:

AS 65512 (Enterprise Network)

AS 65511 (ISP-A)

R3 and R4 are peering with ISP-A using EBGP.

R1, R2, R3, and R4 are peering within AS 65512 using IBGP.

Understanding BGP Route Behavior

Option A: 'By default, the next-hop value for these routes is not changed by ISP-A before being sent to R3.'

Incorrect!

EBGP behavior: When a BGP route is advertised via EBGP, the next-hop IP is changed to the router's own IP by default.

Since ISP-A is advertising routes via EBGP to R3, the next-hop is changed to ISP-A's IP.

Thus, this statement is incorrect.

Option B: 'The BGP local-preference value that is used by ISP-A is not advertised to R3.'

Correct!

BGP Local Preference (LOCAL_PREF) is an IBGP-only attribute.

Local Preference is NOT shared over EBGP because it is used within an AS to influence route selection.

ISP-A will not send LOCAL_PREF to R3, as R3 is in a different AS.

Thus, this statement is correct.

Option C: 'All BGP attribute values must be removed before receiving the routes.'

Incorrect!

BGP does not remove all attributes when advertising routes. Some attributes are modified (e.g., next-hop, AS-PATH), but others (like MED, community) may be preserved.

Thus, this statement is incorrect.

Option D: 'The next-hop value for these routes is changed by ISP-A before being sent to R3.'

Correct!

As per default EBGP behavior, the next-hop is changed when a route is advertised to an EBGP peer.

This means ISP-A changes the next-hop to its own IP before sending it to R3.

Thus, this statement is correct.

Final Answer:

B. The BGP local-preference value that is used by ISP-A is not advertised to R3. D. The next-hop value for these routes is changed by ISP-A before being sent to R3.

Verification from Juniper Documentation:

Juniper BGP Configuration Guide confirms that LOCAL_PREF is not advertised over EBGP.

RFC 4271 (BGP-4) specifies that next-hop is changed by default when advertising routes via EBGP.

Prefer the route with the lower origin code. Routes learned from an IGP have a lower origin code than those learned from an exterior gateway protocol (EGP), and both have lower origin codes than incomplete routes (routes whose origin is unknown). https://www.juniper.net/documentation/us/en/software/junos/vpn-l2/bgp/topics/concept/routing-protocols-address-representation.html

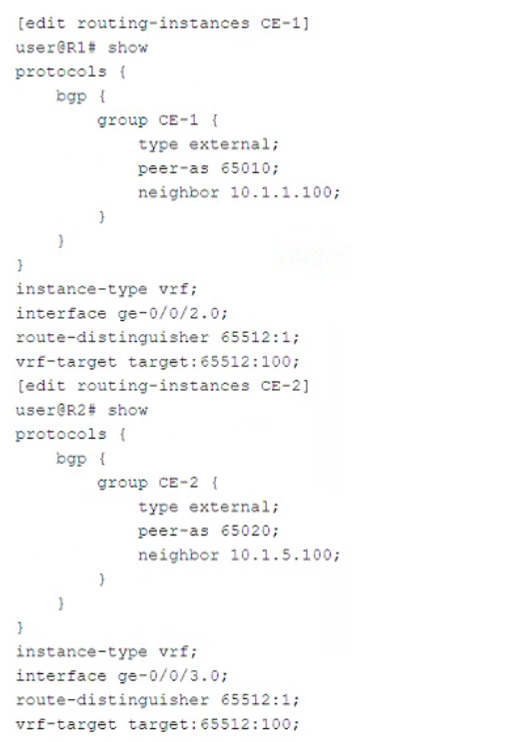

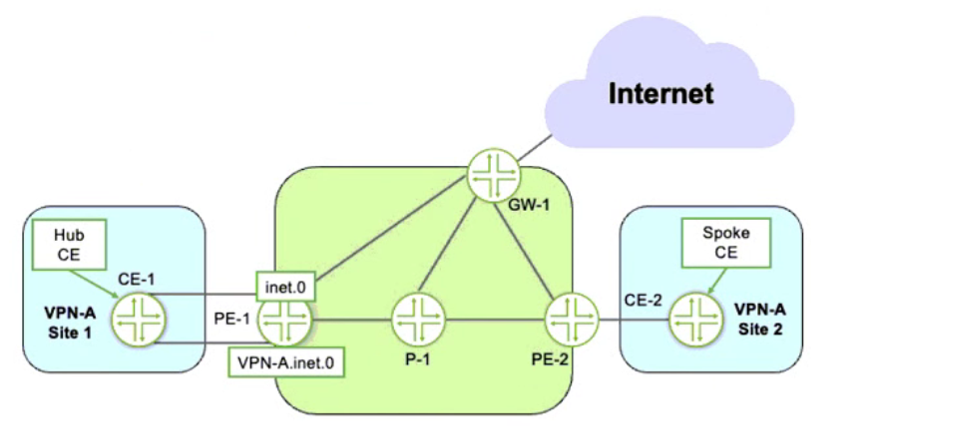

In the exhibit, we see two VRF (Virtual Routing and Forwarding) instances, CE-1 and CE-2, configured on a Juniper router. Each VRF is associated with a route-distinguisher (RD) and a vrf-target value.

Understanding the Role of vrf-target

The vrf-target is used to define Route Targets (RT), which control the import and export of VPN routes in MPLS Layer 3 VPNs (L3VPNs).

If two VRFs share the same RT, they will import each other's routes, allowing communication between them.

In this case, both VRFs have the same vrf-target:

vrf-target target:65512:100;

Since both CE-1 and CE-2 have the same RT (65512:100), they will import and export each other's routes, enabling route sharing between them.

Understanding route-distinguisher (RD)

The RD (Route Distinguisher) only ensures uniqueness of overlapping IP prefixes within the MPLS network.

It does not control route sharing between VRFs.

In the exhibit, both VRFs have the same RD (65512:1), but this does not influence whether they share routes.

Correct Answer Selection

A (Correct): The vrf-target configuration enables route sharing between CE-1 and CE-2 since they have the same RT (65512:100).

B (Incorrect): The vrf-target does the opposite---it allows sharing, not blocking.

C (Incorrect): The route-distinguisher only provides unique route identification, but does not affect route sharing.

D (Incorrect): Again, route-distinguisher has no impact on route sharing.

Reference from Juniper Official Documentation

Juniper Documentation - Junos MPLS VPNs Configuration Guide: 'Route targets (vrf-target) are used to control the import and export of VPN routes between different VRFs. VRFs with the same route target can import and export routes to each other, enabling inter-VRF communication.'

Thus, the correct answer is: A. The vrf-target configuration will allow routes to be shared between CE-1 and CE-2.

IS-IS routers can form Level 1 or Level 2 adjacencies depending on their configuration and network topology. Level 1 routers are intra-area routers that share the same area address with their neighbors. Level 2 routers are inter-area routers that can connect different areas. Level 1-2 routers are both intra-area and inter-area routers that can form adjacencies with any other router.

In the exhibit, R1 and R2 are in different areas (49.0001 and 49.0002), so they cannot form a Level 1 adjacency. However, they can form a Level 2 adjacency if they are both configured as Level 1-2 routers. R1 is already configured as a Level 1-2 router, but R2 is configured as a Level 1 router only, because of the level 1 disable command under the lo0.0 interface. This command disables Level 2 routing on the loopback interface, which is used as the router ID for IS-IS.

Therefore, to establish a Level 1 adjacency between R1 and R2, the level 1 disable command under the R2 protocols isis interface lo0.0 hierarchy must be removed. This will enable Level 2 routing on R2 and allow it to form a Level 2 adjacency with R1.
