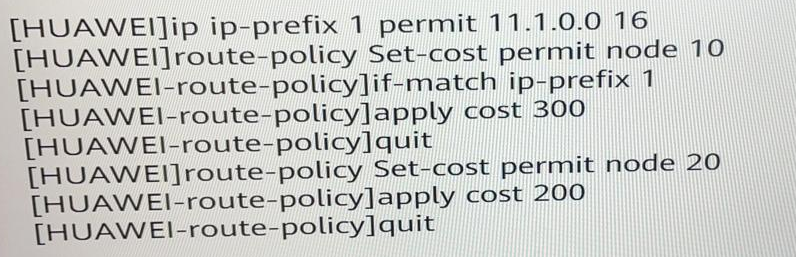

The route-policy configuration specifies that node 10 matches the IP prefix 11.1.0.0/16 and applies a cost of 300 to this route. Once a route matches a node, it is no longer processed by subsequent nodes, making option D incorrect. Option B is also incorrect because only specific matching routes have their costs changed .

Comprehensive and Detailed Step-by-Step

Default OSPF Hello Timer:

The OSPF Hello timer is used to send periodic Hello packets and maintain neighbor relationships.

Default Hello timers:

Broadcast and P2P: 10 seconds

NBMA and P2MP: 30 seconds

Network Types Using 30s Hello Time:

P2MP (C): OSPF sends Hello packets every 30 seconds by default.

NBMA (D): OSPF also uses 30 seconds for NBMA networks.

HCIA-Datacom Study Guide, Chapter: OSPF Network Types

Huawei OSPF Timer Configuration

For first-time configuration of a newly purchased network device, administrators typically use the console port. This direct connection is secure and independent of network configuration, making it suitable for initial setups. Telnet, SNMP, or FTP require prior IP configuration, which is not feasible during the initial setup phase .

OSPF (Open Shortest Path First) mandates that the backbone area (Area 0) serves as the central area for routing information exchange. To avoid inter-area routing loops, routing information is only exchanged between the backbone area and non-backbone areas, not directly between two non-backbone areas. Consequently, each Area Border Router (ABR) must connect to the backbone area to facilitate this routing exchange .

MQC and PBR

MQC (Modular QoS Command-Line Interface): Applied to interfaces for classifying and controlling traffic.

PBR (Policy-Based Routing): Used to influence packet forwarding based on policies rather than traditional routing tables.

Both MQC and PBR can be configured on device interfaces to filter incoming/outgoing packets or control their forwarding paths.

HCIP-Datacom-Core Reference

The use of MQC and PBR on device interfaces is elaborated in the QoS and routing control chapters.

When OSPF routers exchange LSDBs using Database Description (DD) packets, they first establish a master-slave relationship. The router with the larger Router ID becomes the master, setting the MS (Master/Slave) bit in the DD packets. This hierarchical relationship ensures an orderly exchange of routing information .

DIS Election in IS-IS:

In IS-IS, the Designated Intermediate System (DIS) is elected on broadcast networks to reduce the number of LSAs exchanged and maintain the LSDB.

The DIS is elected based on priority:

The router with the highest priority is elected as the DIS.

If priorities are equal, the System ID is used as a tie-breaker, and the router with the highest System ID becomes the DIS.

Given DIS Priorities:

R1: Priority = 10

R2: Priority = 20

R3: Priority = 30

R4: Priority = 40

R4 has the highest DIS priority of 40, which makes it the clear choice for DIS election.

Scenario Details:

Since all devices are started simultaneously, the DIS election process will follow the priorities without requiring a tie-breaker (System ID).

Conclusion:

The device with the highest DIS priority is R4, and it will be elected as the DIS.
