In an Eth-Trunk working in manual mode, multiple physical member links are bundled into one logical interface to provide higher bandwidth and link redundancy. If one of four 1 Gbit/s member links fails, the Eth-Trunk does not go down as long as at least one valid member link remains active. Therefore, statement A is correct. Since one link has failed and three member links remain available, the total available bandwidth becomes 3 Gbit/s, so statement B is also correct.

Statement C is incorrect because the traffic originally hashed to the failed link is not permanently stopped. Instead, after the link failure is detected, traffic is redistributed across the remaining active member links according to the trunk load-balancing mechanism. Statement D is also incorrect because Eth-Trunk provides link-level redundancy. Existing upper-layer sessions such as TCP are not necessarily interrupted and re-established simply because one member link fails. HCIA-Datacom emphasizes that Eth-Trunk improves reliability and bandwidth utilization by allowing traffic to continue across surviving links when a single member fails. This is one of the main advantages of link aggregation in campus and data center switching networks.

In the Huawei command-line interface, the question mark ? provides real-time command help based on the current input. When the output shows <cr>, it means that the command can end at that point by pressing Enter. In other words, there is no additional keyword or parameter required in that position. Therefore, option B is correct.

In the example sysname SW1?, the device interprets SW1 as a complete and valid hostname parameter for the sysname command. Since nothing else is required after the hostname, the CLI displays <cr> to indicate command completion is allowed. This behavior is common in Huawei devices and is important for daily operation and troubleshooting because it helps engineers understand whether a command is complete, whether more arguments are needed, or whether optional parameters are available. Options about incorrect keywords or incomplete commands do not apply here, because the entered command syntax is already valid. Understanding <cr> is a basic but important CLI skill in HCIA-Datacom operations.

In STP, the root bridge is elected based on the lowest bridge ID (BID). A BID is composed of the bridge priority and the MAC address of the switch. The device with the smallest BID becomes the root bridge. Therefore, if an administrator wants SW2 to become the root bridge, the most direct and correct method is to configure a lower system priority on SW2, making option C correct.

Option A is incorrect because port priority affects port-role selection in some tie-breaking scenarios, but it does not determine root-bridge election. Option B is the opposite of what is required, because a higher system priority makes the BID larger and reduces the chance of being elected as root. Option D is also incorrect because root path cost is used by non-root bridges to select the best path to the existing root bridge; it does not determine which switch becomes the root bridge in the first place. HCIA-Datacom stresses that bridge priority tuning is the standard administrative method used to control root bridge placement in campus networks for stable and predictable Layer 2 topology design.

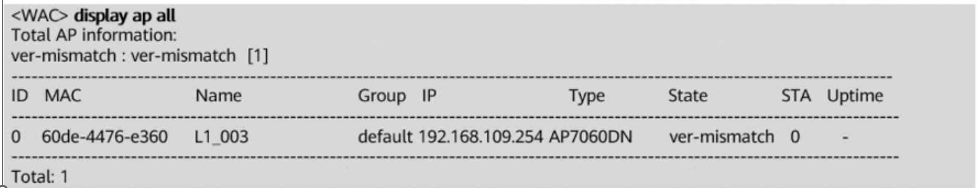

The correct answer is C. In the command output, the AP state is shown as ver-mismatch. This state directly indicates a version mismatch between the AP and the WAC. In Huawei WLAN deployment, a Fit AP must use a software version that is compatible with the WAC version. If the versions do not match, the AP may be discovered by the WAC and appear in the AP list, but it cannot successfully complete the online process.

Option A is incorrect because blacklist-related failures are displayed with blacklist-related status information, not ver-mismatch. Option B is also incorrect because authentication failures normally generate authentication-related fault indications. Option D is incorrect because configuration initialization failure would not be identified by the specific ver-mismatch state.

HCIA-Datacom troubleshooting knowledge emphasizes reading AP online states carefully. Common causes of AP online failure include IP address acquisition failure, CAPWAP tunnel establishment failure, insufficient licenses, authentication problems, and version mismatch. When the state explicitly shows ver-mismatch, the troubleshooting direction is clear: check AP and WAC software compatibility and upgrade or align the software version as needed.

This statement is true. From the routing table, the entry 10.0.12.0/24 Direct ... NextHop 10.0.12.1 Interface Vlanif2 indicates that the network 10.0.12.0/24 is directly connected through Vlanif2, and the local interface address associated with that directly connected network is 10.0.12.1.

This conclusion is further supported by the host route 10.0.12.1/32 Direct ... 127.0.0.1 Vlanif2, which represents the local IP address of the interface itself. On Huawei devices, when an IP address is configured on an interface, the routing table commonly generates a direct route to the connected network, a host route to the interface IP itself, and sometimes a host route to the broadcast address where applicable in IPv4. Therefore, from the displayed entries, it can indeed be inferred that VLANIF 2 has the IP address 10.0.12.1/24. HCIA-Datacom uses these routing-table characteristics to help learners identify connected interfaces, local addresses, and route origins during troubleshooting and route analysis on routers and Layer 3 switches.
