An engineer is redeploying a blade chassis, and is logged into the CMC web interface. The engineer has configured the iDRACs for the blade servers.
When the engineer tries to log into one of the iDRACs, the connection fails. The engineer can ping the CMC from the engineer's workstation but can NOT ping the iDRACs. The engineer tries to ping the iDRAC IP from the CMC itself using the diagnostic tool, but that also fails.
Which two tasks should the engineer perform?
An engineer is inventorying a newly arrived M1000e shipment that will be used for a virtual environment. The inventory includes the following:
Blade Server Enclosure, M1000E, PowerEdge -- qty 1
Power Supplies 2700W High Efficiency -- qty 3
Redundant Chassis Management Controller- qty 1
Power Cords, QTY3, 8FT, C19/C20 for M1000E Server Blade Chassis -- qty 2
Cat5e Patch Cable 1000Mb -- qty 2
Dell Force10 MXL 10/40 GbE DCB Blade Switch -- qty 2
QSFP+ 40GbE Module, 2 port, Hot Swap -- qty2
SFP+ 10GbE Module, 4 port, Hot Swap -- qty 2
SFP+ to SFP+, 10GbE, Copper Twinax Direct Attach cable, 3 Meters -- qty 8
The chassis power will be set for grid redundancy. The top of rack switches are 10Gb and the management switch is 1000 Base-T. What is missing from this inventory that is needed to accomplish this task?

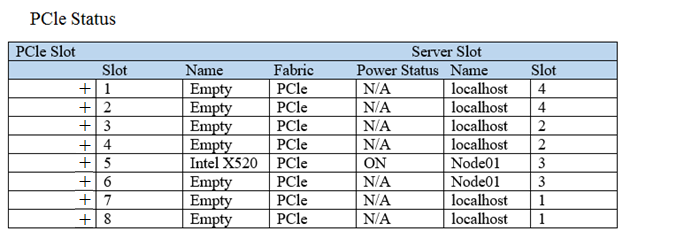

Refer to the exhibit.
An engineer has installed a PCle NIC into an FX2 chassis. When the engineer powers up the blade, the NIC is not seen. Without physically moving the PCle NIC or server, how should the engineer make sure that the NIC maps to the server?
