What is the major difference between the two possible Cisco lM and Presence high-availability modes?
Balanced mode provides user load balancing and user failover in the event of an outage. Active/standby mode provides an always on standby node in the event of an outage, but it does not provide load balancing.
Here is a more detailed explanation of the two modes:
Balanced mode:In balanced mode, the IM and Presence Service nodes are configured to work together to provide high availability. The nodes are configured in a redundancy group, and the system automatically balances the load of users across the nodes in the group. If one of the nodes fails, the system automatically fails over the users to the other nodes in the group.
Active/standby mode:In active/standby mode, one of the IM and Presence Service nodes is designated as the active node, and the other nodes are designated as standby nodes. The active node handles all of the user traffic, and the standby nodes are only used if the active node fails. If the active node fails, the system automatically fails over to one of the standby nodes.
Refer to the exhibit.
https://i.postimg.cc/C57TkczG/image.png
A call is falling to establish between two SIP Devices The called device answers with these SOP Which SOP parameter causes issue?
The RTP port is used to send and receive media packets during a call. If the RTP port is set to 0, the called device will not be able to send or receive media packets, and the call will fail.
The other options are not correct because:
A) The calling device did not offer a ptime value: The ptime value is used to specify the amount of time between each media packet. If the calling device does not offer a ptime value, the called device will use the default value of 20 milliseconds.
B) The media stream is set to sendonly: The media stream is set to sendonly when the called device is only able to send media packets, and not receive them. This is not a problem, and the call will still succeed.
C) The payload for G.711ulaw must be 18: The payload for G.711ulaw is the type of media packet that is used. The payload must be set to 18 for G.711ulaw, but this is not a problem, and the call will still succeed.
Which wildcard must an engineer configure to match a whole domain in SIP route patterns?
The asterisk (*) wildcard is used to match any sequence of characters, including an empty sequence. Therefore, it can be used to match any domain name in a SIP Route Pattern.
The other options are not correct because:
B) @: The @ symbol is used to separate the user name from the domain name in an email address.
C) !: The ! symbol is used to negate a character class.
D) .: The . symbol is used to match any single character.

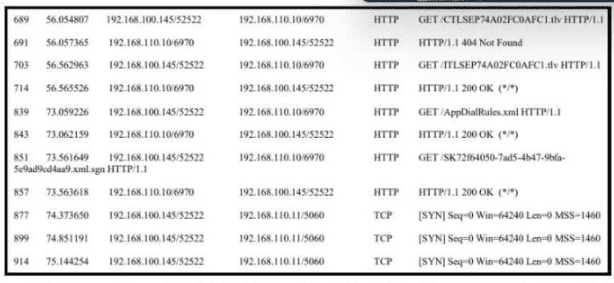

An engineer configures a new phone in Cisco UCM The phone boots and gets IP when it connects to the network, however the phone fails to register With CISCO UCM, The engineer observes that the phone has a status Rejected In CISCO UCM
What must be verified first 'Mien troubleshooting the issue?
The other options are not the first things that must be verified when troubleshooting the issue:
Which two functions are provided by Cisco Expressway Series? (Choose two.)
The Cisco Expressway Series provides the following functions:
Voice and video transcoding
Interworking of SIP and H.323
Firewall traversal
Session border controller (SBC) functionality
Endpoint registration
Call admission control (CAC)
Quality of service (QoS)
Security
The Cisco Expressway Series does not provide voice and video conferencing or intercluster extension mobility.
