Cisco 350-401 Exam - Topic 3 Question 52 Discussion

Simulation 02Configure HSRP between DISTRO-SW1 and DISTRO-SW2 on VLAN 100 for hosts connected to ACCESS-SW1 to achieve these goals:1. Configure group number 1 using the virtual IP address of 192.168.1.1/24.2. Configure DlSTRO-SW1 as the active router using a priority value of 110 and DISTRO-SW2 as the standby router.3. Ensure that DISTRO-SW2 will take over the active role when DISTRO-SW1 goes down, and when DISTRO-SW1 recovers, it automatically resumes the active role.DISTRO-SW2
A) Explanation: DISTRO-SW1 Sw1 int vlan 100 standby 1 ip 192.168.1.1 standby 1 priority 110 standby 1 preempt copy run start DISTRO-SW2 SW2 int vlan 100 standby 1 ip 192.168.1.1 standby 1 preempt copy run start OR MINOR CHANGE IN ABOVE HSRP SCENERIO Check the IP address 1.254 check the minimum 15 seconds solution get change. DISTRO-SW1 Sw1 int vlan 100 glbp 1 ip 192.168.1.254 glbp 1 priority 110 glbp 1 timers 5 15 glbp 1 preempt copy run start DISTRO-SW2 SW2 int vlan 100 glbp 1 ip 192.168.1.254 glbp 1 timers 5 15 glbp 1 preempt copy run start

Cisco 350-401 Exam - Topic 3 Question 52 Discussion

Actual exam question for Cisco's 350-401 exam
Question #: 52
Topic #: 3
[All 350-401 Questions]

Simulation 02

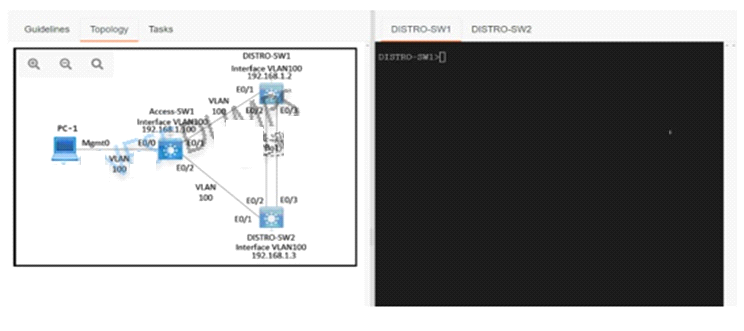

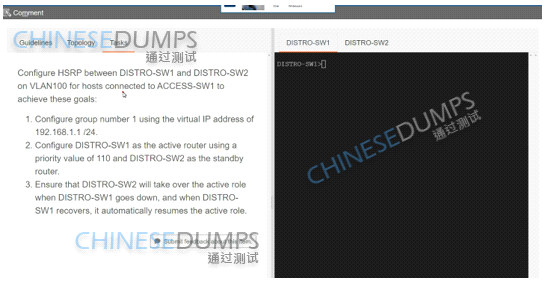

Configure HSRP between DISTRO-SW1 and DISTRO-SW2 on VLAN 100 for hosts connected to ACCESS-SW1 to achieve these goals:

1. Configure group number 1 using the virtual IP address of 192.168.1.1/24.

2. Configure DlSTRO-SW1 as the active router using a priority value of 110 and DISTRO-SW2 as the standby router.

3. Ensure that DISTRO-SW2 will take over the active role when DISTRO-SW1 goes down, and when DISTRO-SW1 recovers, it automatically resumes the active role.

DISTRO-SW2

Show Suggested Answer Hide Answer
Suggested Answer: A

by Becky at Jun 19, 2022, 02:29 PM

Limited Time Offer

25%

Off

Get Premium 350-401 Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

0/2000 characters
Submit Cancel
Eric
10 months ago
Is it really that simple? I feel like there's more to it.
upvoted 0 times
...
Kenny
10 months ago
Sounds good, but what if both switches fail at the same time?
upvoted 0 times
...
Sherill
10 months ago
Wait, why use GLBP instead of HSRP? Seems unnecessary.
upvoted 0 times
...
Shad
11 months ago
Totally agree, DISTRO-SW1 should be active with priority 110.
upvoted 0 times
...
Luis
11 months ago
HSRP group 1 with IP 192.168.1.1, got it!
upvoted 0 times
...
Malcolm
11 months ago
I hope I don't mix up HSRP with GLBP in the commands. I remember the standby commands but need to double-check the syntax for preemption.
upvoted 0 times
...
Frederic
11 months ago
This question feels similar to the practice one we did on HSRP configurations. I think we had to ensure that the active router takes back control after recovery, right?
upvoted 0 times
...
Pearlene
11 months ago
I'm a bit unsure about the priority settings. I know DISTRO-SW1 should be 110, but what happens if I forget to enable preemption on DISTRO-SW2?
upvoted 0 times
...
Ming
11 months ago
I think I remember that we need to set the standby IP on both switches to the same virtual IP, which is 192.168.1.1.
upvoted 0 times
...
Armanda
11 months ago
I've seen questions like this before, and the key is to focus on the audit committee's role in maintaining the internal audit's independence from management. I'm leaning towards option B as the best answer.
upvoted 0 times
...
Deonna
11 months ago
Okay, let's see. The BAIT folder sounds like it could be related to cybersecurity, so I'm guessing it might contain files that are used to detect or analyze potential threats. I'll try to reason through the options.
upvoted 0 times
...
