Cisco 200-301 Exam - Topic 7 Question 63 Discussion

Refer to the exhibit.Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.
A) Explanation: Answer as below configuration: conf t R1(config)#ntp master 1 R2(config)#ntp server 10.1.2.1 Exit Router#clock set 00:00:00 jan 1 2019 ip dhcp pool TEST network 10.1.3.0 255.255.255.0 ip dhcp exluded-address 10.1.3.1 10.1.3.10 R3(config)#int e0/3 R3(config)#int e0/2 ip address dhcp no shut crypto key generate RSA 1024 Copy run start

Cisco 200-301 Exam - Topic 7 Question 63 Discussion

Actual exam question for Cisco's 200-301 exam
Question #: 63
Topic #: 7
[All 200-301 Questions]

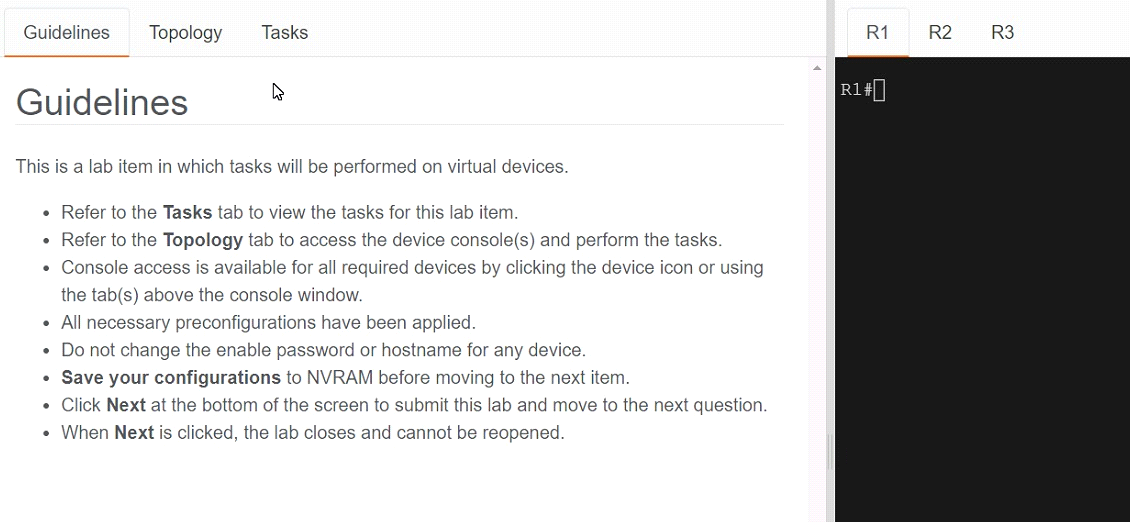

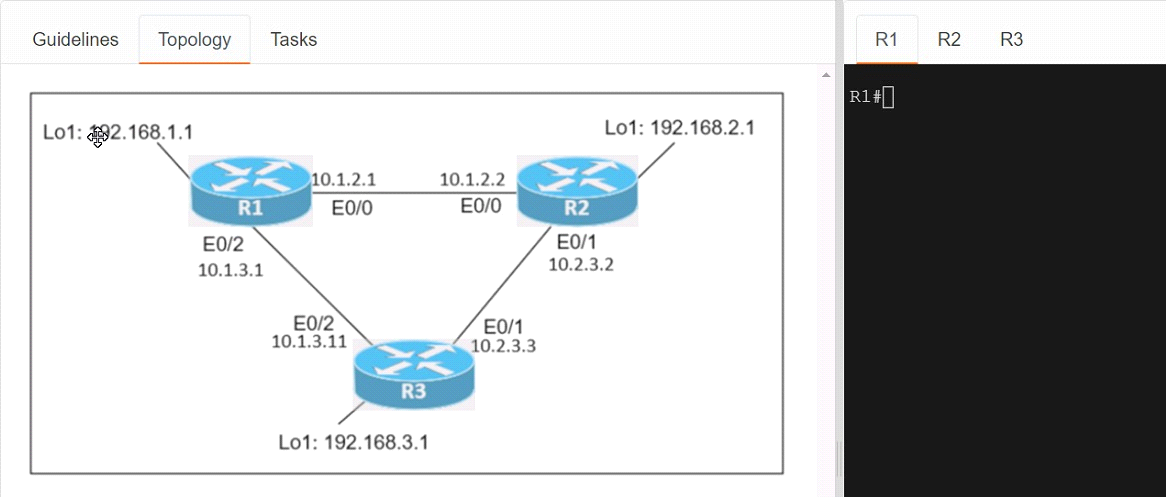

Refer to the exhibit.

Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.

1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.

2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.

3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.

4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.

Show Suggested Answer Hide Answer
Suggested Answer: A

by Marge at Feb 05, 2023, 09:54 AM

Limited Time Offer

25%

Off

Get Premium 200-301 Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

0/2000 characters
Submit Cancel
Raul
10 months ago
I thought DHCP exclusions were done differently, not like this!
upvoted 0 times
...
Eladia
10 months ago
NTP config looks solid, but why midnight?
upvoted 0 times
...
Daniela
10 months ago
Wait, are we really using a standard access list for NAT?
upvoted 0 times
...
Mirta
11 months ago
Totally agree, that’s the right setup!
upvoted 0 times
...
Jessenia
11 months ago
R2 needs to handle NAT for R3 traffic to R1.
upvoted 0 times
...
Janine
11 months ago
SSH setup seems straightforward, but I hope I remember the RSA key generation steps correctly.
upvoted 0 times
...
Julieta
11 months ago
For the DHCP part, I know we need to exclude addresses, but I can't recall the exact command for that.
upvoted 0 times
...
Olive
11 months ago
I practiced a similar question where we had to set up NTP, but I’m a bit confused about the master and client roles.
upvoted 0 times
...
Stevie
11 months ago
I think I remember the NAT configuration, but I'm not entirely sure about the access list syntax for that.
upvoted 0 times
...
