Cisco 200-301 Exam - Topic 6 Question 62 Discussion

Refer to the exhibit.IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:1. Configure reachability to the switch SW1 LAN subnet in router R2.2. Configure default reachability to the Internet subnet in router R1.3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.
A) Explanation: Answer as below configuration: On R2: Enable Conf t Ip route 192.168.1.0 255.255.255.0 10.10.31.1 On R1: Enable Conf t Ip route 0.0.0.0 0.0.0.0 10.10.13.3 On R2 Ip route 172.20.20.128 255.255.255.128 e0/2 Ip route 172.20.20.128 255.255.255.128 e0/1 On R1 Ip route 192.168.0.0 255.255.255.0 e0/1 Ip route 192.168.0.0 255.255.255.0 10.10.12.2 3 Save all configurations after every router from anyone of these command Do wr Or Copy run start

Cisco 200-301 Exam - Topic 6 Question 62 Discussion

Actual exam question for Cisco's 200-301 exam
Question #: 62
Topic #: 6
[All 200-301 Questions]

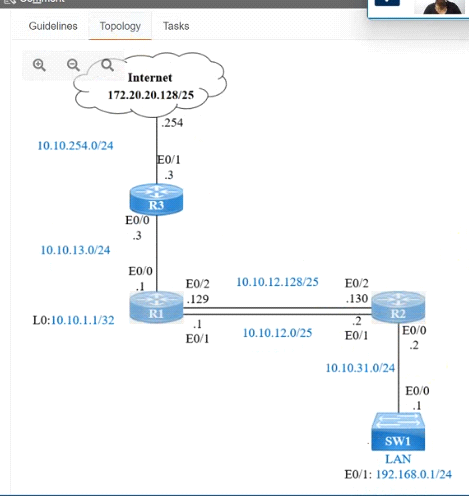

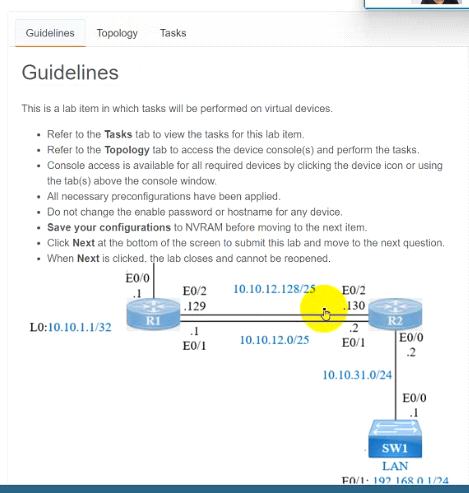

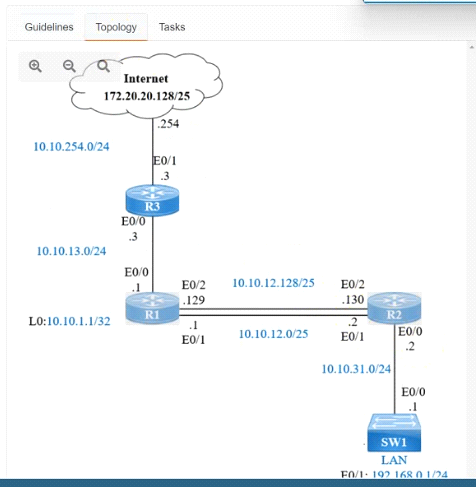

Refer to the exhibit.

IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:

1. Configure reachability to the switch SW1 LAN subnet in router R2.

2. Configure default reachability to the Internet subnet in router R1.

3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.

4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.

Show Suggested Answer Hide Answer
Suggested Answer: A

by Solange at Jan 06, 2023, 10:55 PM

Limited Time Offer

25%

Off

Get Premium 200-301 Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

0/2000 characters
Submit Cancel
Lavonda
10 months ago
Surprised to see the redundancy setup like this!
upvoted 0 times
...
Amina
10 months ago
Just a reminder, no default route on R2!
upvoted 0 times
...
Willard
10 months ago
Wait, why are we using a floating route on R1? Seems off.
upvoted 0 times
...
Beatriz
11 months ago
Totally agree, that’s the right approach!
upvoted 0 times
...
Elza
11 months ago
R2 needs a static route to 192.168.0.0/24.
upvoted 0 times
...
Kallie
11 months ago
I’m pretty confident about configuring R2 for the LAN subnet, but I’m not entirely sure about the default route setup on R1.
upvoted 0 times
...
Talia
11 months ago
I think I need to double-check the administrative distance for the floating route. Was it 1 for the primary and 200 for the backup?
upvoted 0 times
...
Cherrie
11 months ago
This question feels similar to the lab we did on OSPF and static routes, but I’m a bit confused about the redundancy part.
upvoted 0 times
...
Mary
11 months ago
I remember we practiced static routes, but I’m not sure about the exact syntax for the floating route on R1.
upvoted 0 times
...
