Cisco 200-301 Exam - Topic 21 Question 55 Discussion

Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.2. Configure an IPv4 default route on router R2 destined for router R4.3. Configure an IPv6 default router on router R2 destined for router R4.
A) Explanation: Answer as below configuration: 1.- on R3 config terminal ip route 192.168.1.1 255.255.255.255 209.165.200.229 end copy running start 2.- on R2 config terminal ip route 0.0.0.0 0.0.0.0 209.165.202.130 end copy running start 3.- on R2 config terminal ipv6 route ::/0 2001:db8:abcd::2 end copy running start

Cisco 200-301 Exam - Topic 21 Question 55 Discussion

Actual exam question for Cisco's 200-301 exam
Question #: 55
Topic #: 21
[All 200-301 Questions]

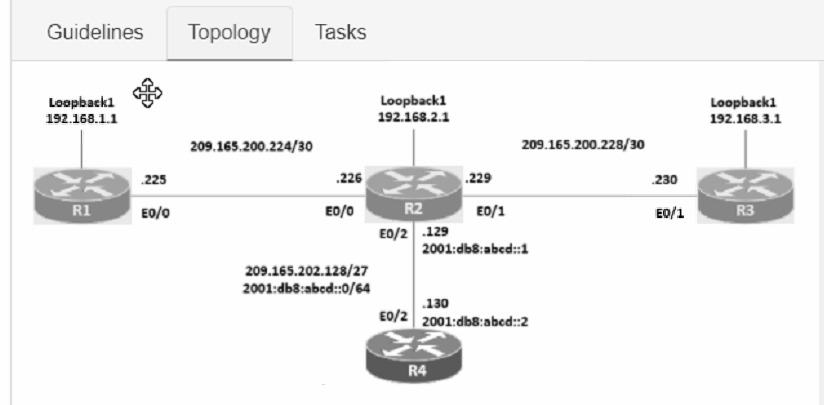

Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.

1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.

2. Configure an IPv4 default route on router R2 destined for router R4.

3. Configure an IPv6 default router on router R2 destined for router R4.

Show Suggested Answer Hide Answer
Suggested Answer: A

by Xuan at Aug 21, 2022, 12:39 PM

Limited Time Offer

25%

Off

Get Premium 200-301 Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

0/2000 characters
Submit Cancel
Pamella
10 months ago
Not sure about that source IP, is it correct?
upvoted 0 times
...
Daniela
10 months ago
Default route on R2 looks good, nice and simple!
upvoted 0 times
...
Pauline
10 months ago
Wait, why are we using IPv6 on R2? Seems odd.
upvoted 0 times
...
Hermila
11 months ago
Totally agree, static routes are the way to go here.
upvoted 0 times
...
Twanna
11 months ago
R3 to R1 loopback needs a host route.
upvoted 0 times
...
Gilberto
11 months ago
The commands seem familiar, especially the default route on R2, but I need to double-check the IPv6 part to make sure I have the right address format.
upvoted 0 times
...
Hannah
11 months ago
I practiced a similar question where we had to set up static routes, but I can't recall if the next-hop IP for R3 is correct.
upvoted 0 times
...
Gwen
11 months ago
I think the default route on R2 should point to R4, but I might confuse the IPv4 and IPv6 syntax.
upvoted 0 times
...
Carmen
11 months ago
I remember practicing static routing, but I'm not entirely sure about the exact commands for the host route from R3 to R1's loopback.
upvoted 0 times
...
Ciara
11 months ago
I'm pretty confident the answer is B, certified public accounting firm. That's the standard practice for local government audits as far as I know. I'll mark that one and move on.
upvoted 0 times
...
Wenona
11 months ago
Definitely option A - we need to make sure the Learn mode is only capturing legitimate traffic to the web app, not any malicious or unwanted requests.
upvoted 0 times
...
Lisbeth
11 months ago
Okay, I've got an idea. The question is asking about a business architecture perspective that augments the capability-to-application mapping process to further application portfolio consolidation. Based on that, I'm thinking the answer might be Strategy, since that would provide a higher-level view to guide the consolidation efforts.
upvoted 0 times
...
Salome
11 months ago
I think the answer involves a contract and an L4-L7 device, but I'm not sure if it should be "GoTo" or "GoThrough."
upvoted 0 times
...
Salley
11 months ago
This is a good test of my knowledge. I'll methodically go through the options and select the three that I'm confident are the correct functions of the Data Creator role.
upvoted 0 times
...
