In the given UML package diagram fragment, various elements are listed with stereotypes indicating their nature (class, interface). Stereotypes are used in UML to extend the vocabulary of UML in order to create new kinds of building blocks. They are typically enclosed in guillemets ( ).

The last element, 'six', does not have a stereotype indicating whether it's a class, interface, or some other kind of element. This lack of a stereotype leads to ambiguity about the nature of 'six'. Therefore, the fragment is considered invalid due to this omission.

All the other options do not constitute an error in the UML fragment: A) A list of elements is allowed in a package body. B) Visibility is not required for every element, especially within package diagrams. C) Interfaces are allowed in packages. D) Private elements are allowed in a package. E) Protected elements are also allowed in a package.

Therefore, the correct answer is:

F . Element six is missing its stereotype.

Option C shows a UML diagram where a class (One) appears to have an aggregation relationship with itself. In UML, an aggregation is a special type of association that represents a whole-part relationship between the aggregate (whole) and a component part. However, it does not make sense for a class to aggregate itself; such a relationship implies that instances of the same class are parts of each other, which is conceptually invalid.

Let's consider the other options: A) This diagram shows a class contained within another, which is a valid use of nesting classes. B) This diagram shows a composition relationship, which is a form of aggregation with a stronger lifecycle dependency between the whole and the part. This is a valid relationship in UML. D) This diagram shows a class containing two nested classes, one of which contains another nested class. This is also a valid representation of nested classes in UML.

Therefore, the correct answer is:

C . Option C

Here's a breakdown of why option A is correct and why the other options are not:

Activity Parameter Nodes:

Object Nodes:Activity Parameter Nodes are specialized Object Nodes in UML activity diagrams. They provide a mechanism to pass inputs to an activity or receive outputs from an activity.

Parameters:They represent parameters connected to the activity.

Analysis of Other Options

B . It is used to model a data store:Data stores are distinct modeling elements, often used in combination with Activity Parameter Nodes. An Activity Parameter Node itself does not represent a persistent data store but rather an entry or exit point for data in the flow of an activity.

C . It is equivalent to an action input or output pin:While similar in concept, Activity Parameter Nodes are a distinct modeling element with additional properties. Action input/output pins are part of the structured actions within an Activity. Activity Parameter Nodes function on the boundary of the Activity itself.

D . It can hold only input parameters, not output parameters:Activity Parameter Nodes can represent both input and output parameters. The direction (in, out, inout) is a property of the Parameter associated with the node.

Reference

UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Object Nodes, Activity Parameter Nodes and Parameters.https://www.omg.org/spec/UML/2.5.1

Modeling as part of the software analysis and design process offers several advantages, one of the primary being the reduction in the risk of inconsistent or improper implementations. By using models, developers can visualize the structure and behavior of the system before actual coding begins, allowing for the identification and correction of potential issues in the early stages of development. This practice helps ensure that all components of the software work together as intended, reducing the likelihood of bugs and inconsistencies that could arise if parts of the system were developed in isolation. UML, as a standardized modeling language, provides a coherent and universally understood set of diagrams and symbols, which facilitates clear communication among team members and stakeholders, further mitigating the risk of misunderstandings that could lead to improper implementations.

To represent an instance of a class in a UML Object Diagram, the standard notation is to specify the instance name followed by a colon and the class name, and then list the attribute values within the compartment.

The class definition for Company specifies that there is one attribute, name, of type String.

An instance of Company where the name attribute has the value 'OMG' would be shown as follows:

InstanceName : ClassName attributeName = attributeValue

In the provided options, Option D correctly represents an instance of the Company class with the name attribute set to 'OMG'. The name of the instance is not specified, which is allowed in UML when the instance name is not important or is understood from the context.

Thus, the correct answer is:

D . Option D

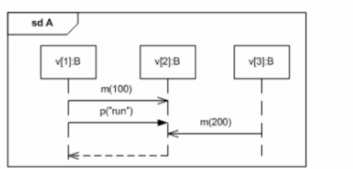

The diagram shown is a UML Sequence Diagram, which is used to depict the interaction and order of messages between objects.

In the given diagram, we can see two occurrences of the message 'm' with different parameters (100 and 200), and one occurrence of the message 'p' with the parameter 'run'.

To determine the minimum number of occurrences that must happen before the reception of 'm(200)', we look at the order of messages:

The message 'm(100)' must occur.

The message 'p('run')' must occur after 'm(100)' and before 'm(200)'.

These two occurrences are the minimum necessary before 'm(200)' can be received by the object. The dashed line represents a return message, which does not count as an occurrence for this purpose.

Therefore, the correct answer is:

B . 2

In a UML system, the state machine associated with an object becomes active and ready to process events as soon as the object's initialization process is complete. Here's why:

Object Creation and State Machines:When an object is created, its associated state machine is instantiated along with it. This means the state machine's structural elements (states, transitions, etc.) are established.

Initialization and the Initial State:During the object's initialization phase, essential attributes and relationships might be set up, and the state machine enters its designated initial state.

Event Readiness:Once initialization is complete, the object and its state machine are considered 'operational' and can respond to events as defined by the state machine's logic.

Why Other Options are Incorrect:

A . by the time the last state ends:State machines often don't have a designated 'last' state. Their execution is based on events and can continue indefinitely. Additionally, a state machine can be ready to handle events long before ending.

B . immediately after the sequence diagrams start:Sequence diagrams illustrate interactions between objects, but they don't dictate the exact timing of object creation or state machine readiness in the overall system.

D . when all objects in the system are ready to receive events:While system-wide coordination might be necessary, an individual object's state machine readiness is dependent on its own initialization, not on the state of every other object.

UML Specification (Superstructure) Version 2.5.1: Specifically, sections covering state machines (https://www.omg.org/spec/UML/2.5.1).

Practical guides to UML and object-oriented modeling often discuss object creation and state machine lifecycles.

Generalization in UML is a modeling relationship that connects a general classifier (like a class) to a more specific classifier. It is akin to an 'is a' relationship where the specialized element (subclass) inherits features from the general element (superclass), thus allowing instances of the subclass to substitute for instances of the superclass. For example, if 'Bird' is a superclass and 'Eagle' is a subclass, an instance of 'Eagle' can substitute for an instance of 'Bird'. This relationship is fundamental in object-oriented modeling for representing inheritance. According to the UML 2.5 specification, generalization allows a subclass to inherit part or all of the structure and behavior of a superclass.
