Authentic OMG OMG-OCSMP-MBI300 Exam Dumps

Question No: 1

MultipleChoice

Choose the correct answer.

Given the following diagram fragment:

What does the multiplicity at the actor end mean?

Options

AAt most two Initiator actor instances can perform the use case

BTwo Initiator actor instances are required to trigger the use case

CTwo Initiator actor instances are required to participate in the use case.

DMultiplicities carry no meaning on use case diagrams

Question No: 2

MultipleChoice

Choose the correct answer

Which statement is true about the read only keyword when it appears next to a property?

Options

AIt states that the corresponding property is provided for reading purposes only

BIt specifies that the corresponding property cannot be redefined

CIt specifies that the value of the corresponding property cannot change during the lifetime of its owner.

DIt specifies that the value of the corresponding property can be changed by its owner, but can only be read by other blocks

Question No: 3

MultipleChoice

Choose the correct answer.

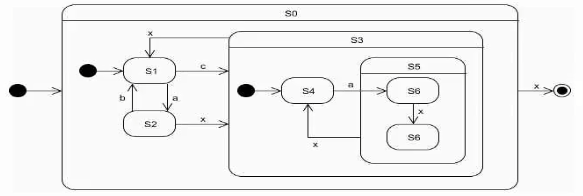

Given the following statement machine, and assuming that it starts from initialization:

What is the shortest event sequence that will place this state machine in its final state?

Options

Aa, b, x

Bc, a, x

Cc, a, x, x

Da, b. c, x

Ea, b, c, a, x, x

Question No: 4

MultipleChoice

Choose the correct answer

A has three inputs I 1. I 2 and 13 and one output O, I1, I2. I3 and O are all of the same type A requires I1 or I2 to execute but I1 and I2 are mutually exclusive. I3 must be present tor A to begin.

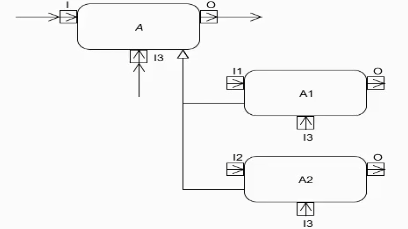

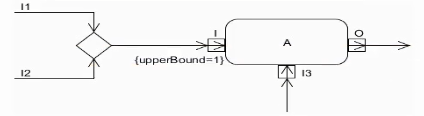

Which activity diagram fragment correctly shows A with its three inputs and one output?

A)

B)

C)

D)

E)

Options

AOption A

BOption B

COption C

DOption D

EOption E

Question No: 5

MultipleChoice

Choose the correct answer.

Given the following state machine fragment.

if it starts in F-State and then the event evB is received, what is the subsequent state?

Options

AD-State

BE-State

CF-State

DG-Stale

ENone: the diagram is ill-formed

Question No: 6

MultipleChoice

Choose the correct answer.

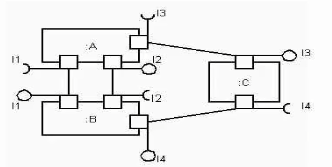

Given the following ibd fragment:

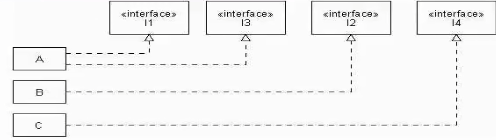

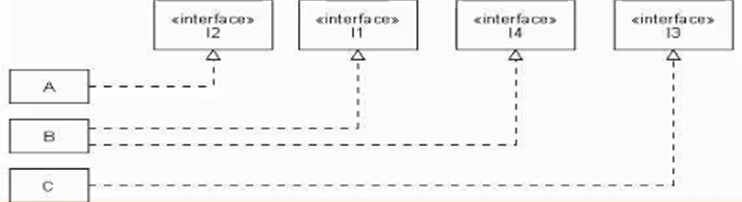

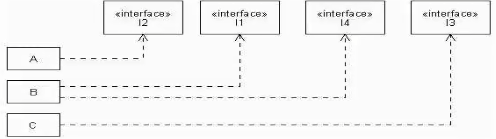

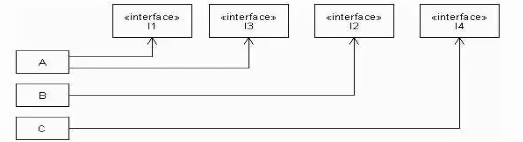

Select the bdd fragment that corresponds

A)

B)

C)

D)

Options

AOption A

BOption B

COption C

DOption D

Question No: 7

MultipleChoice

Choose the correct answer

A sequence diagram depicts the beginning of a user's session with a piece of interactive software . The diagram must show that the --Software Session is created by some activity of the .User.

Which sequence diagram fragment expresses this?

A)
