Discuss Nokia 4A0-C02 Exam Topic 11 Question 19

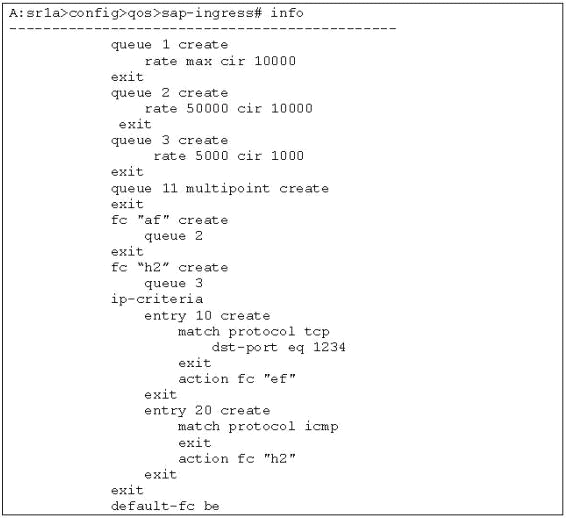

Click the exhibit button below. A network operator has configured the SAP-ingress policy below. Ping traffic is expected in queue 3. However, the network operator notices that all traffic is placed in queue 1. What is the most probable reason for this?

AThe default forwarding class for all traffic, including ICMP, is BE, which is placed in queue 1.

BThe SAP has been shut down.

CThe IP-match criteria has been misconfigured for ICMP traffic.

DQueue 3 has no rate or CIR configured and thus cannot hold any packets.

EThe SAP-ingress policy has not been applied to the SAP.

Suggested Answer: E

Get Premium 4A0-C02 Questions as Interactive Web-Based Practice Test or PDF Real Exam Format Detailed Explanations Instant Access Get Your Practice Test

12 comments · newest first

Ashton 12 months ago

I thought the SAP-ingress policy had to be applied first, so maybe E?

Caitlin 12 months ago

D is interesting too, but I doubt queue 3 is completely empty.

Luis 12 months ago

Wait, could it be C? Misconfigured IP-match sounds plausible.

Mireya 1 year ago

Totally agree, A makes the most sense here.

Lawrence 1 year ago

I think it's A. Default forwarding class usually sends ICMP to queue 1.

Sage 1 year ago

I feel like queue configurations matter a lot, but I can't recall if having no rate set for queue 3 would prevent it from holding packets.

Caprice 1 year ago

I practiced a similar question where the SAP wasn't applied correctly, and that caused issues. Could that be what's happening here?

Kaitlyn 1 year ago

I'm not entirely sure, but I think if the IP-match criteria is wrong, it could definitely cause the traffic to end up in the wrong queue.

Elin 1 year ago

I remember something about default forwarding classes; could it be that ICMP is just being treated as best effort and going to queue 1?

Venita 1 year ago

Hmm, this is a tricky one. I think backlog refinement and program increment planning are the two team-level events, but I'm not totally confident.

Dominga 1 year ago

I've got a good feeling about option B. Inserting the watermark image through the Headers & Footers seems like the most logical solution to me.

Audra 1 year ago

I'm pretty confident that option B is the right answer here. Redundant controllers in the least restrictive regulatory domain seems like the best way to ensure the highest number of channels.

Nokia 4A0-C02 Exam - Topic 11 Question 19 Discussion
