The Input/Output Module (IOM) is responsible for performing the longest prefix match (LPM) lookup on packets that arrive at the physical interfaces. The IOM performs this function by examining the destination IP address of incoming packets and using the routing table to determine the best match.

In IPv6, consecutive sections of zeros can be abbreviated with a double colon (::) once in an address. Also, leading zeros in each hextet (group of four hexadecimal digits) can be removed.

The original address is 2001:0da8:0000:0000:0024:0000:4ab9:0300.

Removing leading zeros and applying the abbreviation:

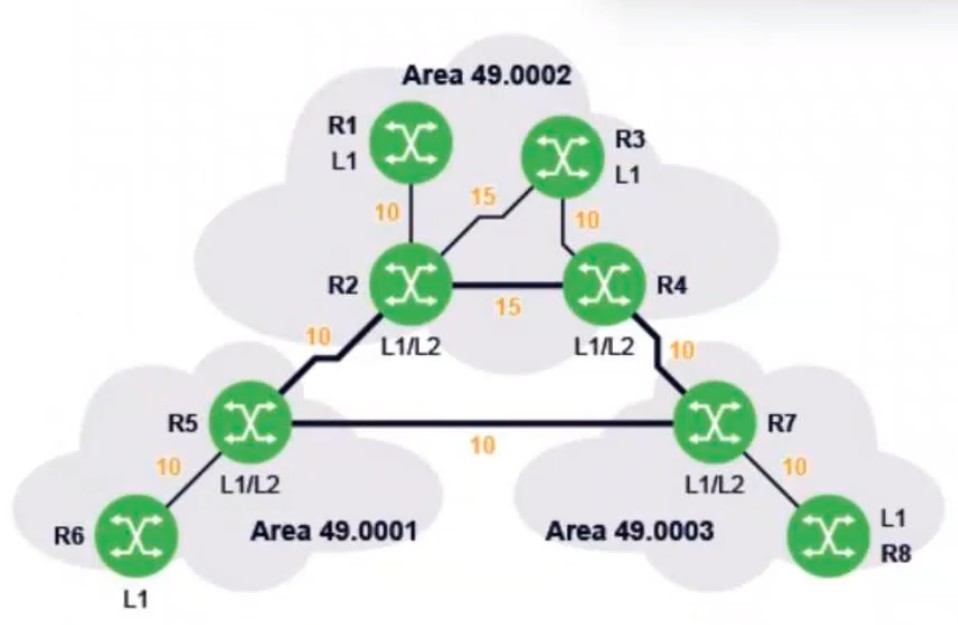

The metric values between the routers dictate the routing paths, and IS-IS will calculate the shortest path based on these values.

R6 to R3: The path from R6 to R3 will go through R5 and R2, as this route has the least cumulative metric (10 + 10 + 15 = 35).

R3 to R6: The reverse path from R3 to R6 will follow R3 R2 R5 R6 because this route is also the shortest with a total metric of 10 + 10 + 10 = 30.

When a router receives a link-state advertisement (LSA), it does not update the age field before forwarding it. The age field in an LSA is typically updated by the originating router or during the process of forwarding the LSA within the network. Routers do not modify the age field upon receiving and forwarding an LSA.

IS-IS routers must have matching authentication settings to establish an adjacency. If one router is configured with authentication and the other is not, the routers will not be able to establish an adjacency because their authentication parameters do not match.

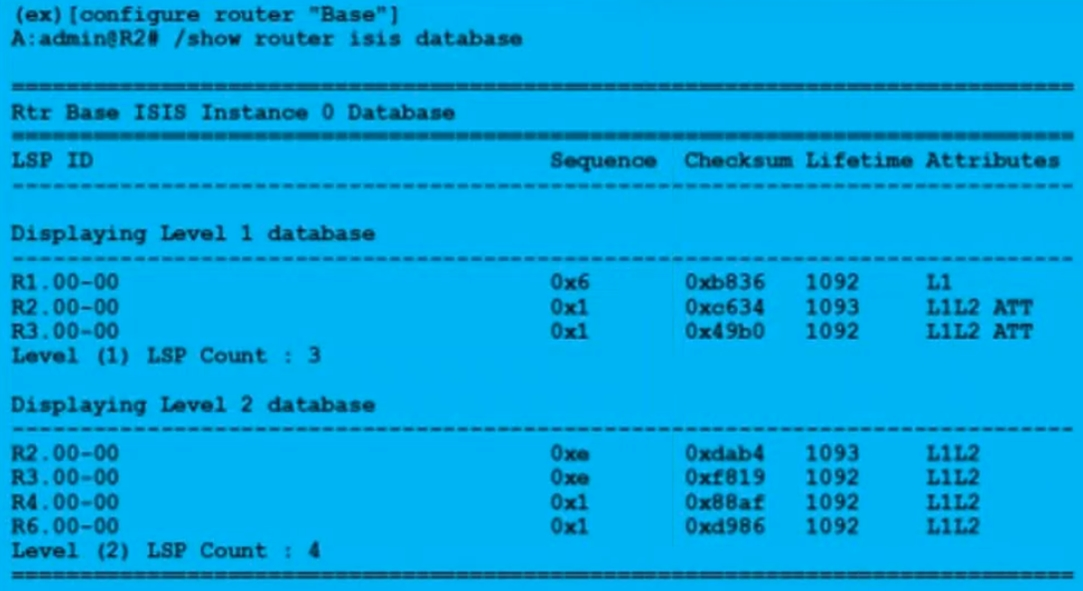

The output shows two levels of IS-IS databases: Level 1 (L1) and Level 2 (L2). This indicates that the domain is multi-area, as L1 routers are confined to a single area, while L2 routers can route between different areas. The presence of Level 1/Level 2 (L1/L2) routers also suggests that the domain spans multiple areas.

The LSP (Link-State PDU) entries show L1/L2 ATT attributes, which typically indicate that these routers are capable of routing both within their own area (Level 1) and across areas (Level 2), suggesting a multi-area design.

The IS-IS domain likely includes broadcast interfaces, as indicated by the 'ATT' attribute (typically referring to the type of interface) and common IS-IS configuration practices on broadcast networks like Ethernet.
