Free NetApp NS0-593 Exam Dumps July 2026

= The panic message indicates that the node encountered a fatal error while accessing the PCI card in slot 31. This could be due to a hardware failure, a firmware issue, or a driver problem. The first component to troubleshoot is the PCI card in slot 3, as it is the most likely source of the error.You can use thesystem node hardware pci showcommand to check the status of the PCI card and thesystem node hardware firmware updatecommand to update the firmware if needed2.You can also use the Panic Message Analyzer tool from the NetApp Support Site to determine whether your panic was caused by a known software issue3.Reference=1:REBOOT (panic) ALERT - AutoSupport message2: [system node hardware pci show]3: [Panic Message Analyzer tool]

= The error message indicates that the volume my_data_vol is WAFL inconsistent, which means that there is a discrepancy between the data blocks and the metadata in the file system. This can be caused by various factors, such as hardware failures, software bugs, power outages, or network disruptions.The first action to correct this issue is to determine the root cause behind the inconsistency before attempting any recovery procedure, as recommended by the NetApp documentation1. This is because some recovery procedures, such as wafliron or storage takeover, may not work or may cause further damage if the underlying cause is not resolved. For example, if the inconsistency is due to a faulty disk or shelf, running wafliron may not fix the problem and may even corrupt more data.Therefore, it is important to identify and isolate the cause of the inconsistency before taking any further steps.Reference=1Volume Showing WAFL Inconsistent - NetApp Knowledge Base

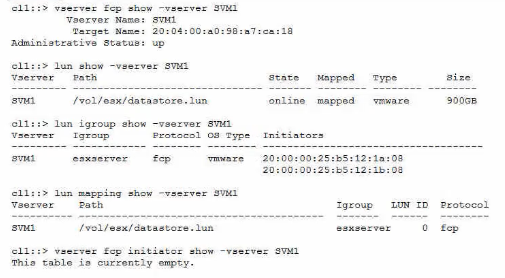

To access a LUN on a FAS 8300 system from a VMware ESXi server through the FC protocol, the customer must configure the FC service on the SVM that owns the LUN. The FC service enables the SVM to act as an FC target and communicate with the FC initiators on the host. Without the FC service, the LUN will not be visible to the host, even if the LUN is mapped to an igroup and the FC LIFs are up. The exhibit shows that the FC service is not configured on the SVM, as the output of the commandvserver fcp initiator show -vserver SVM1is empty. Therefore, the reason for the problem is that the FC service has not been configured on the SVM.Reference=Configure an SVM for FC,Create an FC protocol service,Single IQN iSCSI session with ESXi on ONTAP when igroup has two IQNs

According to the NetApp Knowledge Base, packet traces are stored in the /etc/log/packet_traces directory of the node hosting the LIF. This applies to ONTAP 9.10 and above systems. For ONTAP 9.2 to 9.9 systems, the procedure to capture packet traces is similar, but the command syntax is slightly different. For ONTAP pre-9.2 systems, the procedure is different and requires the use of the tcpdump command.Reference=How to capture packet traces on ONTAP 9.10+ systems,How to capture packet traces (tcpdump) on ONTAP 9.2 to 9.9 systems,How to capture packet traces in ONTAP pre-9.2

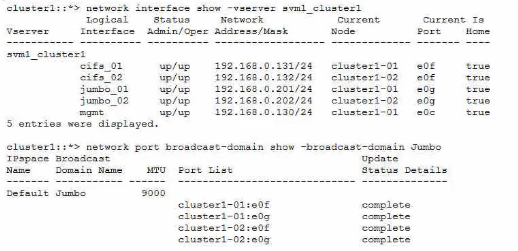

The ONTAP command that will help isolate a possible MTU mismatch isnetwork ping -lif jumbo_01 -vserver svm1_cluster1 -destination 192.168.0.210 -disallow-fragmentation true -packet-size 5000. This command will send a ping packet of 5000 bytes from the logical interface (LIF) jumbo_01 to the destination IP address 192.168.0.210, without allowing fragmentation. If the ping fails, it means that there is an MTU mismatch somewhere along the path.If the ping succeeds, it means that the MTU is consistent and the problem is elsewhere12.Reference:1: Check the MTU network setting on the storage system | NetApp Documentation2: How to adjust the MTU for an ONTAP interface - NetApp Knowledge Base

= AutoSupport is enabled by default for Cloud Manager and ONTAP Cloud systems. It proactively monitors the health of your systems and sends messages to NetApp technical support. To enable AutoSupport, you must provide your NetApp Support site credentials to Cloud Manager. If your credentials are incorrect or expired, Cloud Manager will not be able to send AutoSupport messages to NetApp. Therefore, the solution for this issue is to verify that your NetApp Support site credentials are correctly added to Cloud Manager.Reference=Troubleshooting Cloud Manager and ONTAP Cloud,Set up AutoSupport
