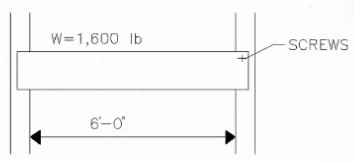

Given:

Load (W) = 1,600 lb

Screw shear capacity = 440 lb per screw

Screw tension capacity = 215 lb per screw

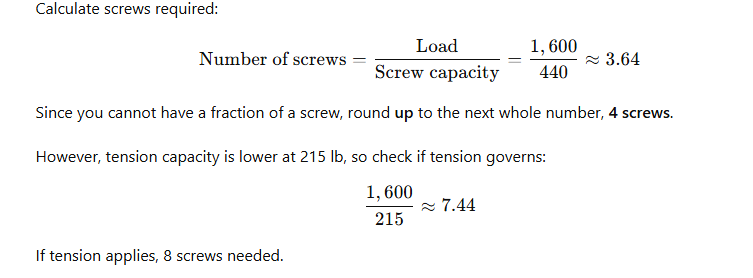

Assuming worst case is shear capacity (usually governs):

If tension applies, 8 screws needed.

But typically, shear governs for header connection; since question likely focuses on shear, 4 screws would be safest.

If question expects minimal number to resist both, 8 screws would be correct.

Final answer: 4 screws (Option C) if shear governs; if considering tension also, 8 screws (Option D).

Since the question is ambiguous, and shear usually controls, C. 4 screws is appropriate.

NCARB ARE 5.0 Review Manual, Structural Systems chapter

Metal stud framing connection design standards

Purpose of the Air Space in Brick Veneer Walls

In a typical brick veneer cavity wall assembly, there is an air space between the back side of the brick and the sheathing (or water-resistive barrier) of the structural wall. This space is typically 1 to 2 inches wide and serves several critical functions:

Moisture Drainage and Ventilation

Rainwater can penetrate brick veneer through joints and cracks.

The air cavity allows water to drain down the back of the veneer to flashing and out through weep holes.

It also provides ventilation to help dry out the wall assembly.

Minimizing Mortar Bridging

During construction, mortar can drop down into the cavity from bricklaying.

If mortar bridges across to the sheathing, it can create a path for moisture to move into the structure.

The 2-inch cavity helps reduce the chance that mortar droppings will fully bridge the gap, ensuring the drainage plane stays functional.

Why Other Options Are Incorrect:

A . To meet the minimum R-value --- The air space in brick veneer is not designed as insulation; its thermal benefit is minimal compared to continuous insulation layers.

B . Allow for differential movement --- Brick veneer differential movement is accommodated by wall ties and control joints, not by the air cavity.

C . Provide space for roof drain piping --- Roof drainage piping is routed separately and is not part of the brick veneer cavity design.

NCARB ARE 5.0 PDD Study Guide Reference:

Content Area: Building Envelope Systems --- Masonry Wall Assemblies

Source Reference:

Building Construction Illustrated (Ching) --- Brick Veneer Wall Sections and Cavity Function

Architectural Graphic Standards --- Masonry Veneer Construction Details

BIA (Brick Industry Association) Technical Notes 21 & 21A --- Cavity Wall Design and Construction

Key Principle: A 2-inch air cavity behind brick veneer is primarily to ensure proper drainage and to minimize mortar bridging, which would otherwise allow moisture intrusion into the building.
