Microsoft Exam AZ-102 Topic 4 Question 3 Discussion

Actual exam question for Microsoft's AZ-102 exam

Question #: 3
Topic #: 4

You plan to deploy a site-to-site VPN connection from on-premises network to your Azure environment. The VPN connection will be established to the VNET01-USEA2 virtual network.

You need to create the required resources in Azure for the planned site-to-site VPN. The solution must minimize costs.

What should you do from the Azure portal?

NOTE: This task may a very long time to complete. You do NOT need to wait for the deployment to complete this task successfully.

AWe create a VPN gateway.
Step 1:
On the left side of the portal page, click + and type 'Virtual Network Gateway' in search. In Results, locate and click Virtual network gateway.
Step 2:
At the bottom of the 'Virtual network gateway' page, click Create. This opens the Create virtual network gateway page.
Step 3:

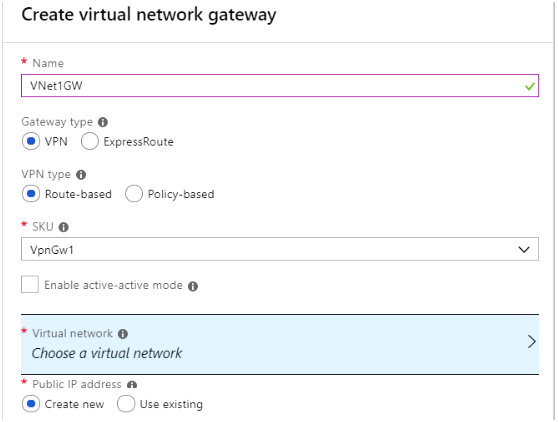

On the Create virtual network gateway page, specify the values for your virtual network gateway.
Gateway type: Select VPN. VPN gateways use the virtual network gateway type VPN.
Virtual network: Choose the existing virtual network VNET01-USEA2
Gateway subnet address range: You will only see this setting if you did not previously create a gateway subnet for your virtual network.
Step 4:
Select the default values for the other setting, and click create.

The settings are validated and you'll see the 'Deploying Virtual network gateway' tile on the dashboard. Creating a gateway can take up to 45 minutes.
Note: This task may take a very long time to complete. You do NOT need to wait for the deployment to complete this task successfully.

BWe create a VPN gateway.
Step 1:
On the left side of the portal page, click + and type 'Virtual Network Gateway' in search. In Results, locate and click Virtual network gateway.
Step 2:
At the bottom of the 'Virtual network gateway' page, click Create. This opens the Create virtual network gateway page.
Step 3:
On the Create virtual network gateway page, specify the values for your virtual network gateway.
Gateway type: Select VPN. VPN gateways use the virtual network gateway type VPN.
Virtual network: Choose the existing virtual network VNET01-USEA2
Gateway subnet address range: You will only see this setting if you did not previously create a gateway subnet for your virtual network.
Step 4:
Select the default values for the other setting, and click create.

Show Suggested Answer

Suggested Answer: A

References:

https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-howto-site-to-site-resource-manager-portal
