Linux Foundation CKS Exam - Topic 1 Question 10 Discussion

Question

You can switch the cluster/configuration context using the following command:

[desk@cli] $kubectl config use-context dev

Context:

A CIS Benchmark tool was run against the kubeadm created cluster and found multiple issues that must be addressed.

Task:

Fix all issues via configuration and restart the affected components to ensure the new settings take effect.

Fix all of the following violations that were found against the API server:

1.2.7authorization-modeargument is not set toAlwaysAllow FAIL

1.2.8authorization-modeargument includesNode FAIL

1.2.7authorization-modeargument includesRBAC FAIL

Fix all of the following violations that were found against the Kubelet:

4.2.1 Ensure that theanonymous-auth argumentis set to false FAIL

4.2.2authorization-modeargument is not set to AlwaysAllow FAIL (UseWebhookautumn/authz where possible)

Fix all of the following violations that were found against etcd:

2.2 Ensure that theclient-cert-authargument is set to true

Merlyn · Accepted Answer

A) Explanation:
worker1 $ vim /var/lib/kubelet/config.yaml
anonymous:
enabled: true                                        #Delete this
enabled: false                                       #Replace by this
authorization:
mode: AlwaysAllow                                      #Delete this
mode: Webhook                                          #Replace by this
worker1 $ systemctl restart kubelet.  # To reload kubelet config
ssh to master1

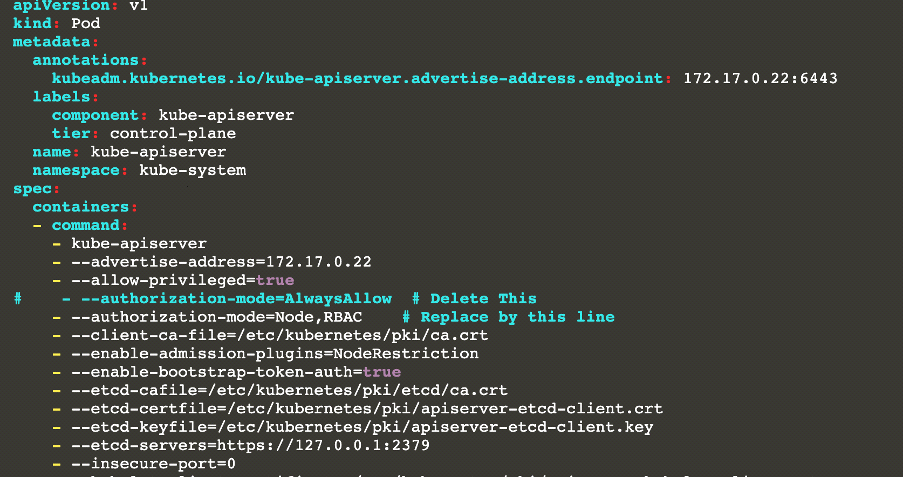

master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml
- -- authorization-mode=Node,RBAC

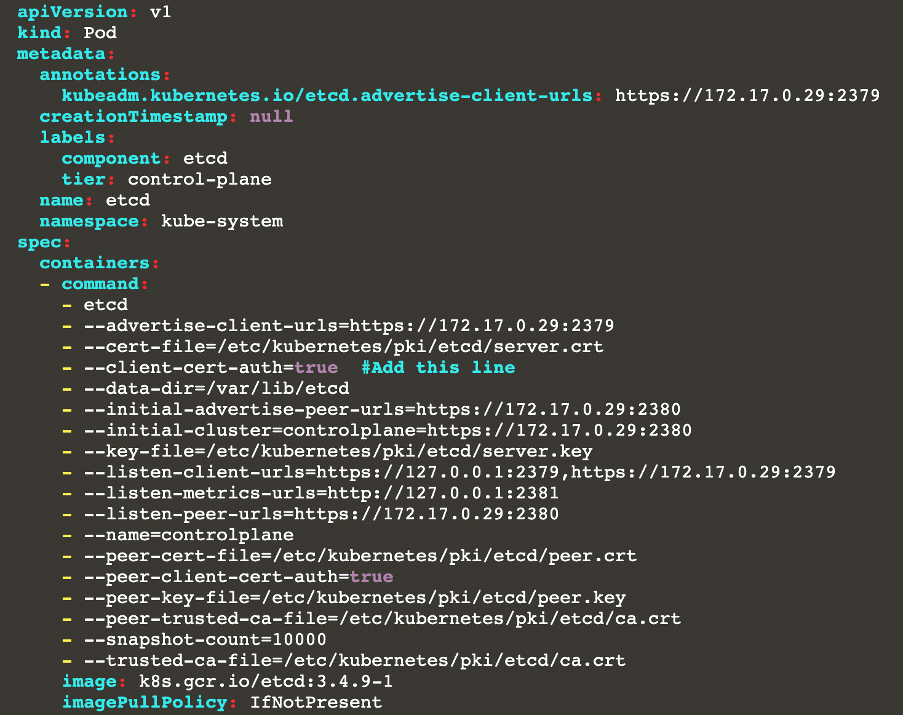

master1 $ vim /etc/kubernetes/manifests/etcd.yaml
- --client-cert-auth=true
Explanation
ssh to worker1
worker1 $ vim /var/lib/kubelet/config.yaml
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
anonymous:
enabled: true                                        #Delete this
enabled: false                                       #Replace by this
webhook:
cacheTTL: 0s
enabled: true
x509:
clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
mode: AlwaysAllow                                      #Delete this
mode: Webhook                                          #Replace by this
webhook:
cacheAuthorizedTTL: 0s
cacheUnauthorizedTTL: 0s
cgroupDriver: systemd
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
resolvConf: /run/systemd/resolve/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s
worker1 $ systemctl restart kubelet.  # To reload kubelet config
ssh to master1
master1 $ vim /etc/kubernetes/manifests/kube-apiserver.yaml
master1 $ vim /etc/kubernetes/manifests/etcd.yaml
