In Layer 2 switching, switches learn MAC addresses based on the source MAC address of incoming frames and forward frames based on the destination MAC address.

Step-by-Step Breakdown:

MAC Learning:

When a switch receives a frame, it records the source MAC address and the port on which it arrived. This allows the switch to know where to send traffic destined for that MAC address.

Forwarding Based on Destination:

The switch then looks at the destination MAC address and forwards the frame out of the port associated with that MAC address. If the MAC is unknown, the switch floods the frame to all ports.

Juniper Reference:

Layer 2 Switching: Juniper switches use source MAC addresses to build MAC tables and forward traffic based on the destination MAC address.

The exhibit shows a Folded IP Clos Architecture, which is also referred to as a 3-stage Clos network design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:

A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

The Folded Clos architecture shown here effectively 'folds' the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall 3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

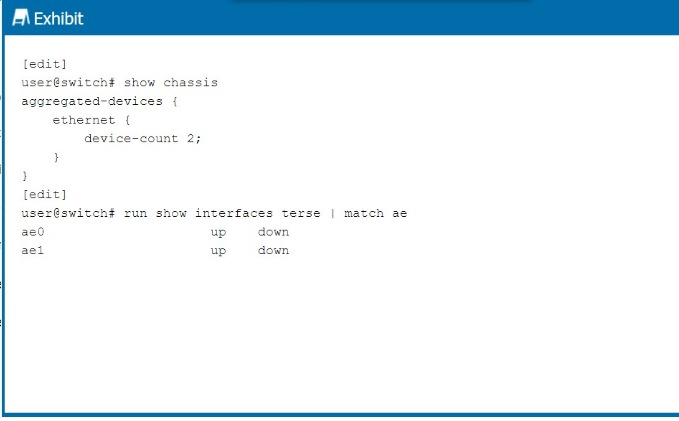

In the exhibit, the ae0 and ae1 interfaces are in a link down state. This occurs when no physical interfaces (member interfaces) have been added to the LAG (Link Aggregation Group) interfaces, or the member interfaces are not operational.

Step-by-Step Breakdown:

LAG Configuration:

A LAG interface (aggregated Ethernet interface) is a logical interface that combines multiple physical interfaces for redundancy and increased bandwidth. The LAG will only be operational if at least one member interface is active and configured correctly.

No Operational Member Interfaces:

If no member interfaces are added or if the member interfaces are down, the LAG will remain in a down state, as shown in the exhibit for ae0 and ae1.

Resolution:

Verify that physical interfaces have been added to the LAG using commands like:

LAG Interface Status: In Juniper, the link status of the LAG depends on its member interfaces, which must be operational for the LAG to function.

When advertising OSPF routes into BGP, the appropriate routing policy should be applied as an export policy in BGP.

Step-by-Step Breakdown:

OSPF to BGP Route Advertisement:

Routes learned via OSPF (a dynamic IGP) need to be exported into BGP to be advertised to external BGP peers. In Junos OS, this is done using export policies.

Export Policies in BGP:

An export policy controls which routes are advertised out of a BGP session. In this scenario, the routing policy must be applied to BGP as an export policy to export the OSPF-learned routes to external BGP peers.

Policy Configuration:

Example configuration:

set policy-options policy-statement EXPORT_OSPF term 1 from protocol ospf

set policy-options policy-statement EXPORT_OSPF term 1 then accept

set protocols bgp group <group-name> export EXPORT_OSPF

This policy ensures that only OSPF routes are exported into BGP.

Juniper Reference:

Routing Policy: Export policies are used in BGP to control route advertisements to peers, including those learned via OSPF.
