Huawei H12-831_V1.0 Exam - Topic 1 Question 83 Discussion

Comprehensive and Detailed In-Depth

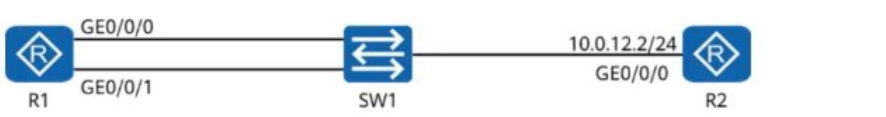

Understanding the DHCP Process in This Scenario:

DHCP Server on R2:

The DHCP server is configured on interface GE0/0/0 of R2.

The address pool is an interface address pool, meaning that IP addresses are allocated from the subnet of GE0/0/0 (i.e., 10.0.12.0/24).

DHCP Clients on R1:

Both interfaces (GE0/0/0 and GE0/0/1) on R1 are set as DHCP clients, meaning they will send DHCP DISCOVER messages to obtain an IP address dynamically.

Why Only One Interface Gets an IP Address?

Interface address pools in Huawei devices assign only one IP address per MAC address (which is typically the router's MAC).

Since both interfaces belong to R1, they share the same MAC address when making a DHCP request.

As a result, the DHCP server on R2 only assigns one IP address to the first requesting interface.

The second request is ignored or denied by the DHCP server due to the duplicate MAC address issue.

Key Takeaways:

Huawei routers using an interface-based DHCP address pool assign only one IP per MAC address.

Since both interfaces on R1 have the same MAC, only one gets an IP.

This behavior is expected in Huawei's HCIP-Datacom-certified DHCP configurations.

HCIP-Datacom-Advanced Routing & Switching Technology Reference:

Huawei HCIP-Datacom Official Certification Guide, Chapter on DHCP Server and Client Configurations.

Huawei Datacom Configuration Guide, Section on Interface Address Pools and Address Assignment Limitations.

Huawei Enterprise Networking Training Materials, DHCP Relay and DHCP Server Behavior.
