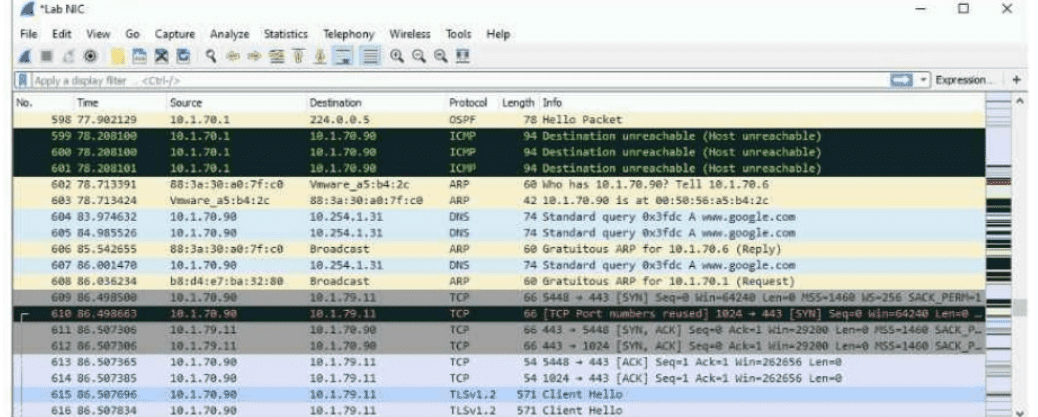

Wireshark: Follow TCP Stream:

Wireshark provides an intuitive feature to filter and display a complete TCP conversation.

By right-clicking any packet within the conversation and selecting 'Follow TCP Stream', Wireshark isolates and displays the entire conversation.

This feature allows you to view the communication in a simplified, sequential manner, including requests and responses.

Option Analysis:

Option A: Incorrect. Capture filters only apply during packet capturing, not for analyzing already saved packet captures.

Option B: Incorrect. Sorting packets helps with organizing data but does not isolate a complete conversation.

Option C: Incorrect. A capture filter for TCP port 5448 would have to be applied before capturing; it does not work for saved data.

Option D: Correct. Right-clicking a packet and choosing 'Follow TCP Stream' is the simplest way to display the full conversation between 10.1.70.90 and 10.1.79.11 on port 5448.

Steps in Wireshark to Follow a TCP Stream:

Locate any packet within the desired conversation (e.g., between 10.1.70.90 and 10.1.79.11 on TCP port 5448).

Right-click on the packet.

Choose 'Follow' 'TCP Stream'.

Wireshark will display the entire TCP conversation, including both directions of communication.

This feature is especially useful when troubleshooting or analyzing detailed interactions between hosts.

Comprehensive Detailed Explanation

Virtual Network Based Tunneling (VNBT) is the appropriate technology for this use case because:

Traffic Steering: VNBT enables traffic from specific clients or devices to be tunneled through a predefined network path. This allows traffic to pass through intermediate devices such as third-party security appliances.

Policy Enforcement: VNBT can be configured to route traffic based on roles, VLANs, or other policy definitions, ensuring that only specified traffic flows are redirected to the security appliance.

Scalability: This approach simplifies the redirection of traffic without requiring complex physical rewiring or changes to the underlying network topology.

Other Options:

MC-LAG: Primarily used for high-availability and redundancy in multi-chassis link aggregation scenarios, not for traffic redirection through appliances.

Network Analytics Engine (NAE): Used for monitoring and analytics, not traffic steering or forwarding.

Device Profiles: Helps automate switch port configurations for specific device types but does not handle traffic redirection.

Reference

AOS-CX Virtual Network Based Tunneling (VNBT) documentation.

Aruba Switch Architecture and Traffic Flow Control Best Practices Guide.

When deploying a virtual Data Collector for HPE Aruba Networking ClearPass Device Insight (CPDI), it is essential to ensure that the correct virtual port is connected to the designated VLAN. In this case, VLAN 101 is used to receive the IP address and connect to Aruba Central. The best practice is to use the virtual port with the lowest port ID. This is typically the primary port used for management and network connectivity in virtual environments, ensuring proper network integration and communication.

When establishing a cluster of HPE Aruba Networking ClearPass servers, it is recommended to install a CA-signed certificate for HTTPS on the Subscriber before it joins the cluster. This ensures secure communication between the servers in the cluster and provides a trusted certificate for client connections.

1.HTTPS Security: A CA-signed certificate for HTTPS ensures that all web-based communication to and from the ClearPass server is encrypted and secure.

2.Cluster Communication: Secure communication between ClearPass nodes in the cluster is essential for synchronization and data integrity.

3.Client Trust: Clients accessing the ClearPass server will trust the CA-signed certificate, avoiding security warnings and ensuring smooth operations.

802.11 Traffic and Protection Bits:

In the 802.11 protocol, protection bits and the Initialization Vector (IV) are used in encrypted wireless traffic.

If the traffic is captured directly from an AP, the frames may include encrypted content.

Wireshark may misinterpret these protection bits or fail to display the frames correctly unless it is configured to ignore protection bits and correctly parse the IV.

Key Scenario:

When traffic is captured directly from an AP managed by HPE Aruba Networking Central, the frames are often captured before decryption occurs.

In such cases, you must configure Wireshark to ignore the protection bits and handle the IV properly for correct frame interpretation.

Option Analysis:

Option A: Incorrect. Data plane traffic sent to a remote IP is usually decrypted, so Wireshark does not require this adjustment.

Option B: Incorrect. Switch port mirroring captures traffic at Layer 2/3, not raw 802.11 frames.

Option C: Correct. Traffic captured directly from an AP via HPE Aruba Networking Central often includes encrypted wireless frames, requiring Wireshark adjustments.

Option D: Incorrect. Control plane traffic is typically management data and not raw wireless frames needing IV interpretation.

When integrating ClearPass Policy Manager (CPPM) with ClearPass Device Insight (CPDI), it is important to understand how device profiling and classification work between the two solutions:

1. CPPM and CPDI Integration Overview

CPPM is primarily used for access control and policy enforcement, while CPDI specializes in device profiling and classification through advanced analytics and machine learning.

Integration allows CPPM to leverage CPDI's enhanced profiling capabilities for more accurate device identification and policy enforcement.

2. Detailed Analysis of Each Option

A . CPPM no longer supports any Device Profiler features and relies on CPDI for this profile information:

Incorrect: CPPM still supports its own basic device profiling features and can operate independently. However, when integrated with CPDI, CPPM can use CPDI's advanced profiling capabilities as a supplement.

B . CPDI must be configured as an audit server on CPPM for the integration to be successful:

Incorrect: CPDI is not configured as an audit server on CPPM. Integration is achieved via API integration and communication between the two solutions, not through audit server settings.

C . CPDI must have security analysis disabled on it for the integration to be successful:

Incorrect: Security analysis does not need to be disabled for integration. In fact, CPDI's security analysis enhances the classification process by identifying anomalous behaviors.

D . CPPM can submit profile information to CPDI, but if CPDI derives a different classification, CPDI takes precedence:

Correct:

CPPM and CPDI exchange profile data, but CPDI has more advanced device classification capabilities due to its machine learning-based engine.

When CPDI derives a different classification than CPPM, CPDI's classification is considered more accurate and takes precedence.

This ensures that policies are based on the most reliable device classification.

Reference

Aruba ClearPass Policy Manager and Device Insight Integration Guide.

ClearPass Device Profiling and Classification Documentation.

Best Practices for CPPM and CPDI Integration in Network Security.

The 'Detect Valid SSID Misuse' event in Aruba's Wireless Intrusion Detection System (WIDS) indicates that a valid SSID, associated with your network, is being broadcast from an unauthorized source. This scenario often signals a potential rogue access point attempting to deceive clients into connecting to it (e.g., for credential harvesting or man-in-the-middle attacks).

1. Explanation of Each Option

A . Clients are failing to authenticate to corporate SSIDs. You should first check for misconfigured authentication settings and then investigate a possible threat:

Incorrect:

This event is not related to authentication failures by legitimate clients.

Misconfigured authentication settings would lead to events like 'authentication failures' or 'radius issues,' not 'valid SSID misuse.'

B . Admins have likely misconfigured SSID security settings on some of the company's APs. You should have them check those settings:

Incorrect:

This event refers to an external device broadcasting your SSID, not misconfiguration on the company's authorized APs.

WIDS differentiates between valid corporate APs and rogue APs.

C . Hackers are likely trying to pose as authorized APs. You should use the detecting radio information and immediately track down the device that triggered the event:

Correct:

This is the most likely cause of the 'detect valid SSID misuse' event. A rogue AP broadcasting a corporate SSID could lure clients into connecting to it, exposing sensitive credentials or traffic.

Immediate action includes:

Using the radio information from the event logs to identify the rogue AP's location.

Physically locating and removing the rogue device.

Strengthening WIPS/WIDS policies to prevent further misuse.

D . This event might be a threat but is almost always a false positive. You should wait to see the event over several days before following up on it:

Incorrect:

While false positives are possible, 'valid SSID misuse' is a critical security event that should not be ignored.

Delaying action increases the risk of successful attacks against your network.

2. Recommended Steps to Address the Event

Review Event Logs:

Gather details about the rogue AP, such as SSID, MAC address, channel, and signal strength.

Locate the Rogue Device:

Use the detecting AP's radio information and signal strength to triangulate the rogue AP's physical location.

Respond to the Threat:

Remove or disable the rogue device.

Notify the security team for further investigation.

Prevent Future Misuse:

Strengthen security policies, such as enabling client whitelists or enhancing WIPS protection.

Reference

Aruba WIDS/WIPS Configuration and Best Practices Guide.

Aruba Central Security Event Analysis Documentation.

Wireless Threat Management Using Aruba Networks.

Hub-Spoke VPN Configuration:

HPE Aruba Central SD-WAN Orchestrator enables hub-spoke topology where branch gateways (BGWs) connect to VPN concentrators (VPNCs) located at data centers.

A key step in configuring this is defining which VPNCs the BGWs will prefer for connectivity.

The DC Preference List is configured in the BGW groups to prioritize the data centers to which BGWs connect.

Option Analysis:

Option A: Incorrect. VPN pools control IP allocation, not which branches connect to VPNCs.

Option B: Incorrect. IKE policies define key exchange mechanisms but are not part of the connection preference process.

Option C: Correct. Admins configure a DC preference list in BGW groups to determine connectivity priorities with VPNCs.

Option D: Incorrect. IPsec policies define encryption parameters at a global level, but this is not specific to the hub-spoke connection configuration.
