Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

Based on the Fortinet NSE 7 - Public Cloud Security 7.4/7.6 study materials and the FortiOS 7.6 AWS Administration Guide, understanding the underlying mechanisms of AWS deployment tools is essential for permission management.

Infrastructure as Code and eksctl (Option C): In the context of Amazon EKS, the eksctl command-line tool is the official CLI for creating and managing clusters on EKS. When an administrator executes the eksctl create cluster command, eksctl does not interact with the EKS API directly to provision infrastructure; instead, it generates and executes AWS CloudFormation stacks to provision the necessary VPC, IAM roles, and the EKS control plane. Therefore, users running this command must have explicit permissions to create and manage CloudFormation stacks.

Resource Provisioning via Stacks: CloudFormation is AWS's native service for Infrastructure as Code (IaC), allowing users to define resources in JSON or YAML templates. Commands like eksctl leverage these templates to ensure repeatable and organized deployments of complex architectures, such as those required for a FortiGate or FortiWeb cloud integration.

Why other options are incorrect:

Option A: The kubectl command interacts directly with the Kubernetes API server inside the cluster to manage pods and services; it does not trigger AWS CloudFormation processes.

Option B: Helm is a package manager for Kubernetes. While it manages 'releases' within the EKS cluster, the installation of a Helm chart for a FortiWeb ingress controller happens at the Kubernetes software layer and does not utilize AWS CloudFormation stacks.

Option D: Changing the node count via CloudShell using the AWS CLI or kubectl typically modifies an Auto Scaling Group or a Kubernetes Deployment/DaemonSet directly, rather than initiating a new CloudFormation stack execution.

According to the FortiOS 7.6 Azure Administration Guide and the Fortinet 7.4 Public Cloud Security documentation regarding monitoring and troubleshooting in Microsoft Azure, administrators must utilize native diagnostic tools to gain visibility into network traffic patterns:

NSG Flow Logs (Option D): Network Security Group (NSG) flow logs are a feature of Azure Network Watcher that allows you to record information about IP traffic flowing through an NSG. These logs capture critical 5-tuple information (source/destination IP, port, and protocol) and whether the traffic was allowed or denied by specific security rules.

Traffic Pattern Analysis with Azure Monitor: To effectively analyze the 'pattern' of a traffic spike, these logs are typically sent to a Log Analytics workspace within Azure Monitor. By using Traffic Analytics, the raw flow data is processed into rich visualizations and searchable datasets. This allows administrators to run Kusto Query Language (KQL) queries to identify 'top talkers,' visualize traffic spikes over time, and correlate the timing of these spikes with application performance degradation.

Identifying Bottlenecks: This method is preferred for identifying bottlenecks because it provides a granular view of every packet entering or leaving the subnets where the FortiGate-VM or application servers are hosted, revealing the exact nature of the inbound volume.

Why other options are incorrect:

Option A: While Azure Firewall provides logging, it is an additional security layer that may not be deployed in all environments. NSG Flow Logs are the primary and more ubiquitous method for monitoring all subnet-level traffic regardless of firewall placement.

Option B: DDoS Protection is a preventative measure; it does not provide the historical 'identification and analysis' of traffic patterns required to diagnose a past performance bottleneck.

Option C: Azure Traffic Manager is a DNS-based load balancer. While it provides high-level metrics, it does not have visibility into the actual flow-level traffic data needed for a detailed pattern analysis of application bottlenecks.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

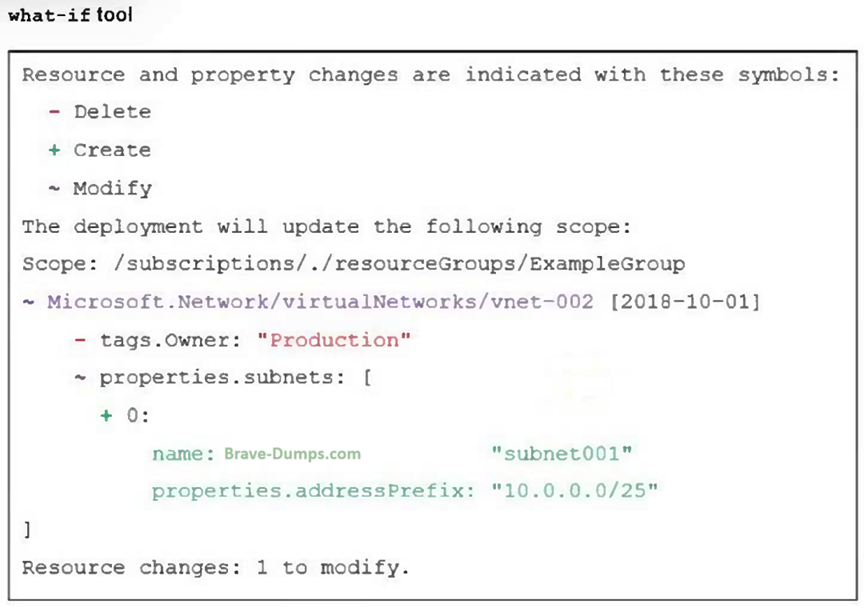

Based on the FortiOS 7.6 Azure Administration Guide and standard Azure Resource Manager (ARM) deployment practices, the what-if operation allows administrators to preview how a deployment will affect the current state of resources.

Interpreting the What-If Output (Option A): The exhibit shows the results of a change preview for a Virtual Network (vnet-002).

The symbol ~ (Modify) next to the VNet indicates that an existing resource is being updated rather than created or deleted.

The symbol - (Delete) next to tags.Owner: 'Production' indicates that this specific tag will be removed from the VNet.

Crucially, the symbol + (Create) appearing inside the properties.subnets array next to index 0: indicates the addition of a new element. This confirms that a new subnet named subnet001 with the address prefix 10.0.0.0/25 will be added to the existing Virtual Network vnet-002.

Why other options are incorrect:

Option B: The text shows that the tag 'Production' is being deleted (-), not that the VNet is being renamed to 'Production.'

Option C: The what-if tool only displays the changes. While one subnet is being added (+), the tool does not show the deletion of other existing subnets. Therefore, we cannot conclude the resulting VNet will have only a single subnet; it will have its existing subnets plus the new one.

Option D: There is no mention of addressSpace or addressPrefixes for the VNet itself being modified (~) or added (+) in the exhibit; only a subnet-level address prefix is shown.

Comprehensive and Detailed Explanation From FortiOS 7.6, FortiWeb 7.4 Exact Extract study guide:

According to the FortiWeb 7.4 Administration Guide and the FortiWeb Ingress Controller Installation Guide, the status of backend servers in the FortiView Topology dashboard is a direct reflection of the health check results.

Interpreting the Status Icon (Orange): In the FortiView Topology view, a green circle indicates that the server is up and responding to health checks, while an orange circle indicates that the server is not running or is unreachable.

Connectivity and Routing (Option B): For the FortiWeb ingress controller to accurately monitor and protect a containerized application, it must have a valid network path to the Kubernetes (K8s) worker nodes. If the FortiWeb VM is missing a route to the specific subnet where the K8s nodes reside, the health check packets will fail to reach their destination. As a result, FortiWeb identifies the backend servers (192.168.0.1, 192.168.0.2, and 192.168.0.3) as 'Down,' leading to the orange status shown in the exhibit.

Health Check Failures: When the status is orange, it implies that the Server Health Check (configured in the server pool) is detecting that the web servers are not responsive to connections. While this could be caused by an application-level failure, in a fresh cloud deployment of an ingress controller, the most common underlying cause is a network routing misconfiguration preventing the FortiWeb appliance from reaching the node IPs.12

Why other options are incorrect:34

Option A: If the SDN connector were not authenticated correctly, FortiWeb would likely fail to discover the containerized resources entirely, rather than discovering them and repor5ting them as 'Down'.6

Option C: While wron7g IP addresses would cause a failure, the Ingress Controller's job is to dynamically sync these addresses from the K8s API; a manual configuration error in a manifest file regarding IP addresses is less likely in an automated ingress environment.

Option D: The load balancing algorithm (Round Robin, Least Connections, etc.) affects how traffic is distributed, but it does not influence the up/down health status of the individual backend servers.
