Your requirements map to two key MSSP goals described in the FCSS SD-WAN 7.6 blueprint patterns:

Delegate as much administration and management as possible to the MSSP

This is best achieved when the hub security and SD-WAN control point is located on the MSSP premises, because the MSSP can centrally operate the core enforcement and overlay control. Both option B (dedicated hub at MSSP) and option D (shared hub at MSSP with customer isolation) meet this requirement.

Each site must maintain direct internet access (DIA) and be secure, with significant site-to-site traffic

In Fortinet SD-WAN MSSP designs, spokes can still use local breakout for DIA while also building secure overlays for inter-site traffic. Placing the hub at the MSSP enables centralized security services and scalable inter-site connectivity management while preserving DIA where required. Options B and D support this operating model.

Why the other options do not best match:

A includes a dedicated hub on the customer premises, which reduces how much the MSSP can centralize and operate from its own environment, so it does not maximize delegation.

C places both hub and spokes on the customer premises. While the MSSP can manage using a dedicated ADOM, this blueprint does not align as strongly with ''delegate installation and management'' to the MSSP as the designs where the hub is hosted and operated from the MSSP premises.

Therefore, the two MSSP deployment blueprints that address your requirements are B and D.

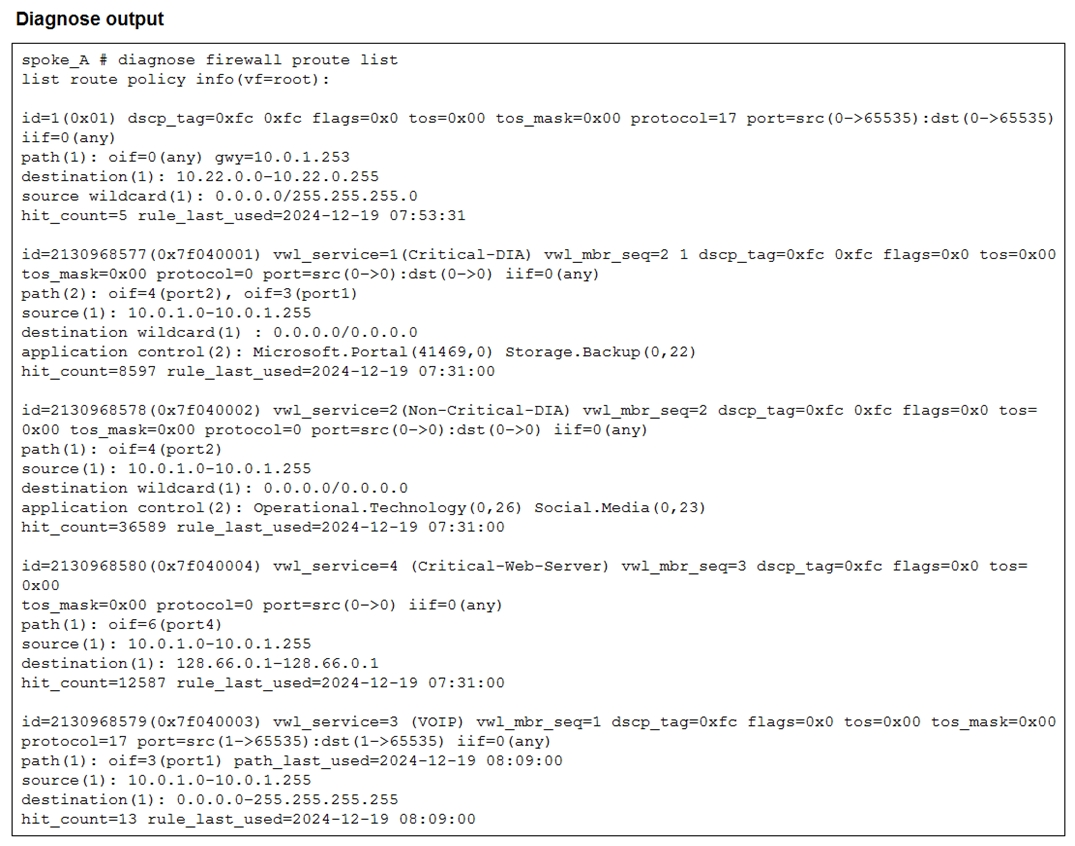

One SD-WAN rule is defined with application categories as the destination The diagnose output shows application control matches such as Microsoft.Portal, Operational.Technology, and Social.Media, confirming that SD-WAN rules are using application categories as destinations.

UDP traffic destined to the subnet 10.22.0.0/24 matches a policy route The first entry (id=1) shows protocol=17 (UDP) with destination 10.22.0.0/24, confirming this traffic is handled by a policy route instead of an SD-WAN rule.

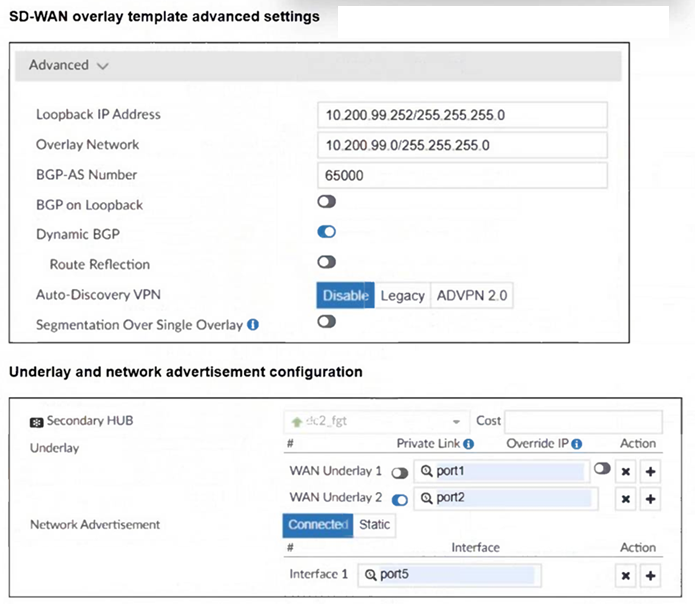

From the Underlay and network advertisement configuration exhibit for the Secondary HUB:

Under Underlay, the template explicitly lists:

WAN Underlay 1 = port1

WAN Underlay 2 = port2

In FortiManager SD-WAN Overlay Orchestrator, underlay interfaces selected for a hub are the transports used to build the overlay IPsec tunnels (one overlay per underlay, per peer as defined by the template). Because both port1 and port2 are configured as underlays, FortiManager will build overlay tunnels over both underlay links. That supports:

Option C (overlay tunnel on port1)

Option B (overlay tunnel on port2)

For the BGP neighbor options:

The Network Advertisement section shows Interface 1 = port5, which indicates a LAN/internal interface whose connected or static networks may be advertised into the overlay routing domain. This does not make port5 a BGP neighbor interface; it is the interface whose routes are being advertised.

The template indicates Dynamic BGP is enabled. In Overlay Orchestrator designs, BGP neighbor relationships are formed across the overlay tunnel interfaces / overlay endpoints, not directly on the raw underlay interfaces (port1/port2) and not on the advertised LAN interface (port5). Therefore, options A and D are not valid conclusions from what is shown.

So, the two correct conclusions are B and C.

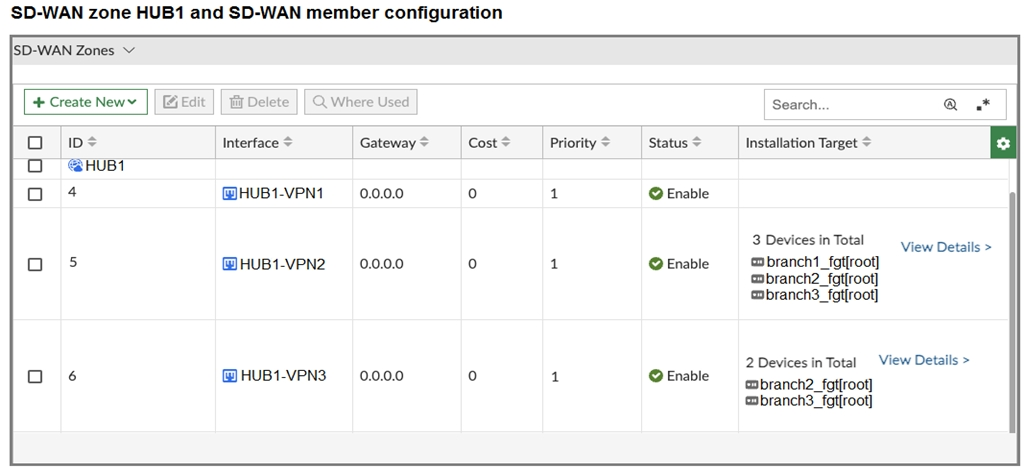

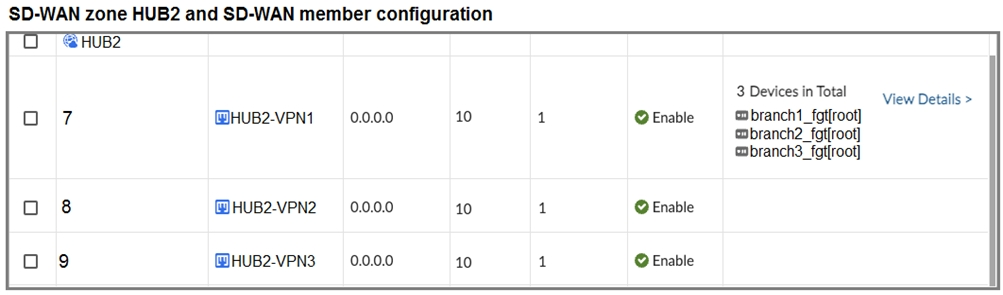

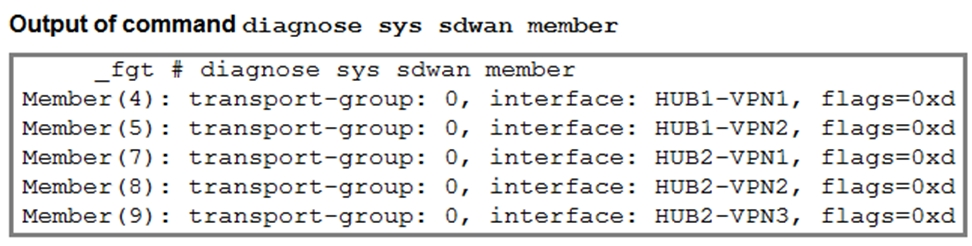

The diagnose output lists SD-WAN members 4(HUB1-VPN1), 5(HUB1-VPN2), 7(HUB2-VPN1), 8(HUB2-VPN2), and 9(HUB2-VPN3). It does not include member 6 (HUB1-VPN3). From the template, HUB1-VPN3 is installed only on branch2_fgt and branch3_fgt - not on branch1_fgt. Therefore, the output must be from branch1_fgt.

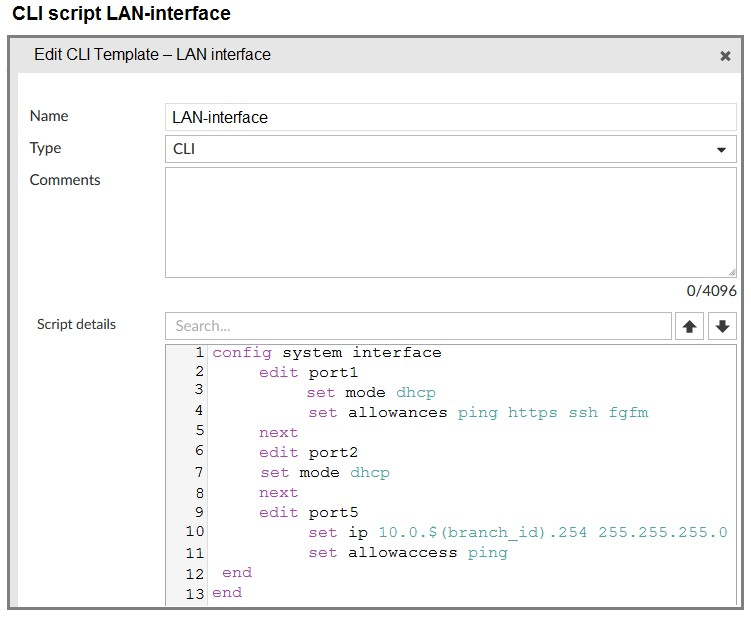

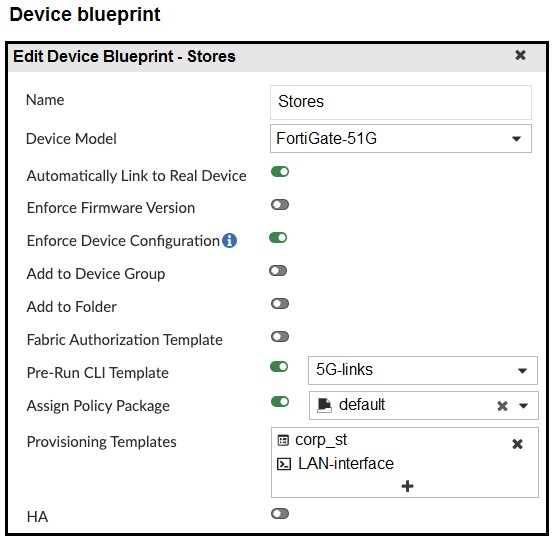

Enforce Device Configuration is enabled and the blueprint applies the provisioning CLI templates. The LAN-interface script sets port1 and port2 to DHCP and assigns a static IP to port5 (using the branch_id variable). Therefore, when FortiManager pushes the blueprint, it updates the configurations of port1, port2, and port5 - and their IP addresses may change accordingly.

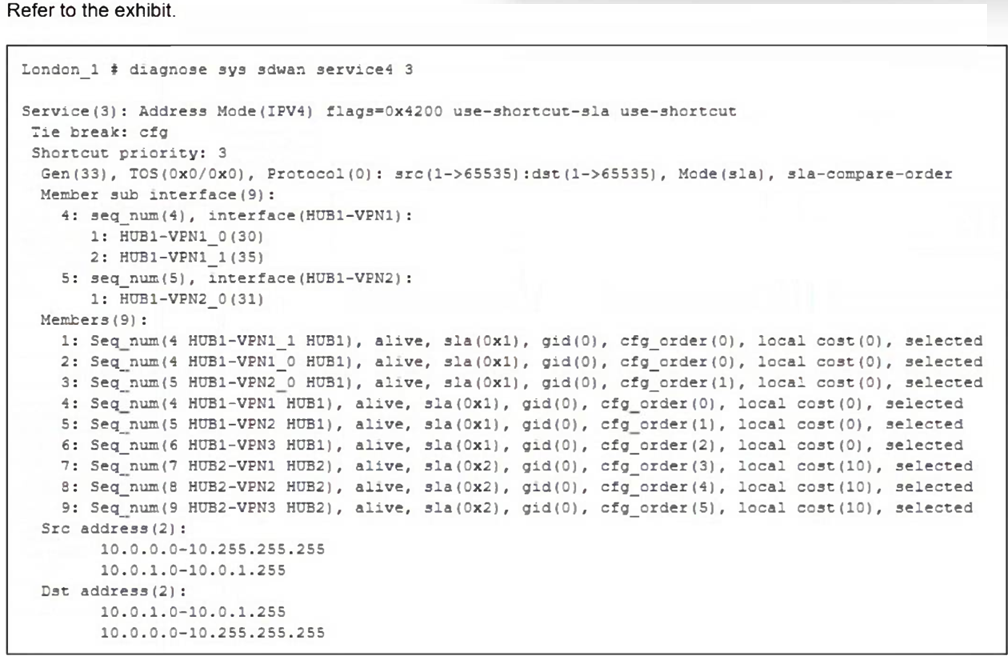

The command shown in the exhibit is:

diagnose sys sdwan service 4 3

This command displays the runtime state of SD-WAN rule ID 3 on the device. The output explicitly shows:

Service(3) which confirms the SD-WAN rule being evaluated is rule number 3

Members(9) which indicates that nine SD-WAN members are associated with this rule

The listed members include multiple IPsec tunnel interfaces such as HUB1-VPN1, HUB1-VPN2, HUB1-VPN3, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3, which is characteristic of a spoke device connecting to multiple hubs in a hub-and-spoke ADVPN topology, as defined in the FCSS SD-WAN 7.6 architecture.

Option B is incorrect because, although members are listed under different interfaces, the output does not indicate SD-WAN zones. Zones are shown only in configuration output, not in this diagnostic command.

Option C is incorrect because this is not a hub device. The presence of multiple hub tunnels as SD-WAN members indicates a spoke role. Additionally, the output does not confirm the number of established ADVPN shortcuts.

Option D is incorrect because the output clearly references SD-WAN rule 3, not rule 4, and it does not state that exactly three shortcut tunnels are allowed.

Therefore, the correct conclusion is that this is a spoke device and SD-WAN rule 3 is configured with nine members, which matches option A.
