According to the FortiOS 7.6 Security Fabric documentation and Study Guide, several conditions must be met for a downstream FortiGate to successfully join a Security Fabric.

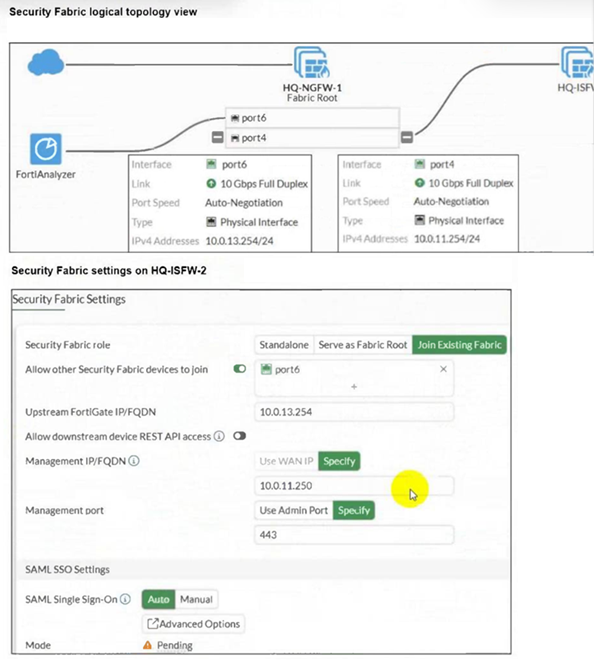

First, the Upstream FortiGate IP/FQDN configured on the downstream device must point to the IP address of the interface on the upstream device that is listening for fabric connections. In the provided logical topology, the Fabric Root (HQ-NGFW-1) uses port4 with the IP 10.0.11.254 to connect to the internal segmentation firewalls (ISFWs). Since HQ-ISFW-2 is in the same subnet as HQ-ISFW, it is physically and logically connected to the network segment serviced by port4. Therefore, the current configuration of 10.0.13.254 (which is port6, likely the WAN side) is incorrect, and it must be set to 10.0.11.254 (Statement A).

Second, once the downstream device successfully reaches the upstream device, it enters a Pending state. For security purposes, FortiOS does not allow devices to join the fabric automatically; the administrator of the upstream device (in this case, HQ-ISFW or the root) must manually authorize the new device (Statement C) in the Fabric Management console. Until this authorization is granted, the status will remain 'Pending' and no fabric data will be synchronized. Statements B and D are incorrect as SAML settings do not block the initial fabric join, and the management IP should be the local device's IP, not the upstream's IP.

In FortiOS 7.6, the Antivirus scan master switch in an antivirus profile becomes available only after at least one supported protocol is enabled for inspection.

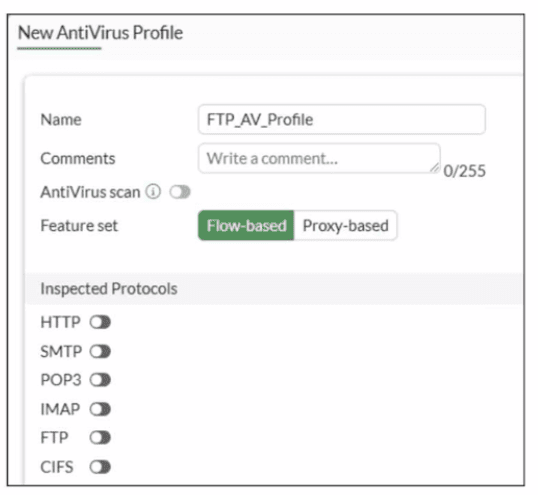

What the exhibit shows

A new antivirus profile named FTP_AV_Profile

Feature set: Flow-based

Antivirus scan switch is grayed out

All Inspected Protocols (HTTP, SMTP, POP3, IMAP, FTP, CIFS) are currently disabled

Why the Antivirus scan switch is grayed out

In FortiOS antivirus profiles:

The Antivirus scan toggle is a dependent control

It cannot be enabled unless at least one inspected protocol is selected

This prevents enabling AV scanning when there is no traffic type to scan

This behavior is documented in the FortiOS 7.6 Antivirus Profile configuration section.

Once you enable a protocol (for example, FTP), the Antivirus scan switch becomes active and configurable.

Why option B is correct

B . None of the inspected protocols are active in this profile.

All protocol toggles are OFF

Therefore, FortiGate disables (grays out) the Antivirus scan option

This is expected and correct behavior

Why the other options are incorrect

A . Antivirus scan is disabled under Feature visibilityIncorrect. Feature Visibility controls whether Antivirus appears in the GUI, not whether the scan switch is enabled inside a profile.

C . Feature set must be Proxy-basedIncorrect. Antivirus scanning is supported in both flow-based and proxy-based modes.

D . Less than 2 GB RAM does not support Antivirus scanIncorrect. Memory size affects performance and offloading, not basic AV scan availability.

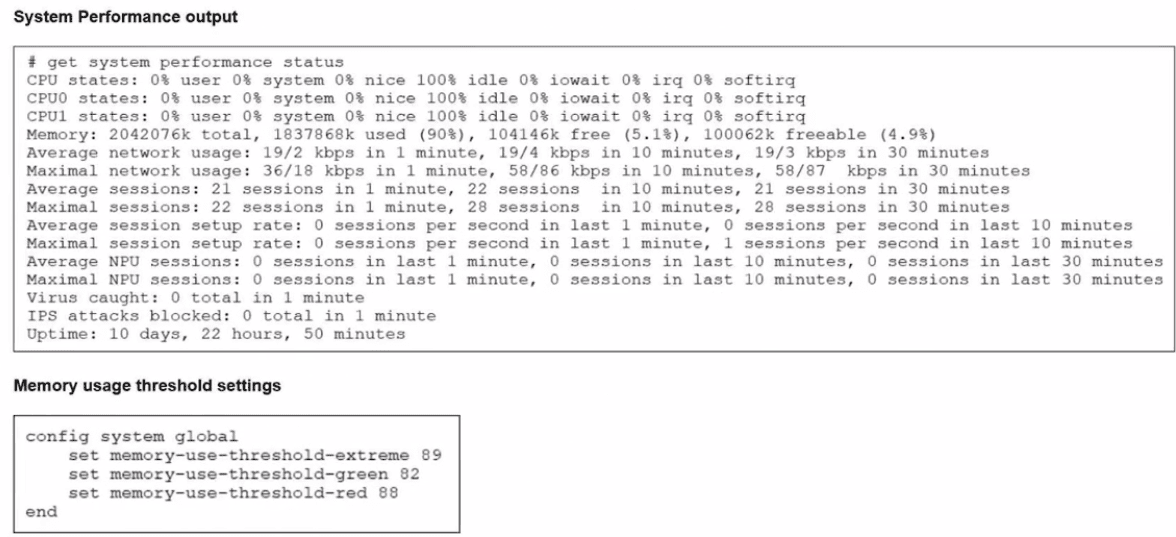

From the exhibits:

System performance output

Memory used: 90%

Free memory: ~5%

Default memory thresholds (FortiOS 7.6)

memory-use-threshold-green 82%

memory-use-threshold-red 88%

memory-use-threshold-extreme 89%

Because memory usage (90%) exceeds the extreme threshold (89%), the FortiGate enters conserve mode.

Effects of conserve mode (FortiOS 7.6 -- verified)

B . FortiGate has entered conserve mode.

Correct

When memory usage exceeds the red/extreme threshold, FortiGate automatically enters conserve mode.

This is exactly the condition shown in the system performance output.

D . Administrators can change the configuration.

Correct

Even in conserve mode:

Administrators can still log in (GUI, SSH, console)

Configuration changes are allowed

FortiGate does not lock configuration access during conserve mode.

This behavior is explicitly documented in the FortiOS 7.6 Conserve Mode section.

Why the other options are incorrect

A . Administrators can access FortiGate only through the console port.

Incorrect

Network access (GUI/SSH) is still available in conserve mode unless otherwise restricted.

Console-only access is not a conserve-mode requirement.

C . FortiGate drops new sessions.

Incorrect (as a general statement)

FortiGate may drop or bypass new inspection-required sessions depending on fail-open/fail-close settings.

It does not universally drop all new sessions, so this statement is not always true.

In FortiOS 7.6, HA cluster heartbeat IP addresses are automatically managed by FortiGate and play a critical role in cluster communication and synchronization.

Correct statements

A . Heartbeat IP addresses are used to distinguish between cluster members.

Correct

FortiGate assigns unique heartbeat IP addresses (link-local addresses in the 169.254.0.0/16 range) to each HA member.

These addresses are used for:

Cluster member identification

Health checks

Synchronization traffic

This allows FortiGate units to uniquely identify and communicate with each other inside the HA cluster.

C . A change in the heartbeat IP address happens when a FortiGate device joins or leaves the cluster.

Correct

Heartbeat IPs are dynamically assigned.

When:

A new FortiGate joins the cluster, or

A member leaves or fails,

FortiGate may reassign heartbeat IP addresses to maintain unique identification among members.

This behavior is documented in the FortiOS HA operation and troubleshooting guides.

Why the other options are incorrect

B . The heartbeat interface of the primary device is always assigned IP address 169.254.0.1.

Incorrect

There is no fixed or guaranteed heartbeat IP (such as 169.254.0.1) for the primary unit.

Heartbeat IP assignment is dynamic, not role-based.

D . Heartbeat interfaces have virtual IP addresses that are manually assigned.

Incorrect

Heartbeat IP addresses are:

Automatically assigned

Link-local

Administrators do not manually configure heartbeat IP addresses.

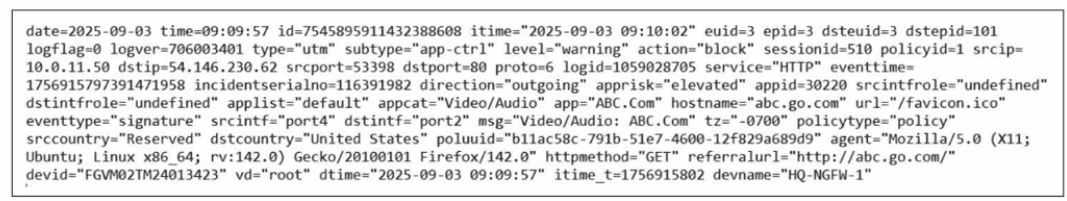

The exhibit shows a FortiGate UTM application control log with fields such as:

type='utm'

subtype='app-ctrl'

action='block'

policyid=1

appid=30220

appcat='Video/Audio'

service='HTTP'

apprisk='elevated'

This is a forward traffic security log, generated by Application Control applied to a firewall policy.

Why the correct answers are C and D

C . By filtering by policy universally unique identifier (UUID) and application name in the log entry

Correct.

FortiOS logs can be viewed and filtered in:

Log & Report Forward Traffic

Administrators can filter logs using fields such as:

Policy ID / Policy UUID

Application name (app)

Application ID (appid)

The log entry clearly includes application-related fields, making filtering by policy and application a valid and documented way to view these logs.

D . In the Forward Traffic section

Correct.

The log is a UTM Application Control log for traffic passing through a firewall policy.

Such logs are displayed under:

Log & Report Forward Traffic

This is the standard and correct location to view application control, web filter, IPS, and other security profile logs related to user traffic.

Why the other options are incorrect

A . By right clicking the implicit deny policy

Incorrect.

Implicit deny policies do not generate UTM forward traffic logs like the one shown.

Application control logs are generated only by explicit firewall policies with security profiles enabled.

B . Using the FortiGate CLI command diagnose log test

Incorrect.

diagnose log test is used to test log connectivity and log settings, not to view historical log entries.

It does not display traffic or UTM logs.

According to the FortiOS 7.6 Study Guide and technical documentation, conserve mode is a protective state triggered when memory utilization reaches the Extreme Threshold (typically 95% by default). When this occurs, the FortiGate implements several measures to prioritize system stability over new functionality. One of the primary restrictions is that the FortiGate refuses to accept configuration changes (Statement B). This prevents the system from initiating new processes or allocating additional memory that could lead to a total system crash.

Regarding traffic handling, the behavior is determined by specific 'fail-open' settings. For the IPS engine, if the fail-open global setting is enabled, the FortiGate continues to transmit packets without IPS inspection (Statement D). This ensures that network connectivity is maintained even when the system lacks the memory resources to perform deep packet inspection. In contrast, Statement A is incorrect because the system may skip non-essential actions to save memory. Statement C is incorrect because conserve mode is designed to avoid a system halt; the device remains operational and will automatically exit conserve mode once memory usage drops below the Release Threshold (typically 82%).
