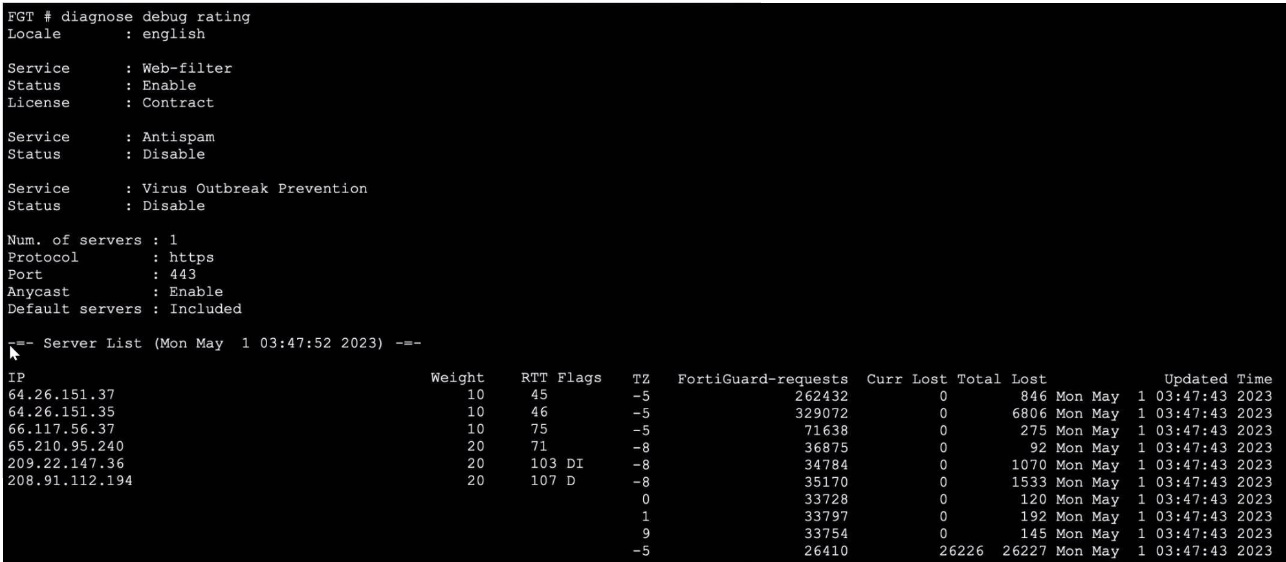

The exhibit displays the output from the diagnose debug rating command on a FortiGate device. This command is used to display information about FortiGuard Web Filtering or other security-related queries performed by FortiGate to FortiGuard servers. Official Fortinet documentation outlines the meaning of each field in the server list. The FortiGate maintains a list of available FortiGuard servers, selecting the optimal server based on factors such as weight, round-trip time (RTT), and regional settings.

The very first entry in the server list after 'Server List' is the server FortiGate initially uses, prioritized by factors such as proximity and RTT. Here, 64.26.151.37 is listed first, and the FortiGuard-requests value confirms that this server handled the highest number of requests.

The IPs, weights, and lost/failed counters are monitored for server performance and selection over time. FortiGate's default operational logic is to try the first entry for contract validation and use the next in the list if the first is unavailable or has high latency or packet loss.

There is no direct correlation between the Weight and the number of FortiGuard-requests. The servers with higher or lower weights may still handle different request volumes based on availability and performance.

The TZ (time zone) value's sign (positive or negative) does not affect server preference; it is informational, showing the server's location relative to UTC, not a rating metric.

DNS query results for FortiGuard servers are not shown here, and the provided servers are not returned in DNS query order.

This command and interpretation are detailed in the FortiOS Administration Guide's section describing FortiGuard server selection and contract validation processes.

FortiOS Administration Guide: FortiGuard Service Connectivity and Debugging

Official Technical Notes on diagnose debug rating output structure

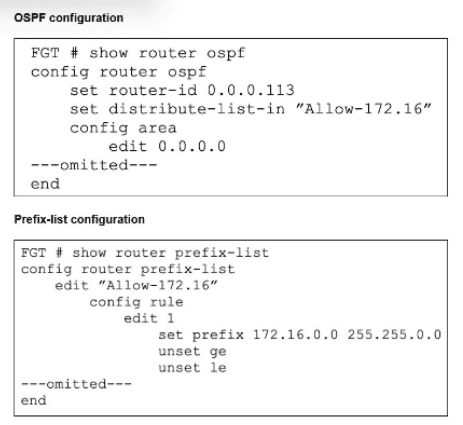

The issue is caused by the strict matching logic of the configured Prefix List.

Current State: The rule is edit 1 with set prefix 172.16.0.0 255.255.0.0 and both ge (greater than or equal) and le (less than or equal) are unset.

Behavior: When ge and le are unset, FortiOS requires an exact match of the subnet mask. The current rule only matches the exact network 172.16.0.0/16. It denies 172.16.52.0/24 because the mask (/24) does not match the rule's mask (/16).

To fix this and inject 172.16.52.0/24, you must modify the list to match the /24 mask:

A . Add another entry to the prefix list to specifically allow the 172.16.52.0/24 network:

Creating a new rule (e.g., edit 2) with set prefix 172.16.52.0 255.255.255.0 will provide an exact match for the incoming route, allowing it to pass the distribute-list.

B . Change the ge value to 17:

By configuring set ge 17 on the existing rule (conceptually 172.16.0.0/16 ge 17), you change the logic from 'exact match' to 'range match'.

This configuration tells the router to match any prefix starting with 172.16.x.x that has a subnet mask length of 17 or greater.

Since the incoming route is a /24, and 24 is greater than 17, the route will match the prefix list and be accepted.

Why other options are incorrect:

C: The option text appears to read 'Change the ... value to 16'. If this refers to le 16, it would enforce the mask to be exactly /16 or less, which still excludes /24.

D: Changing the default behavior to implicit allow defeats the purpose of a filter (security control) and is not a standard configuration step for fixing a single missing route.

FortiGate Security 7.6 Study Guide (Routing): 'In prefix-lists, if ge and le are not used, the subnet mask must match exactly. To match subnets within a range, you must define the prefix length boundaries using ge or le.'

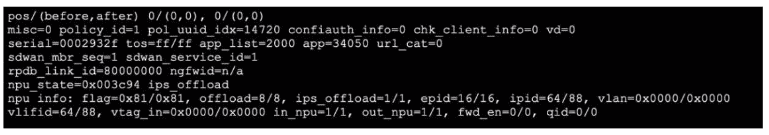

In the provided session table output, the following details justify the answers:

Policy ID Match: The line policy_id=1 directly confirms that this session was matched by Firewall Policy ID 1. According to Fortinet's session table documentation, the policy_id field always references the policy that allowed this session, so this is a clear indicator.

Session Offloading: The presence of the strings npu_state, ips_offload, and notably the NPU info section such as offload=8/8, ips_offload=1/1 shows that this session has been offloaded to the Network Processor Unit (NPU). Fortinet technical documentation states that 'offload' values greater than zero in both directions (and an NPU info section) affirm that NPU hardware processing (fast path) is handling this traffic, thus the session is not being handled in software only.

Other options:

VLAN Tagging (vlan=0x0000/0x0000): This means no VLAN tag is assigned to this session.

NP7: The actual NPU model handling the session isn't exposed in this snippet--the offload parameters shown are generic and not specific to NP7 hardware, so it cannot be concluded from the session data.

Fortinet Technical Tip: FortiGate Session Table and NPU Offloading

FortiOS Diagnostics Guide: Policy ID, Offload, and VLAN Session Table Fields

To display debug output on FortiGate devices, you must always run both the application-specific debug command and the global debug enable command. The commanddiagnose debug application ike -1sets up the detail level for the IKE daemon debug, but it doesnot display any debug output on its own. As described in the FortiOS CLI debugging manuals, the commanddiagnose debug enableactivates debug output on the console, making all previously set debugs visible. This is especially important for VPN troubleshooting---without the enable command, no output appears even if there is VPN traffic.

The correct diagnostic sequence is:

diagnose debug application ike -1

diagnose debug enable

This procedure is found in every FortiOS CLI debug tutorial and troubleshooting workflow.

FortiOS CLI Reference: Debugging VPNs and Real-time Debug Output

FortiGate VPN Troubleshooting Guide: Required Steps for Debug Output

Based on the Fortinet FCSS - Network Security 7.6 documents and the analysis of the provided exhibits, here are the verified answers.

Questio ns no: 93

Verified Answer: B

Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:

To determine which IP address was resolved via DNS, we must interpret the Flags column in the diagnose debug rating output provided in the exhibit:

Analyze the Flags:

Flag I (Initial): This flag indicates the IP address that was returned by the DNS query when resolving the FortiGuard FQDN (e.g., service.fortiguard.net). It acts as the 'seed' or initial contact point.

Flag D (Discovered): This flag indicates servers that were not resolved via DNS but were learned dynamically from the FortiGuard network during protocol exchanges (server lists sent by the initial server).

Flag F (Failed): Indicates a server that the FortiGate tried to contact but failed.

Examine the Exhibit:

The IP address 209.22.147.36 has the flag I next to it.

The IP 208.91.112.194 has the flag D.

The IP 121.111.236.179 has the flag F.

Conclusion:

Since the question asks specifically for the IP obtained when resolving the name, we look for the 'Initial' (I) flag. Therefore, 209.22.147.36 is the correct answer.

Comprehensive and Detailed Explanation with all FCSS - Network Security 7.6 documents:

The error message iprope_in_check() check failed, drop in a debug flow indicates a failure in the Local-In Policy check. This function determines whether traffic destined to the FortiGate itself (management traffic or local services) is allowed.

C . The packet was dropped because the trusted host list is misconfigured:

Reason: If an administrator has configured Trusted Hosts (limiting administrative access to specific source IPs), and a packet arrives from an unauthorized IP, the iprope_in_check function will reject it immediately to protect the device.

D . The packet was dropped because the requested service is not enabled on FortiGate:

Reason: The most common cause for this error is that the destination interface does not have the specific service (e.g., SSH, HTTPS, PING) enabled in its set allowaccess configuration. If the service is not listening/allowed on that port, the input check fails and drops the packet.

Why other options are incorrect:

A: If traffic is dropped by a standard firewall policy (traffic passing through the FortiGate), the debug message is typically denied by policy x or no matching policy, not an iprope (Input Property/Policy Enforcement) failure.

B: A routing issue where the source is unreachable results in a Reverse Path Forwarding (RPF) failure, typically logged as reverse path check fail, drop.

FortiGate Security 7.6 Study Guide (Security Fabric & FortiGuard): 'In diagnose debug rating, the 'I' flag stands for Initial, which is the IP address resolved by DNS. The 'D' flag stands for Discovered.'

Questio ns no: 94

Verified Answer: C, D

FortiGate Troubleshooting Guide (Debug Flow): 'The message iprope_in_check() check failed indicates the packet was denied by the Local-In policy, often due to missing allowaccess settings or Trusted Host restrictions.'
