FCSS_LED_AR-7.6: Fortinet NSE 6 - LAN Edge 7.6 Architect Dumps

Free Fortinet FCSS_LED_AR-7.6 Exam Dumps August 2026

Here you can find all the free questions related with Fortinet NSE 6 - LAN Edge 7.6 Architect (FCSS_LED_AR-7.6) exam. You can also find on this page links to recently updated premium files with which you can practice for actual Fortinet NSE 6 - LAN Edge 7.6 Architect Exam. These premium versions are provided as FCSS_LED_AR-7.6 exam practice tests, both as desktop software and browser based application, you can use whatever suits your style. Feel free to try the Fortinet NSE 6 - LAN Edge 7.6 Architect Exam premium files for free, Good luck with your Fortinet NSE 6 - LAN Edge 7.6 Architect Exam.

Question No: 1

MultipleChoice

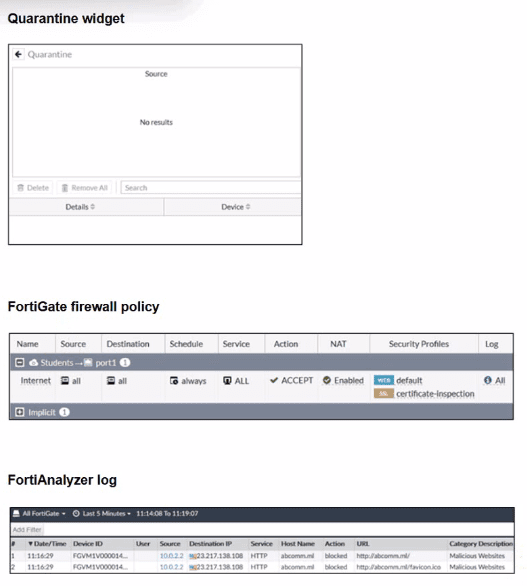

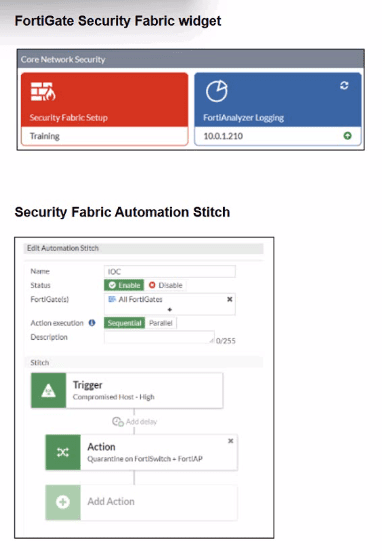

Refer to the exhibits.

Examine the FortiGate configuration, FortiAnalyzer logs, and FortiGate widget shown in the exhibits.

Security Fabhc quarantine automation has been configured to isolate compromised devices automatically. FortiAnalyzer has been added to the Security Fabric, and an automation stitch has been configured to quarantine compromised devices.

To test the setup, a device with the IP address 10.0.2.1 that is connected through a managed FortiSwitch attempts to access a malicious website. The logs on FortiAnalyzer confirm that the event was recorded, but the device does not appear in the FortiGate quarantine widget.

Which two reasons could explain why FortiGate is not quarantining the device? (Choose two.)

Options

AThe IOC action should include only the FortiSwitch in the quarantine.

BThe SSL inspection should be set to deep-Inspection

CThe malicious website is not recognized as an indicator of compromise (IOC) by FortiAnalyzer.

DThe threat detection services license is missing or invalid under FortiAnalyzer.

Answer
C, DExplanation

In this scenario:

FortiGate + FortiAnalyzer are part of theSecurity Fabric

AnAutomation Stitchis configured:

Trigger:Compromised Host -- High(IOC from FortiAnalyzer)

Action:Quarantine on FortiSwitch + FortiAP

A test device10.0.2.1visits a malicious website.

FortiAnalyzer logs show the event, butFortiGate does NOT quarantine the device.

This means theautomation did not receive an IOC trigger, OR theFabric did not classify it as a compromise.

Let's evaluate each answer option.

C. The malicious website is not recognized as an indicator of compromise (IOC) by FortiAnalyzer.

Correct.

For FortiGate to quarantine a device:

FortiAnalyzer must classify the event as aCompromised Host High / Medium / Critical

FortiAnalyzer must generate anIOC event

FortiGate must receive that IOC through the Fabric

Even though the FAZ log shows:

Action = blocked

Category = Malicious Websites

That doesNOTautomatically mean an IOC was generated.

A blocked website event isnot always an IOCunless:

It is included in theIOC database

FAZ'sAnalytics / UTM / IOCengine marks it as a compromise

Thus, if FAZ only logs a ''Malicious Website'' event butdoes not classify it as an IOC,

Question No: 2

MultipleChoice

You are setting up a captive portal to provide Wi-Fi access for visitors. To simplify the process, your team wants visitors to authenticate using their existing social media accounts instead of creating new accounts or entering credentials manually.

Which two actions are required to enable this functionality? (Choose two.)

Options

ASet up a remote open authorization (OAuth) server for each selected social media platform.

BConfigure only the email login option because a social media login cannot be used with captive portals.

CEnable Account Login as the authentication type and configure a remote LDAP server.

DSet up the FortiAuthenticator internal database as the primary source for user credentials

EConfigure the social login profiles for the supported platforms.

Answer
A, D

Question No: 3

MultipleChoice

In each user certificate, you can define the subject field, expiration date. User Principal Name (UPN), URL for CRL download, and the OCSP URL. How does the detailed configuration of these attributes impact the certificate?

Options

AIt makes the certificate easier to revoke manually because it reduces the need for automatic checks.

BIt limits the validity of the certificate to specific devices and applications, reducing its general usability.

CIt enables precise identification of the user and ensures timely certificate revocation checks.

DIt makes the certificate compatible with a wide range of applications and services by ensuring universal validity

Answer
CExplanation

In user certificates used with FortiGate / FortiAuthenticator / SSL-VPN / 802.1X, the following attributes are important:

Subject field & UPN

Provide a unique identity for the user (CN and/or UPN).

FortiGate can use theSAN/UPNfield for LDAP-integrated certificate authentication.

Expiration date

Limits how long the certificate is valid, enforcing lifecycle and rotation.

CRL URL & OCSP URL

Tell FortiGate (or any relying party)where to check if the certificate has been revoked.

Enablesnear real-time revocationusing OCSP or periodic CRL downloads instead of relying only on expiration.

By carefully configuring these fields:

The certificate uniquely and correctly identifies the user.

Relying systems can performaccurate and timely revocation checks, improving security.

Why other options are wrong:

A: It does the opposite---CRL/OCSP increase automation, not manual revocation.

B: These attributes do not inherently limit a cert to specific devices; that's done via key usage, EKU, or device certs.

D: They don't ''ensure universal validity''; they make the certprecisely boundto one identity with enforceable lifetime and revocation.

Question No: 4

MultipleChoice

What is the expected behavior when enabling auto TX power control on a FortiAP interface?

Options

AFortiGate monitors the signal strength of nearby AP interfaces and adjusts its own transmit power every 30 seconds to match the signal strength of the adjacent AP

BFortiGate measures the signal strength of nearby FortiAP interfaces every 30 seconds and adjusts their transmit power to ensure they remain detectable at -70 dBm.

CFortiGate periodically measures the signal strength of the weakest associated client and adjusts the AP radio power to align with the detected signal strength of that client.

DThe AP periodically evaluates the signal strength of its own transmission from the client perspective and adjusts its power to ensure the signal is detected at -70 dBm.

Answer
CExplanation

Auto TX power control on FortiAP is an RF-optimization feature:

FortiGate (as wireless controller) continuously evaluatesRSSI of associated clientson each FortiAP radio.

The algorithm focuses on theweakest client(the one with the worst signal) and adjusts the AP's transmit power so that this client's signal level stays within a configured / target range.

This helps balance coverage and limit co-channel interference: APs don't transmit at maximum power when clients are close, but will increase power when the weakest client signal drops too low.

Therefore the correct behavior description is:

C-- AP power is adjusted based on the weakest associated client's signal.

Why the others are wrong:

AandBtalk about matching nearby APs' power or forcing everything to --70 dBm, which is not how FortiAP auto TX works.

Dincorrectly states the AP ''evaluates its own transmission from the client perspective''; the AP can only infer client-side conditions from theclient's RSSI at the AP, not the inverse.

Question No: 5

MultipleChoice

In a Windows environment using AD machine authentication, how does FortiAuthenticator ensure that a previously authenticated device is maintaining its network access once the device resumes operating after sleep or hibernation?

Options

AIt temporarily assigns the device to a guest VLAN until full reauthentication is completed.

BIt sends a wake-on-LAN packet to trigger reauthentication.

CIt uses machine authentication based on the device IP address.

DIt caches the MAC address of authenticated devices for a configurable period of time.

Answer
DExplanation

WithAD machine authenticationvia FortiAuthenticator:

When a machine successfully authenticates, FortiAuthenticator records:

Machine account / identity

MAC addressof the device

Associated IP and session info

To handle sleep/hibernation:

FortiAuthenticator keeps acache of authenticated MAC addressesfor a configured timeout.

When the device wakes up and sends traffic again, FortiAuthenticator/FSSO can still treat it as authenticated as long as its MAC is in cache, so access is maintained without forcing a full machine re-auth immediately.

This matches optionD.

A(guest VLAN) is not the standard behavior here.

B(WoL) is unrelated.

C(IP-based) would break as IPs can change; MAC-based caching is what's used.

Question No: 6

MultipleChoice

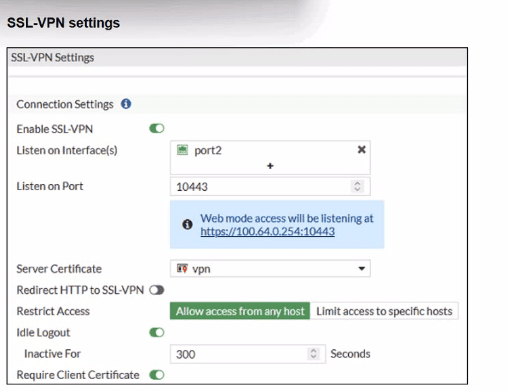

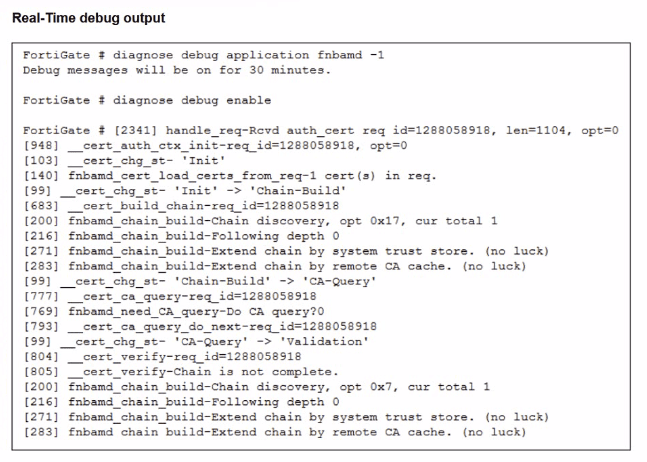

Refer to the exhibits.

Which include debug output and SSL VPN configuration details.

An SSL VPN has been configured on FortiGate. To enhance security, the administrator enabled Required Client Certificate in the SSL VPN settings. However, when a user attempts to connect, authentication fails.

Which configuration change is needed to fix the issue and allow the user to connect?

Options

AEnable Redirect HTTP to SSL-VPN on the SSL VPN configuration page.

BImport the CA that signed the SSL VPN Server Certificate to FortiGate.

CSet the user certificate as the Server Certificate on the SSL VPN configuration page.

DImport the CA that signed the user certificate to FortiGate.

Answer
DExplanation

The SSL-VPN configuration hasRequire Client Certificateenabled. When this is enabled, FortiOS performs two checks:

Normal user authentication(username/password or PKI user)

Additional client certificate check-- the client certificatemust be signed by a CA that FortiGate trusts

FortiOS documentation for ''SSL VPN with certificate authentication'' states:

''The client certificate only needs to be signed by a known CA in order to pass authentication.''

''The CA certificate is the certificate that signed both the server certificate and the user certificate... The CA certificate is available to be imported on the FortiGate.''

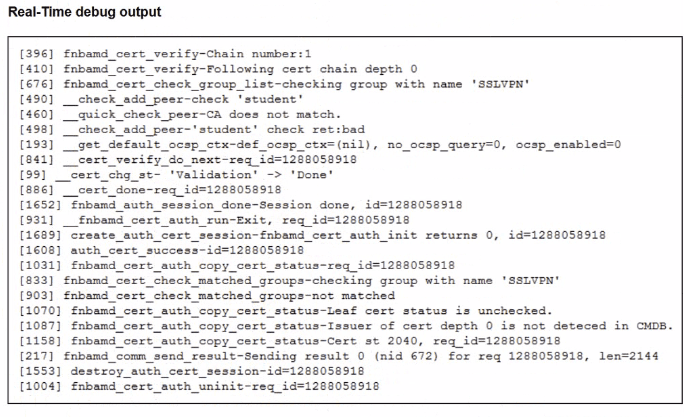

The debug output shows key lines:

__quick_check_peer-CA does not match.

Issuer of cert depth 0 is not detected in CMDB.

This tells us:

FortiGatedoes see the user's certificate,

Butcannot find the issuing CAin its local CA certificate store (''CMDB'' = configuration database).

This means theCA that signed the user certificate has not been importedinto FortiGate.

Now evaluate the options:

A . Enable Redirect HTTP to SSL-VPN-- affects only redirection from HTTP to HTTPS; it has nothing to do with certificate validation.

B . Import the CA that signed the SSL VPN Server Certificate-- the server certificate is already working (the portal comes up) and its CA is not what the debug complains about; the error is about thepeer (user) certificate. Often the same CA signs both, but the failing check specifically says the issuer of the client cert is not in CMDB.

C . Set the user certificate as the Server Certificate-- incorrect; server and client certificates serve different roles.

D . Import the CA that signed the user certificate to FortiGate-- this directly addresses the debug error and aligns with the documented requirement that the CA which issued the user certificate must be known to FortiGate.

Question No: 7

MultipleChoice

Which FortiGuard licenses are required for FortiLink device detection to enable device identification and vulnerability detection?

Options

AFortiGuard Vulnerability Management and FortiGuard Endpoit Protection

BFortiGuard Threat Intelligence and FortiGuard loT Detection

CFortiGuard Threat Intelligence and FortiGuard Endpoint Protection

DFortiGuard Attack Surface Security and FortiGuard loT Detection

Answer
DExplanation

FortiLink device detection relies on FortiGate'sDevice IdentificationandIoT Detectioncapabilities to classify devices connected to FortiSwitch ports.

To enabledevice identificationandvulnerability detectionfor IoT/endpoint devices in LAN Edge deployments, FortiGate must subscribe to the correct FortiGuard services.

1. Required FortiGuard License for Device Identification (IoT Detection)

The FortiOS documentation clearly states:

''IoT detection service... requires anAttack Surface Security Rating service licenseto download the IoT signature package.''

Additionally:

''The following settings are required for IoT device detection:

A validAttack Surface Security Rating service licenseto download the IoT signature package.''

This service provides:

IoT signature package

IoT device classification

Device behavior profiling

This makesAttack Surface Securitymandatory for FortiLink device detection.

2. Required FortiGuard License for Device Vulnerability Detection

FortiOS further clarifies that IoT vulnerabilities require theIoT Detection license, which is included under the same Attack Surface service entitlement:

''To detect IoT vulnerabilities the FortiGate must have a validIoT Definitions license...''

The IoT Definitions license comeswith the Attack Surface Security Rating serviceand is used for:

Scanning connected devices

Identifying IoT/endpoint vulnerabilities

Reporting vulnerability severity

Enabling NAC-based remediation (VLAN steering, port isolation)

In LAN Edge Architect, this license combination is emphasized as a foundational requirement for:

FortiSwitch NAC

FortiLink device profiling

Automated quarantine actions

IoT device classification

Vulnerability-based segmentation

3. Why the Correct Answer Is Option D

OptionDlists:

FortiGuard Attack Surface Security

FortiGuard IoT Detection

These are exactly the services required per FortiOS 7.4.1:

Attack Surface Security Rating provides IoT signature package + vulnerability data

IoT Detection (Definitions) enables actual device-type and vulnerability identification

Together they powerFortiLink Device DetectionandIoT Vulnerability Detection, which are essential LAN Edge security functions.

4. Why Other Options Are Incorrect

A . Vulnerability Management + Endpoint Protection

Not used for FortiLink device detection; Endpoint detection relies on IoT service, not FortiClient.

B . Threat Intelligence + IoT Detection

Threat Intelligence (ThreatIntel DB) is used for FAZ IOC, not LAN Edge device detection.

C . Threat Intelligence + Endpoint Protection

Same issue---does not provide IoT device classification or vulnerability scanning.

LAN Edge 7.6 Architect Context Summary

In LAN Edge designs:

FortiGate acts as the controller for FortiSwitch via FortiLink.

Device detection is done at the FortiGate level using NAC/IoT signature capabilities.

Vulnerability detection enables dynamic segmentation decisions (e.g., move device to quarantine VLAN).

To support this, two licenses aremandatory:

Attack Surface Security(includes Security Rating + IoT Detection DB)

IoT Detection(part of the same entitlement, but explicitly required for vulnerability detection)

Thus the verified answer aligns perfectly with LAN Edge operational requirements and Fortinet documentation.
