Fortinet NSE6_OTS_AR-7.6 Exam - Topic 3 Question 9 Discussion

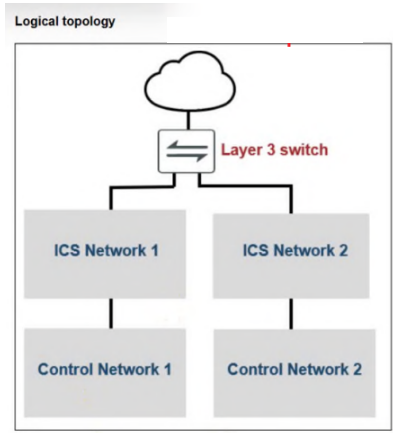

Refer to the exhibit. A partial OT network is shown. You must improve the security of this OT network and implement internal segmentation between network 1 and network 2. How can you achieve the segmentation? (Choose one answer)
D) You can configure forward domain IDs for each network.
A) You can configure universal ZTNA.
B) You can configure one traffic VDOM.
C) You can configure an explicit software switch.

Fortinet NSE6_OTS_AR-7.6 Exam - Topic 3 Question 9 Discussion

Actual exam question for Fortinet's NSE6_OTS_AR-7.6 exam
Question #: 9
Topic #: 3
[All NSE6_OTS_AR-7.6 Questions]

Refer to the exhibit. A partial OT network is shown. You must improve the security of this OT network and implement internal segmentation between network 1 and network 2. How can you achieve the segmentation? (Choose one answer)

Show Suggested Answer Hide Answer
Suggested Answer: D

The correct answer is D. You can configure forward domain IDs for each network. The study guide explains that in FortiGate transparent mode, ''all interfaces belong to the same broadcast domain, even interfaces with different VLAN IDs'' and then states that you should ''use this command to subdivide into multiple broadcast domains'' with set forward-domain <domain_ID>. It further explains that ''interfaces with the same domain ID belong to the same broadcast domain'' and ''traffic arriving on one interface is broadcast only to interfaces in the same forward domain ID.'' This is exactly the mechanism used to separate one internal network from another and improve segmentation.

The other options do not match this requirement. Universal ZTNA is described as controlling user access to applications, not segmenting two internal OT networks. An explicit software switch is for controlling intra-switch or intra-VLAN traffic inside the same software switch broadcast domain, which is more aligned with microsegmentation than separating two routed internal networks. One traffic VDOM does not create segmentation by itself; segmentation with VDOMs requires multiple VDOMs, not one. Therefore, the best choice for segmenting network 1 and network 2 in this scenario is to assign separate forward domain IDs.


Contribute your Thoughts:

0/2000 characters
Brinda
2 days ago
D sounds interesting, but I'm not sure how it works.
upvoted 0 times
...
Phillip
7 days ago
I disagree, B seems more effective for traffic control.
upvoted 0 times
...
Corazon
12 days ago
I think option A is the best choice for ZTNA.
upvoted 0 times
...
Lettie
17 days ago
Forward domain IDs sound familiar, but I can't remember how they apply to internal segmentation in this context.
upvoted 0 times
...
Jesusita
23 days ago
I feel like an explicit software switch could work for segmentation, but I’m not entirely confident about that option.
upvoted 0 times
...
Larae
28 days ago
I think configuring one traffic VDOM might be similar to a practice question we did, but I can't recall the specifics.
upvoted 0 times
...
Aliza
1 month ago
I remember we discussed internal segmentation in class, but I'm not sure if universal ZTNA is the right choice here.
upvoted 0 times
...
