Fortinet Exam NSE4_FGT-7.0 Topic 4 Question 5 Discussion

Actual exam question for Fortinet's NSE4_FGT-7.0 exam

Question #: 5
Topic #: 4

[All NSE4_FGT-7.0 Questions]

Refer to the exhibit.

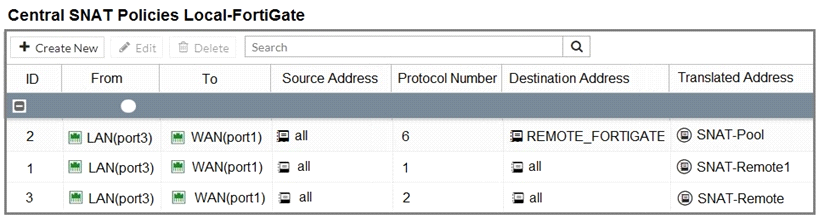

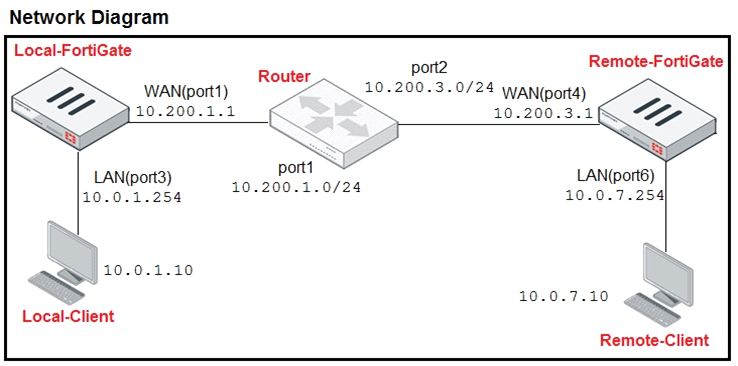

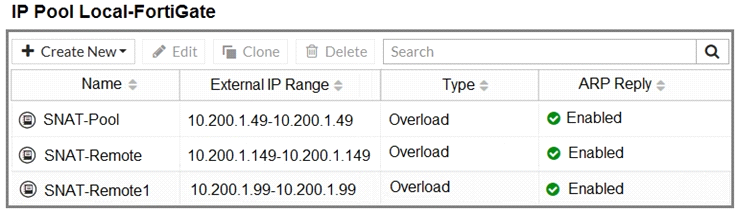

The exhibit contains a network diagram, central SNAT policy, and IP pool configuration.

The WAN (port1) interface has the IP address 10.200.1.1/24.

The LAN (port3) interface has the IP address 10.0.1.254/24.

A firewall policy is configured to allow to destinations from LAN (port3) to WAN (port1).

Central NAT is enabled, so NAT settings from matching Central SNAT policies will be applied.

Which IP address will be used to source NAT the traffic, if the user on Local-Client (10.0.1.10) pings the IP address of Remote-FortiGate (10.200.3.1)?

A10.200.1.149

B10.200.1.1

C10.200.1.49

D10.200.1.99

Show Suggested Answer

Suggested Answer: D
