Discuss F5 Networks 301b Exam Topic 7 Question 36

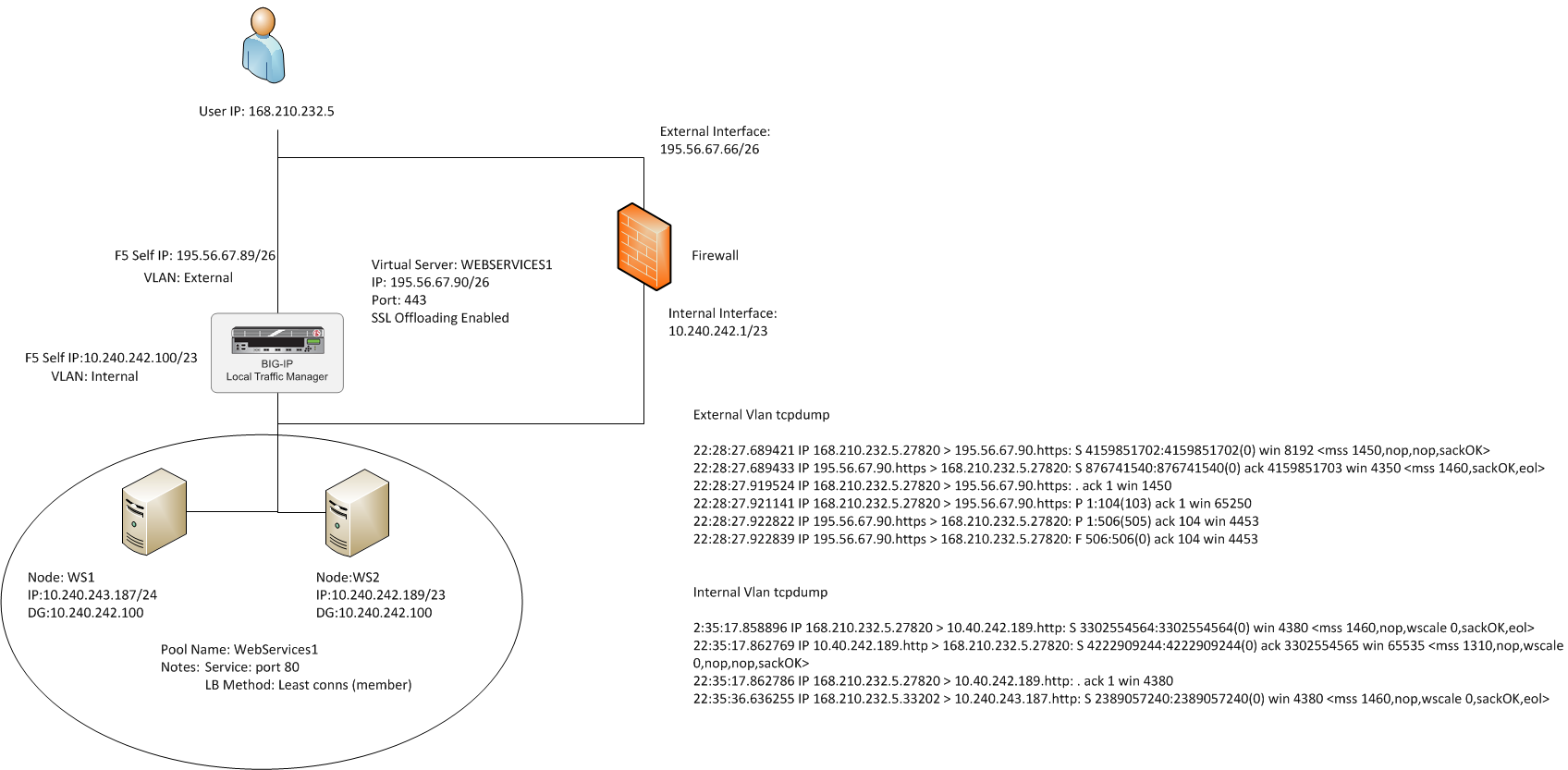

-- Exhibit --

Refer to the exhibit.

An LTM Specialist has a virtual server set up on the LTM device as per the exhibit. The LTM Specialist receives reports of intermittent issues. Some clients are connecting fine while others are failing to connect.

The LTM Specialist does a tcpdump on the relevant interfaces, with the following results extracted:

What is causing the intermittent issues?

AThe firewall is dropping the packets from WS1.

BThe default gateway is inaccessible from WS1.

CThe load balancing (LB) method is inappropriate.

DThe pool members have been set up as an active/standby pair, with WS1 as the standby.

Suggested Answer: B

Get Premium 301b Questions as Interactive Web-Based Practice Test or PDF Real Exam Format Detailed Explanations Instant Access Get Your Practice Test

12 comments · newest first

Pamela 12 months ago

Wait, are the pool members really set as active/standby? That’s surprising!

Claudio 12 months ago

I doubt it's the LB method; that shouldn't cause intermittent issues.

Verona 1 year ago

But what if the default gateway is actually the problem?

Karon 1 year ago

I agree, that seems like a likely issue.

Zena 1 year ago

Looks like the firewall might be dropping packets from WS1.

Erick 1 year ago

I recall something about active/standby setups causing problems if not configured right. Option D sounds plausible, but I need to think more about it.

Miss 1 year ago

I practiced a similar question where the LB method was the issue. I wonder if option C could be the cause here as well, but I’m not completely convinced.

Lisbeth 1 year ago

I’m not entirely sure, but I feel like option B might be relevant too. If the default gateway is down, that could definitely cause connection issues.

Lacresha 1 year ago

I remember studying about packet drops, and I think option A could be a possibility since firewalls can be tricky with certain traffic.

Alease 1 year ago

Hmm, I'm a bit confused. The question mentions the USA PATRIOT Act, but the Fourth Amendment is part of the Constitution. I'll need to think this through carefully.

Kasandra 1 year ago

Based on the requirements to minimize administrative effort, I would go with the Azure portal. It provides a user-friendly interface to manage the DNS zone migration without having to use command-line tools.

Lanie 1 year ago

This is straightforward. The Citrix Cloud-hosted Gateway Service with Citrix Cloud-hosted Workspace is the obvious choice to satisfy the requirements.
