F5 Networks 301b Exam - Topic 7 Question 18 Discussion

Actual exam question for F5 Networks's 301b exam

Question #: 18
Topic #: 7

[All 301b Questions]

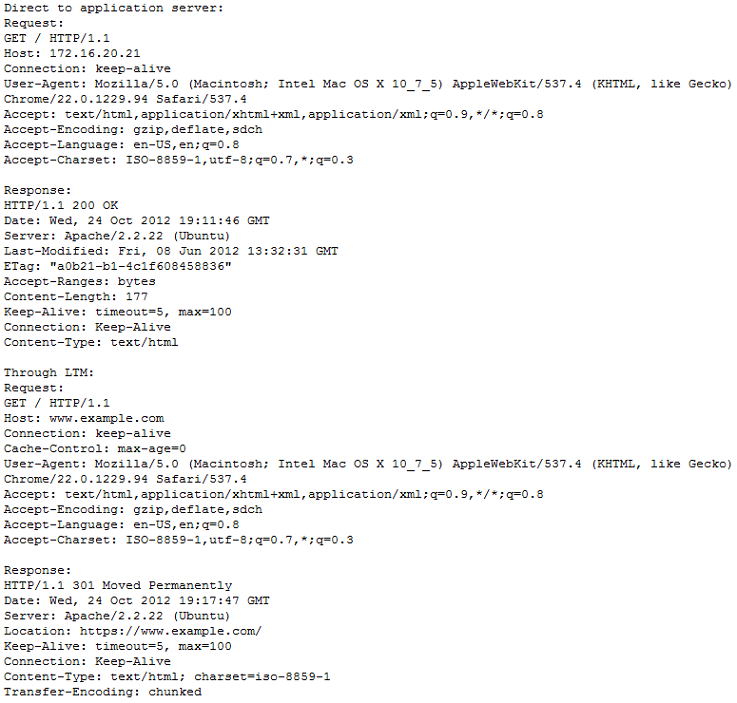

-- Exhibit --

Refer to the exhibit.

An LTM Specialist has created a virtual server to balance connections to a pool of application servers and offload SSL decryption. Clients connect to the application at https://www.example.com/. The virtual server is configured with a clientssl profile but no serverssl profile. The application servers are listening on ports 80 and 443. Users are unable to connect to the application through the virtual server but are able to connect directly to the application server.

What is the root cause of the error?

AThe LTM device is chunking responses.

BThe LTM device is redirecting users to HTTPS.

CThe pool members are configured with the wrong port.

DThe application servers are redirecting users to HTTPS.

Show Suggested Answer

Suggested Answer: D

by Ruthann at May 05, 2022, 12:49 AM

Limited Time Offer

25%

Off

Get Premium 301b Questions as Interactive Web-Based Practice Test or PDF

Contribute your Thoughts:

Submit Cancel

Tammara

3 months ago

Not sure about that, could be something else causing the issue.

upvoted 0 times

...

Jeffrey

3 months ago

I think it's the application servers redirecting to HTTPS.

upvoted 0 times

...

Flo

4 months ago

Wait, are the pool members set to the right ports?

upvoted 0 times

...

Mitsue

4 months ago

Totally agree, that's a common oversight!

upvoted 0 times

...

Thersa

4 months ago

The LTM device needs a serverssl profile to handle HTTPS.

upvoted 0 times

...

Eladia

4 months ago

I vaguely remember something about chunking responses causing issues, but I don't think that's relevant here since users can connect directly to the app servers.

upvoted 0 times

...

Aleta

4 months ago

I think the application servers might be redirecting users to HTTPS, but I can't recall if that would affect the virtual server's ability to connect.

upvoted 0 times

...

Narcisa

4 months ago

This seems similar to a practice question where the ports were misconfigured. I wonder if that's what's happening with the pool members.

upvoted 0 times

...

Katina

5 months ago

I remember we discussed how SSL profiles work, but I'm not sure if the lack of a serverssl profile is the main issue here.

upvoted 0 times

...

Ammie

5 months ago

This sounds like a question about integration testing. I'll need to think through the different types of testing and how they apply to the scenario.

upvoted 0 times

...

Donte

5 months ago

This question seems straightforward, but I want to make sure I understand the requirements correctly before selecting an answer.

upvoted 0 times

...

Curtis

5 months ago

I think National Paper Products might be tricky since it's a subsidiary. Does that exclude it from being an exempt person?

upvoted 0 times

...

Loreen

5 months ago

Wait, this looks tricky. Which one doesn't sound like a legitimate follow-up purpose? Option B about statistics seems a bit odd compared to the others.

upvoted 0 times

...

Denny

5 months ago

I'm not entirely sure, but I think the issue might be related to the next-hop-self command not being implemented. That seems like a common requirement in E-BGP setups.

upvoted 0 times

...
