Free F5 Networks 301b Exam Dumps May 2026
Here you can find all the free questions related with F5 Networks BIG IP Local Traffic Manager LTM Specialist Maintain & Troubleshoot (301b) exam. You can also find on this page links to recently updated premium files with which you can practice for actual F5 Networks BIG IP Local Traffic Manager LTM Specialist Maintain & Troubleshoot Exam. These premium versions are provided as 301b exam practice tests, both as desktop software and browser based application, you can use whatever suits your style. Feel free to try the BIG IP Local Traffic Manager LTM Specialist Maintain & Troubleshoot Exam premium files for free, Good luck with your F5 Networks BIG IP Local Traffic Manager LTM Specialist Maintain & Troubleshoot Exam.MultipleChoice
-- Exhibit --
-- Exhibit --

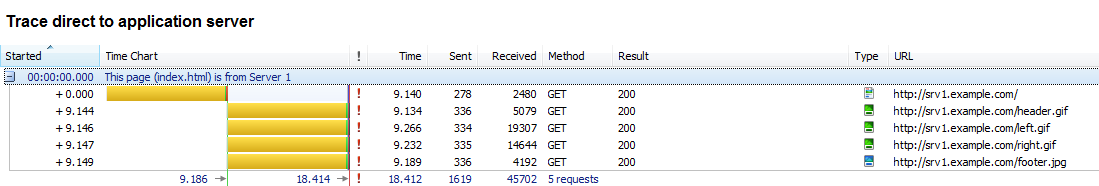

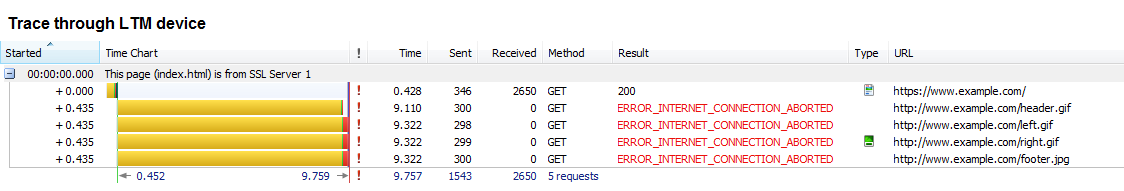

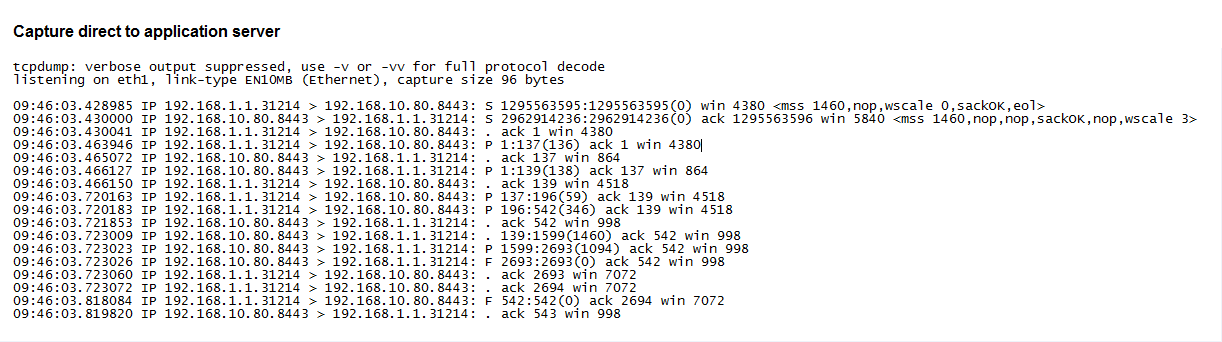

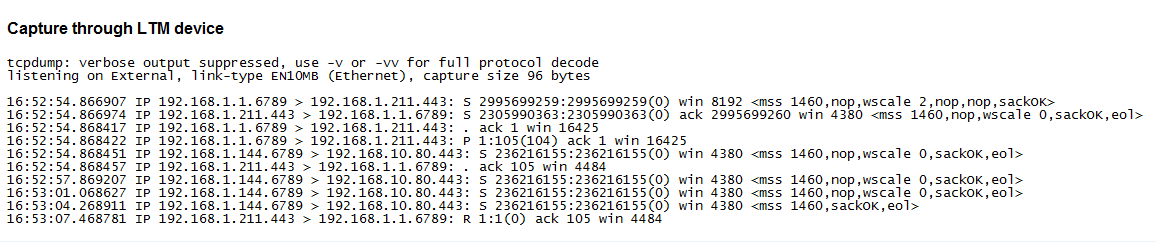

Refer to the exhibits.
An LTM Specialist is troubleshooting an application configured on an LTM device on a one-armed configuration. The application is NOT working through the LTM device but does work when accessed directly via the application servers. The virtual server 192.168.1.211:443 is configured to SNAT using the address 192.168.1.144 and references a pool with the member 192.168.10.80:443. No Client or Server SSL profiles are associated. The LTM Specialist has collected two traffic captures to help determine the issue.
What is the problem with the configuration on the LTM device?
OptionsMultipleChoice
-- Exhibit --
-- Exhibit --

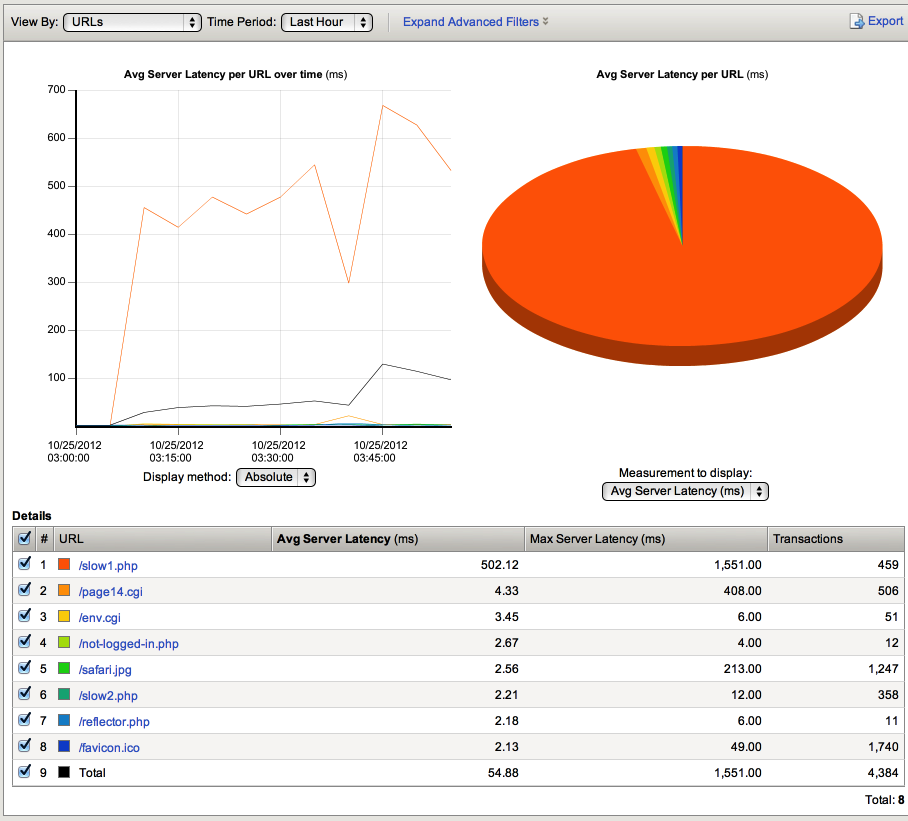

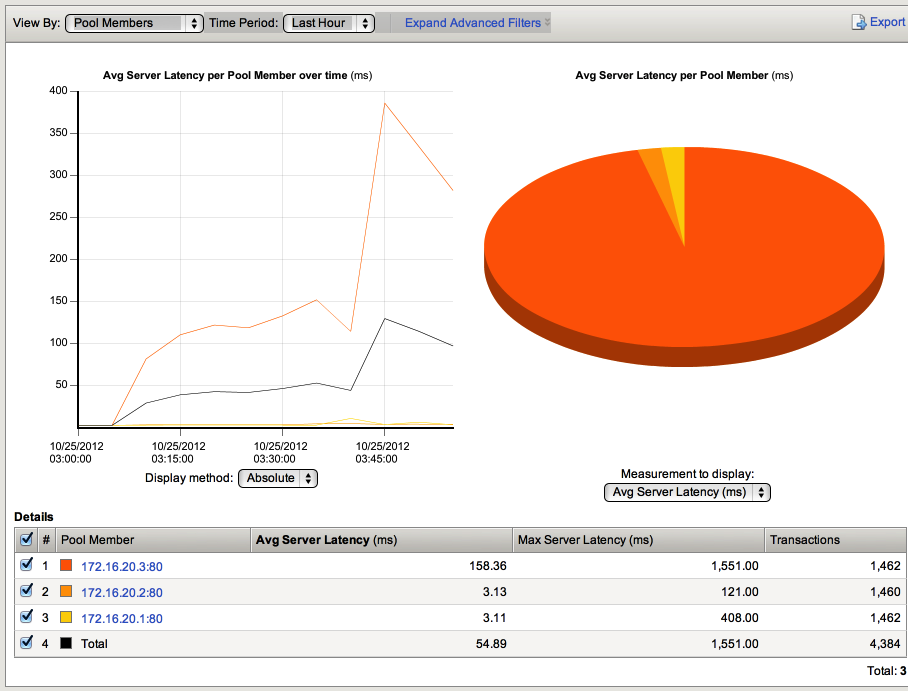

Refer to the exhibits.
Which URL on which server is causing the highest latency for users?
OptionsMultipleChoice
-- Exhibit --
-- Exhibit --
Refer to the exhibits.
When observing the AVR statistics for the HTTPS_VS, an LTM Specialist realizes that HTTP status codes are NOT being recorded.
How should the LTM Specialist modify the configuration to record the HTTP status codes?
OptionsMultipleChoice
-- Exhibit --
-- Exhibit --
Refer to the exhibit.
An LTM Specialist is reviewing the 'test' partition.
Which objects, in order, can be removed from the partition?
OptionsMultipleChoice
The LTM Specialist is writing a custom HTTP monitor for a web application and has viewed the content by accessing the site directly via their browser. The monitor continually fails. The monitor configuration is:
ltm monitor http /Common/exampleComMonitor {
defaults-from /Common/http
destination *:*
interval 5
recv 'Recent Searches'
send 'GET /app/feed/current\?uid=20145 HTTP/1.1\\r\\nHost: www.example.com\\r\\nAccept-EncodinG. gzip, deflate\\r\\nConnection: close\\r\\n\\r\\n'
time-until-up 0
timeout 16
}
A trace shows the following request and response:
Request:
GET /app/feed/current?uid=20145 HTTP/1.1
Host www.example.com
Accept-Encoding gzip, deflate
Connection: close
Response:
HTTP/1.1 302 Moved Temporarily
Date Wed, 17 Oct 2012 18:45:52 GMT
Server Apache
Location https://example.com/login.jsp
Content-Encoding gzip
Content-Type text/html;charset=UTF-8
Set-CookiE. JSESSIONID=261EFFBDA8EC3036FBCC22D991AC6835; Path=/app/feed/current?uid=20145
What is the problem?
Options
