Free CompTIA CV0-004 Exam Dumps

A hybrid cloud deployment model is most suitable given the requirements. This model combines on-premises infrastructure (or private cloud) with public cloud services, providing geographic dispersion while allowing local access to data. It also facilitates the use of legacy applications that might not be well-suited for a full public cloud environment. Reference: The hybrid model is a fundamental concept within the CompTIA Cloud+ curriculum, under the section of Cloud Concepts, that explains deployment models.

Part 1: Router 2

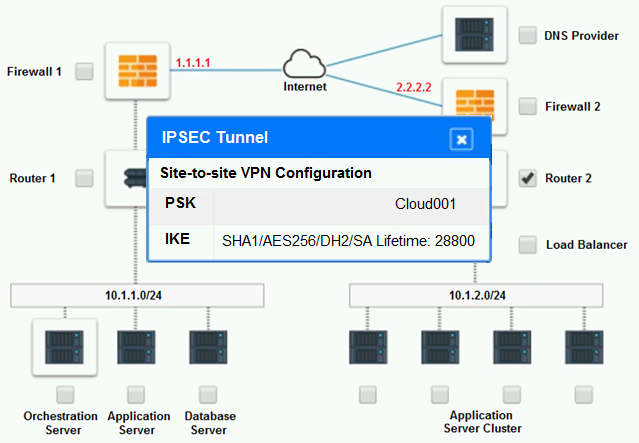

The problematic device is Router 2, which has an incorrect configuration for the IPSec tunnel. The IPSec tunnel is a secure connection between the on-premises datacenter and the cloud provider, which allows the traffic to flow between the two networks. The IPSec tunnel requires both endpoints to have matching parameters, such as the IP addresses, the pre-shared key (PSK), the encryption and authentication algorithms, and the security associations (SAs) .

According to the network diagram and the configuration files, Router 2 has a different PSK and a different address space than Router 1. Router 2 has a PSK of ''1234567890'', while Router 1 has a PSK of ''0987654321''. Router 2 has an address space of 10.0.0.0/8, while Router 1 has an address space of 192.168.0.0/16. These mismatches prevent the IPSec tunnel from establishing and encrypting the traffic between the two networks.

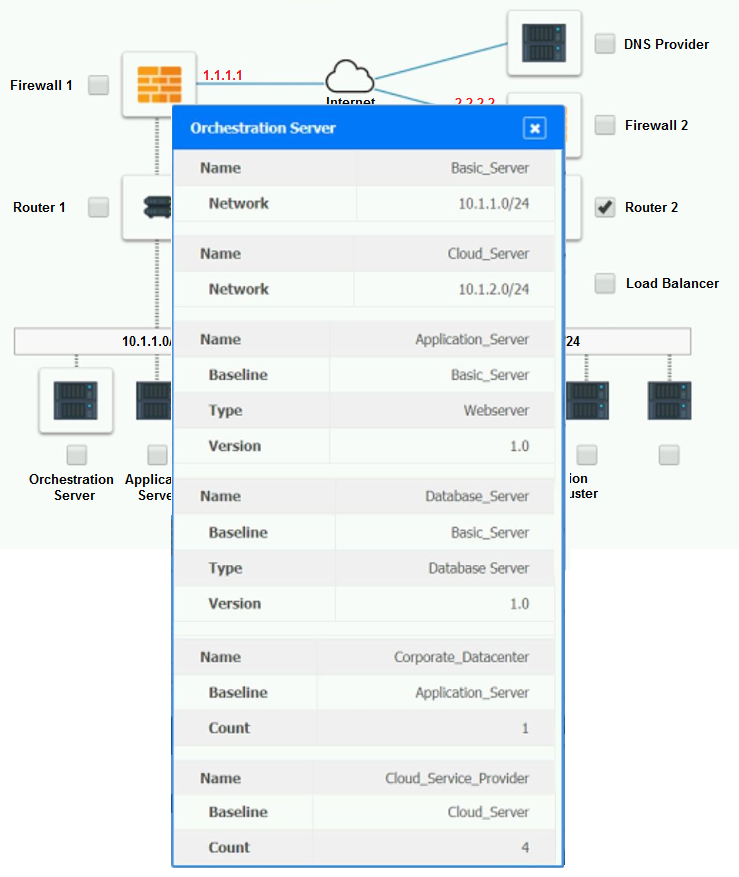

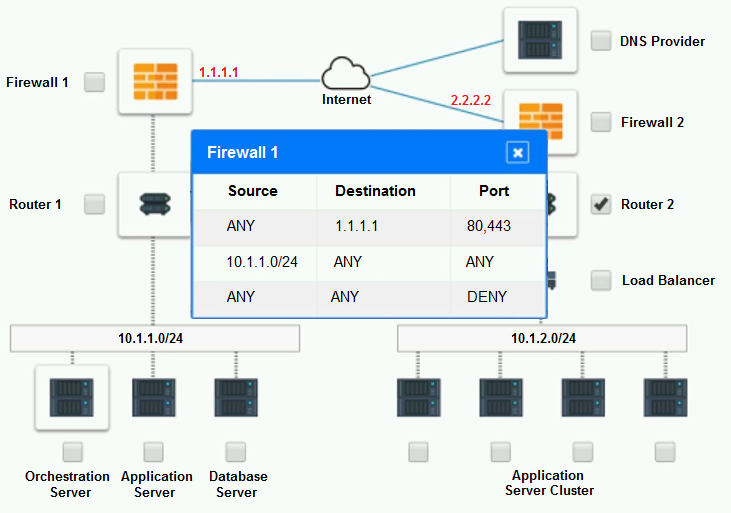

The other devices do not have any obvious errors in their configuration. The DNS provider has two CNAME records that point to the application servers in the cloud provider, with different weights to balance the load. The firewall rules allow the traffic from and to the application servers on port 80 and port 443, as well as the traffic from and to the VPN server on port 500 and port 4500. The orchestration server has a script that installs and configures the application servers in the cloud provider, using the DHCP server to assign IP addresses.

Part 2:

The correct options to provide adequate configuration for hybrid cloud architecture are:

Update the PSK in Router 2.

Change the address space on Router 2.

These options will fix the IPSec tunnel configuration and allow the traffic to flow between the on-premises datacenter and the cloud provider. The PSK should match the one on Router 1, which is ''0987654321''. The address space should also match the one on Router 1, which is 192.168.0.0/16.

Based on the SLA requirements and the information provided in the diagram:

For the Hypervisor:

Slot A fiber channel card:

Port 1 link speed should be set to 16 Gbps since it's connected to Fabric switch A which supports 16 Gbps.

Port 2 link speed should be set to 8 Gbps because it's connected to Fabric switch B which supports up to 8 Gbps.

Slot B fiber channel card:

Port 1 link speed should be set to 16 Gbps since it's connected to Fabric switch A which supports 16 Gbps.

Port 2 link speed should be set to 8 Gbps because it's connected to Fabric switch B which supports up to 8 Gbps.

The issue is with Web app 1 (Finance application).

From the WAF logs, we can see that requests to https://webapp1.comptia.org/FIN/login.html are being blocked (Rule ID 1006). The rule is configured to block access to the finance application's login page. This corresponds to the reported issue of the web-based login prompt not loading.

To remediate the issue, the WAF configuration for Rule ID 1006 should be changed from 'Block' to 'Allow'. This will enable the web-based login prompt to load for the client.

Additionally, the client app configuration indicates that the client laptop (IP 192.168.10.142) is trying to access the service, and the WAF logs show that requests from this IP are being blocked due to the current rule set. Changing the action for Rule ID 1006 will also ensure that legitimate attempts to access the login page from this IP are not blocked.

Steps for remediation:

Go to the WAF configuration.

Find Rule ID 1006 for the Finance application 1.

Change the action from 'Block' to 'Allow'.

Save the changes.

Web application firewall (WAF) configurations typically include rules that define which traffic should be allowed or blocked. Blocking legitimate traffic to login pages can prevent users from accessing the application, which seems to be the case here.

Client application configurations and WAF logs provide valuable insights into the source of the traffic and the rules that are affecting it. It's important to ensure that the rules align with the intended access policies for the application.
