Cisco 300-730 Exam

Certification Provider: Cisco
Exam Name: Implementing Secure Solutions with Virtual Private Networks
Duration: 90 Minutes
Number of questions in our database: 146
Exam Version: May. 31, 2023
300-730 Exam Official Topics:
  • Topic 1: Identify Elliptic Curve Cryptography (ECC) Algorithms/ Troubleshooting Using ASDM And CLI
  • Topic 2: Identify Split Tunneling Requirements For Remote Access VPN Solutions/ Troubleshoot Ipsec
  • Topic 3: Troubleshoot Anyconnect Ikev2 And SSL Vpns On ASA And Routers/ Secure Communications Architectures
  • Topic 4: Identify VPN Technology Based On Configuration Output For Remote Access VPN Solutions/ Troubleshoot Flexvpn
  • Topic 5: Implement DMVPN (Hub-And-Spoke And Spoke-To-Spoke On Both Ipv4 & Ipv6)/ Troubleshoot DMVPN
  • Topic 6: Identify VPN Technology Based On Configuration Output For Site-To-Site VPN Solutions/ Design Site-To-Site VPN Solutions
  • Topic 7: Identify Functional Components Of Flexvpn, Ipsec, And Clientless SSL For Remote Access VPN Solutions
  • Topic 8: Identify Functional Components Of GETVPN, Flexvpn, DMVPN, And Ipsec For Site-To-Site VPN Solutions
  • Topic 9: Implement Flexvpn (Hub-And-Spoke On Both Ipv4 & Ipv6) Using Local AAA
  • Topic 10: Implement Anyconnect Ikev2 Vpns On ASA And Routers/ Clientless SSL Browser And Client Considerations And Requirements
  • Topic 11: VPN Technology Considerations Based On Functional Requirements/ Implement Flex VPN On Routers
  • Topic 12: VPN Technology Considerations Based On Functional Requirements/ Troubleshoot Clientless SSLVPN On ASA And Routers
  • Topic 13: Implement Clientless SSLVPN On ASA And Routers/ Design Remote Access VPN Solutions
  • Topic 14: Implement Anyconnect SSLVPN On ASA And Routers

Free Cisco 300-730 Exam Actual Questions

The questions for 300-730 were last updated On May. 31, 2023

Question #1

A network engineer is installing Cisco AnyConnect on company laptops so that users can access corporate resources remotely. The VPN concentrator is a Cisco router running IOS-XE 16.9.1 code and configured as a FlexVPN server that uses local authentication and *$Cisc431089017$* as the key-id for the IKEv2 profile. Which two steps must be taken on the computer to allow a successful AnyConnect connection to the router? (Choose two.)

Reveal Solution Hide Solution
Correct Answer: A, D

Question #2

A user is trying to log in to a Cisco ASA using the clientless SSLVPN feature and receives the error message "clientless (browser) SSLVPN access is not allowed". Which step should the Cisco ASA administrator take to resolve this issue?

Reveal Solution Hide Solution
Question #3

Which feature allows a DMVPN Phase 3 spoke to switch to an alternate hub when the primary hub is unreachable?

Reveal Solution Hide Solution
Correct Answer: B

The DMVPN-Tunnel Health Monitoring and Recovery (Backup NHS) feature allows you to control the number of connections to the Dynamic Multipoint Virtual Private Network (DMVPN) hub and allows you to switch to alternate hubs in case of a connection failure to the primary hubs. https://www.cisco.com/en/US/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-2mt/sec-conn-dmvpn-backup-nhs.html#:~:text=The%20DMVPN%2DTunnel%20Health%20Monitoring%20and%20Recovery%20(Backup%20NHS),failure%20to%20the%20primary%20hubs.

Backup NHS, or Next Hop Server, is a feature of DMVPN Phase 3 that allows a spoke router to switch to an alternate hub when the primary hub is unreachable. This is accomplished by using a secondary IP address for the hub router, which is used as the next hop for any traffic sent by the spoke router to the hub.


Question #4

Which DMVPN feature allows spokes to be deployed with dynamically assigned public IP addresses?

Reveal Solution Hide Solution
Correct Answer: B

Question #5

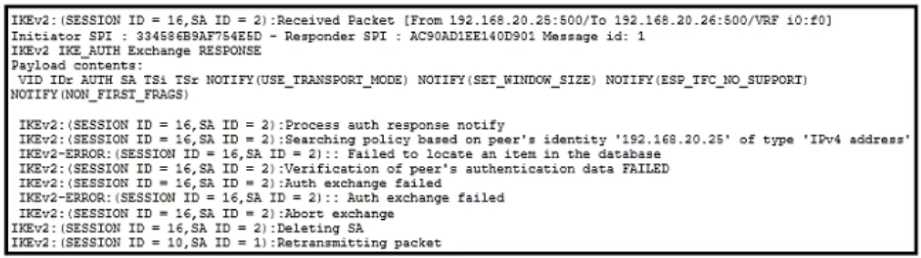

Refer to the exhibit.

An engineer is diagnosing an issue that occurred after a router at a branch site was assigned a new address. Based on the debugs, what must be done to resolve this issue?

Reveal Solution Hide Solution
Correct Answer: D
