Refer to the exhibit.
A customer is deploying a WAN with these requirements: *Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0724 from the Cisco ACI fabric *Reachability to the WAN users must be permitted only for the servers that are located in vrf_prod.
Which settings must be configured to meet these objectives?

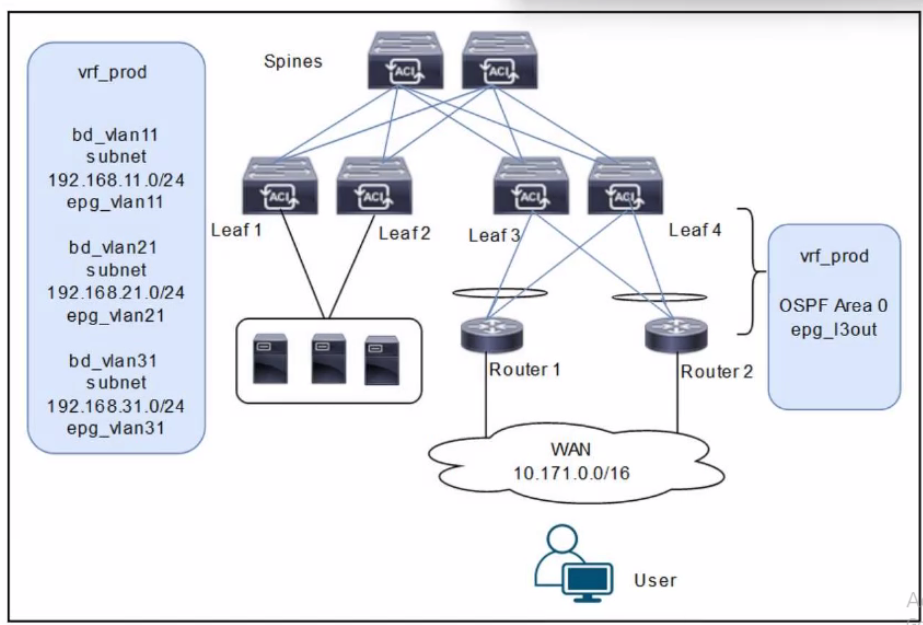

The scenario involves deploying a WAN with Cisco ACI, where Routers 1 and 2 (connected via an L3Out with OSPF Area 0) must receive specific routes (192.168.11.0/24 and 192.168.21.0/24) from the ACI fabric, and reachability to WAN users must be permitted only for servers in vrf_prod. The diagram shows three bridge domains (bd_vlan11, bd_vlan21, bd_vlan31) with their respective subnets and EPGs, all under vrf_prod, along with an L3Out (epg_l3out) for WAN connectivity.
Requirement Analysis
Routers 1 and 2 must receive only routes 192.168.11.0/24 and 192.168.21.0/24:
These subnets belong to bd_vlan11 and bd_vlan21, respectively. To advertise these routes to Routers 1 and 2 via the L3Out, they must be marked with the appropriate scope in the bridge domain configuration.
In ACI, the 'Advertised Externally' scope on a subnet ensures that it is advertised to external routers via the L3Out routing protocol (OSPF in this case).
Reachability to WAN users must be permitted only for servers in vrf_prod:
This implies that only the subnets in vrf_prod (192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24) should be accessible, but WAN users should only reach specific subnets based on policy.
The external EPG (epg_l3out) represents the WAN users (10.171.0.0/16), and its subnet scope must control inbound reachability.
The subnet 192.168.31.0/24 (bd_vlan31) should not be advertised to the WAN, as it is not listed in the routes Routers 1 and 2 should receive.
Option Evaluation
A . Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:
Setting 192.168.11.0/24 and 192.168.21.0/24 as 'Private to VRF' means they are not advertised externally, which fails the requirement for Routers 1 and 2 to receive these routes.
Setting 192.168.31.0/24 as 'Advertised Externally' incorrectly advertises this subnet to the WAN, which is not desired.
The 'External Subnets for External EPG' scope on 0.0.0.0/0 allows WAN users to reach all subnets in vrf_prod, which is correct for reachability.
Conclusion: Fails the first requirement (route advertisement).
B . Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Private to VRF. Configure the subnet 192.168.31.0/24 as Advertised Externally. Configure an EPG subnet 0.0.0.0/0 as Shared Route Control Subnet:
Similar to Option A, setting 192.168.11.0/24 and 192.168.21.0/24 as 'Private to VRF' prevents their advertisement to the WAN, failing the first requirement.
Setting 192.168.31.0/24 as 'Advertised Externally' incorrectly advertises this subnet.
The 'Shared Route Control Subnet' scope allows route leaking between VRFs, which is irrelevant here since there is only one VRF (vrf_prod) and no route leaking is required.
Conclusion: Fails both requirements (route advertisement and reachability control).
C . Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Advertised Externally. Configure the subnet 192.168.31.0/24 as Private to VRF. Configure an EPG subnet 0.0.0.0/0 as Shared Route Control Subnet:
Setting 192.168.11.0/24 and 192.168.21.0/24 as 'Advertised Externally' ensures these subnets are advertised to Routers 1 and 2 via OSPF, meeting the first requirement.
Setting 192.168.31.0/24 as 'Private to VRF' prevents its advertisement to the WAN, which aligns with the requirement since only 192.168.11.0/24 and 192.168.21.0/24 should be advertised.
The 'Shared Route Control Subnet' scope on 0.0.0.0/0 in the external EPG is incorrect for controlling reachability. This scope is used for route leaking, not for defining which subnets are accessible from the external EPG.
Conclusion: Meets the first requirement but fails the second (reachability control).
D . Configure the subnets 192.168.11.0/24 and 192.168.21.0/24 as Advertised Externally. Configure the subnet 192.168.31.0/24 as Private to VRF. Configure an EPG subnet 0.0.0.0/0 as External Subnets for External EPG:
Setting 192.168.11.0/24 and 192.168.21.0/24 as 'Advertised Externally' ensures these subnets are advertised to Routers 1 and 2 via OSPF, meeting the first requirement.
Setting 192.168.31.0/24 as 'Private to VRF' prevents its advertisement to the WAN, which is correct since only the specified subnets should be advertised.
The 'External Subnets for External EPG' scope on 0.0.0.0/0 in the external EPG (epg_l3out) allows WAN users (10.171.0.0/16) to reach all subnets in vrf_prod, which includes 192.168.11.0/24, 192.168.21.0/24, and 192.168.31.0/24. This satisfies the second requirement, as servers in vrf_prod are accessible, and contracts can further restrict access if needed (though not specified in the question).
Conclusion: Meets both requirements (route advertisement and reachability).
Final Answer Justification
D is correct because:
It ensures that only 192.168.11.0/24 and 192.168.21.0/24 are advertised to Routers 1 and 2 by setting their scope to 'Advertised Externally.'
It keeps 192.168.31.0/24 private to vrf_prod by setting its scope to 'Private to VRF.'
It allows WAN users to reach all vrf_prod subnets (including servers) by setting 0.0.0.0/0 as 'External Subnets for External EPG,' fulfilling the reachability requirement.
Primary Cisco Reference:
Cisco APIC Layer 3 Configuration Guide, 'Configuring Subnets for L3Out.'
Cisco ACI Routing and Forwarding Guide, 'External EPG and Subnet Scopes.'
Cisco ACI Best Practices, 'Controlling Route Advertisement and Reachability.'
