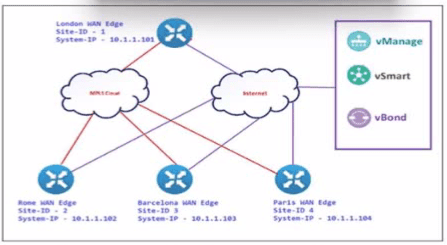

Refer to the exhibit.
An engineer configures Rome WAN Edge 10 use MPLS cloud as the preferred link to reach Paris WAN Edge and use biz-internet as a backup. Which policy configuration must be led in the outbound direction toward Rome to accomplish the task?
A)
B)
C)
D)
To configure Rome WAN Edge to prefer the MPLS cloud for reaching Paris WAN Edge, and use biz-internet as a backup, the policy must be set correctly to define the preference for each transport link.
Understanding TLOCs (Transport Locator): TLOCs represent the transport network paths (MPLS, Internet, etc.) available for SD-WAN. The preference values assigned to TLOCs determine their priority. A lower preference value indicates a higher priority.
Policy Configuration Analysis:
Option A: This option correctly configures the TLOC list for the system IPs representing the MPLS and biz-internet links with the appropriate preferences (500 for MPLS and 400 for biz-internet).
Other options either repeat the TLOC configuration incorrectly or reference wrong system IPs.
Policy Configuration:
policy
lists
tloc-list TLOC-1
tloc 10.1.1.102 color mpls encap ipsec preference 500
tloc 10.1.1.102 color biz-internet encap ipsec preference 400
:
Cisco SD-WAN Policy Framework Guide
Cisco SD-WAN Transport Locator Configuration Documentation
