Question No: 1

MultipleChoice

"A network engineer troubleshoots an issue at a Cisco data center environment with these conditions:

* The data center has Cisco Nexus 9000 Series Switches running the vPC setup.

* The gateway of the servers is an HSRP IP address between the VLAN interfaces configured on both Cisco Nexus switches.

* Some of the client application servers are implementing fast-path forwarding for the return traffic.

* Those servers are sending the return traffic to the VLAN interface MAC address instead of the HSRP MAC address.

The network engineer discovers that some traffic is dropped because it passes the vPC peer link to be forwarded out the vPC interface. What must be configured on the vPC switches to resolve the issue?

Options

Apeer-switch

Bpeer-gateway

Carp synchronize

Dspanning-tree

Question No: 2

MultipleChoice

Refer to the exhibit.

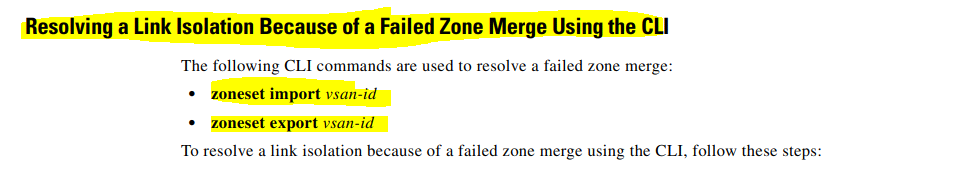

An engineer deploys SAN environment with two interconnected Cisco MDS 9000 Series switches. When the engineer attempts a zone merge, it fails with the error that is presented in the exhibit. Which action resolves the issue?

Options

AImport or export a zone set between the switches to synchronize the switches.

BChange the name of one of the zones to match the other zone set.

CSet the distribute policy of the zone to full.

DEnsure that the zone members have different names.

Question No: 3

MultipleChoice

Refer to the exhibit A network administrator must provide Bash shell access to the support team for all of the Cisco Nexus 9000 Series Switches. The newly created user that is named "bashusers" fails to access the Bash shell. Which action resolves the issue?

Options

AAssociate bashusers with the Cisco NX-OS vdc-admin role and activate the nxapi feature.

BAssociate bashusers with the Cisco NX-OS dev-ops role and activate the bash-shell feature.

CAssociate bashusers with the Cisco NX-OS network-admin role and activate the guestshell feature.

DAssociate bashusers with the Cisco NX-OS network-operator role and activate the bash-shell feature.

Question No: 4

MultipleChoice

Refer to the exhibit.

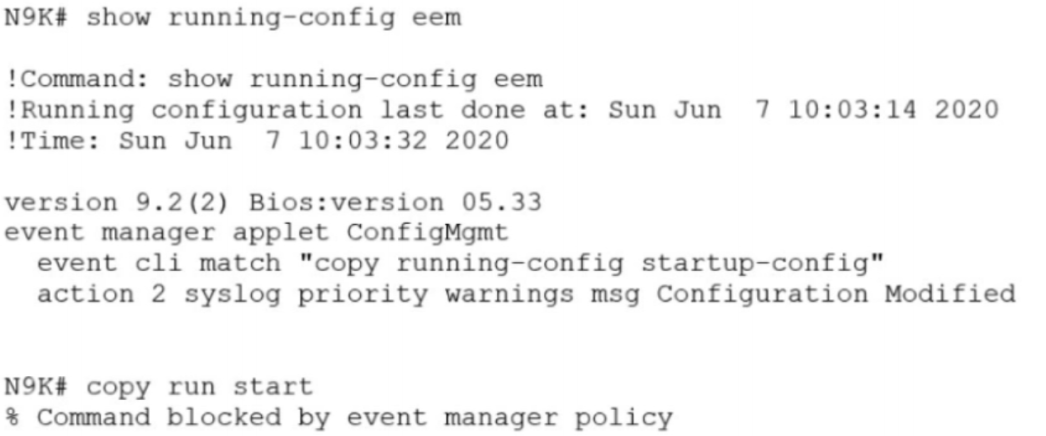

An engineer must save the running configuration to startup-config and generate a syslog message indicating that the configuration was modified, but an error was received. Which action resolves the issue?

Options

AChange the syslog action number to 1.

BSave the configuration using a user with network-admin role.

CUse the extended command copy running-config startup-config.

DAdd event-default as a second action of the EEM script.

Question No: 5

MultipleChoice

An engineer is implementing a new BGP peering in their new data center. The engineer set up the BGP session that peers with the remote end. As soon as the BGP peers attempt to exchange routing prefixes, one of the BGP peers drops the connection. After reviewing the configuration, the engineer reviews the logging messages. The engineer discovers that the router is missing keepalives from the remote end and terminates the session. Which action resolves the issue?

Options

ASet the bgp transport path-mtu-discovery attribute on both peers

BSet the higher values for the BGP keepalive and hold-down timers on both peers

CConfigure the matching BGP AS numbers between the peers

DConfigure the matching BGP passwords between the peers

Question No: 6

MultipleChoice

An engineer must replace a failed memory on a Cisco UCS B-Series Blade Server. After the replacement was done, the server has a ''resolve slot'' warning. Which server maintenance action resolves the issue?

Options

APerform diagnostic interrupt on the server.

BRe-acknowlegement the server.

CReset the server.

DDecomission the server.

Question No: 7

MultipleChoice

Refer to the exhibit.

vPC between switch1 and switch2 is not working. Which two actions are needed to fix the problem? (Select two.)

Options

AMatch vPC domain ID between the two devices.

BConfigure IP address on the interface.

CActivate VLANs on the vPC.

DConfigure vPC peer link and vPC peer keepalive correctly.

EConfigure one of the switches as primary for the vPC.

Question No: 8

MultipleChoice

Refer to the exhibit. An engineer discovered a VFC interface in a down state on a Cisco Nexus Switch. Which action resolves the problem?

Options

AChange the cable between the switch and the server

BReset the Cisco Nexus port toward the file server

CUpdate the CNA firmware and driver versions

DModify the fip keepalive message time to 30 seconds

Question No: 9

MultipleChoice

Refer to the exhibit. A network engineer is configuring the FCoE N_Port virtualization storage area network. After the initial implementation, server 11 fails to connect to the disk array. Which action resolves the issue?

Options

AOn MDS interface vfc 1/1, change switchport mode configuration to VF

BOn N9K interface vfc11, change switchport mode configuration to NP

COn N9K interface vfc11 and MDS interface vfc 1/1, change switchport mode configuration to F

DOn N9K interface vfc11 and MDS interface vfc 1/1, change switchport mode configuration to E

Question No: 10

MultipleChoice

Refer to the exhibits. An engineer is implementing the SAN based on the Cisco MDS 9000 Series Switches. When operating the environment, the engineer encounters the error shown. Which action resolves the issue?

Options

ACopy VSAN 101 to the fabric binding database on the MDS-1 switch

BAdd the World Wide Name of the neighboring switch to the MDS-1 switch

CConfigure the port security feature on the MDS-1 switch

DEnable VSAN 101 on the peer MDS 2 switch fabric interconnect

Question No: 11

MultipleChoice

Refer to the exhibit. A network engineer configures an authentication domain through an LDAP provider on the Cisco UCS Manager for users from different companies to log into their respective organizations created in the UCS Manager. The engineer tests the configuration and notices that any user has login access to any organization in the UCS Manager. Which action should be taken to resolve the issue?

Options

AConfigure the Filter field with sAMAccountName=$company

BConfigure the Attribute field with the company

CConfigure the Attribute field with sAMAccountName=$company

DConfigure the Filter field with the company

Question No: 12

MultipleChoice

Refer to the exhibit. An engineer troubleshoots an OSPF neighborship problem between Router R2 and Router R10. Which action resolves the problem?

Options

AChange area ID on Router R10

BResolve unicast reply from Router R2

CResolve authentication type on Router R10

DChange router ID on Router R10

Question No: 13

MultipleChoice

Refer to the exhibit. VSAN traffic is not routed as expected. Which action should be taken to resolve the issue?

Options

AReset the error packet counter

BConfigure the hello timer to match the neighbor

CConfigure the FSPF dead interval with a value higher than 80 seconds

DReset the inactivity timer on switch-2

Question No: 14

MultipleChoice

Refer to the exhibit. One of the vPC VTEPs fails to route VXLAN traffic to vPC connected hosts. When the issue was being diagnosed, it was discovered that the packets that were expected to be forwarded to the MAC address on the SWITCH-VTEP-1 are instead forwarded to the MAC address on SWITCH-VTEP-2 and then dropped. Which action resolves the issue?

Options

AConfigure a distributed anycast gateway on both peers

BConfigure ip arp synchronize under the VPC domain on both peers

CConfigure peer-gateway under the VPC domain on both peers

DConfigure a different secondary IP address for one of the vPC peers

Question No: 15

MultipleChoice

Refer to the exhibit. A network engineer creates an EEM script to trigger an SNMP notification when a user enters configuration mode, but the trap is not received when the condition is met. Which action resolves the issue?

Options

AAppend action 2.0 event-default to the script

BAppend action 2.0 cli ''conf t'' to the script

CModify snmp-trap strdata ''Configuration changed'' to syslog msg Configuration changed

DModify cli match ''conf t'' to ''snmp match ''conf t''

Question No: 16

MultipleChoice

Refer to the exhibit. A network engineer deploys scripts to the guest shell of a Cisco Nexus switch. The scripts fail to operate properly due to the limited CPU and file system resources that are assigned by default to the guest shell. The engineer allocated more memory and disk space to the guest shell, but the application continues to fail. Which action resolves the issue?

Options

ADisable and enable bash shell

BReboot the guest shell

CRedeploy the bash shell

DUpgrade the guest shell

Question No: 17

MultipleChoice

Refer to the exhibit. A functioning trunk port Ethernet1/48 exists between two identical Cisco Nexus 5000 Series Switches. The interfaces on the switches support the MACsec feature and are configured identically. To enable manual MACsec, an engineer adds the configuration shown in the exhibit to both sides of the trunk. The trunk port stops functioning. Which action should be taken to resolve the issue?

Options

ADisable and then enable the port

BEnable the license for the trunk ports to support MACsec

CLower the MTU value to less than 9216 bytes

DConfigure the PMK with a length of 2048 bytes

Question No: 18

MultipleChoice

Refer to the exhibit. A network engineer is troubleshooting a Cisco Nexus 5000 Series Switch. The interface between the server and the switch is nonoperational and is expected to operate at 10 Gbps. The drain rate of the interface is 3 Mbps. Which action resolves the issue?

Options

AConfigure pause error-disable recovery

BEnable link level pause on the interface

CReset priority flow counters

DSet priority flow control pause
