Free Cisco 300-610 Exam Dumps September 2026

Here you can find all the free questions related with Cisco Designing Cisco Data Center Infrastructure (300-610) exam. You can also find on this page links to recently updated premium files with which you can practice for actual Cisco Designing Cisco Data Center Infrastructure Exam. These premium versions are provided as 300-610 exam practice tests, both as desktop software and browser based application, you can use whatever suits your style. Feel free to try the Designing Cisco Data Center Infrastructure Exam premium files for free, Good luck with your Cisco Designing Cisco Data Center Infrastructure Exam.

Question No: 1

MultipleChoice

Which feature provides a sandbox to convert NX-OS CLI commands to REST-based scripts on Cisco Nexus 7700 Series Switches?

Options

ANX-API

BPostman

CBash shell

DGuest shell

Answer
A

Question No: 2

MultipleChoice

An engineer Installs a B-Series server in a Cisco UCS chassis that contains a pair of UCS-IOM-2208XP I/O modules. The full bandwidth of the I/O module must be utilized. Which two elements should be used in this environment? (Choose two.)

Options

Aeight twinax cables from each I/O module to each fabric interconnect

Bfour twinax cables from each I/O module to each fabric Interconnect

CCisco UCS VIC 1225

DCisco UCS M81KR

ECisco UCS VIC 1280

Answer
A, EExplanation

2208 has 8 uplinks. VIC 1225 only works on C-Series UCS. M81KR has only 2x10G ports. VIC 1280 has 8x10G ports.

Question No: 3

MultipleChoice

A storage administrator receives reports of network delays when database software attempts to access the storage array. The virtual machines that host the database software are installed on different rack servers connected to the Cisco UCS Fabric Interconnect domain. The existing SAN switches are connected to the Fabric Interconnects using two 8 Gb port-channel interfaces to connect the storage array. The storage administrator has decided to deploy iSCSI storage with four 10 Gbps interfaces connected to the Cisco UCS Fabric Interconnects.

Which deployment type resolves the problems with storage contention?

Options

AiSCSI storage with Cisco UCS Fabric Interconnect in the virtual port-channel mode

BiSCSI storage with Cisco UCS Fabric Interconnect using an appliance port

CiSCSI storage appliance on Cisco UCS Fabric Interconnect uplink trunk port

DiSCSI storage appliance on Cisco UCS Fabric Interconnect in the storage end-host mode

Answer
C

Question No: 4

MultipleChoice

An architect is gathering technical requirements tor a large-scale data center with up to 3000 Ethernet ports and 70 ToR switches. The stakeholders agreed that it a ToR switch becomes compromised via its management plane, access to the production data plane must not be possible tram that switch. Which type of management network must the architect recommend in the design?

Options

Aout-of-band dialup

Bin-band Ethernet

Cout-of-band Ethernet

Din-band dialup

Answer
C

Question No: 5

MultipleChoice

A network engineer must design a Cisco HyperFlex solution based on these requirements:

* two clusters in the main data center consisting of five HyperFlex nodes

* one edge node tor the remote branch

* cluster nodes that use one rack unit of space

Which two devices should be used in the remote branch cluster for this design? (Select two.)

Options

AHX240c

BFabric Interconnect 6300

CHX220c

DGigabit Ethernet Switch

EUCS B200

Answer
C, DExplanation

HX240 is excluded because it is 2RU, while the requirement is to have one rack unit of space.

UCS B200 and FI 6300 are excluded because the solution is required in a branch.

Question No: 6

MultipleChoice

An engineer is implementing a storage area network where an NPV is used. The engineer notices that the servers in a storage farm are experiencing heavy traffic contention. The engineer needs to migrate traffic from heavily loaded server interfaces to interfaces with less load. When the new links are deployed, the existing traffic is not rebalanced as expected. Which feature must be used to meet these requirements?

Options

ANPIV

Bmultiple VSAN support

CDVM

Ddisruptive load balancing

Answer
A

Question No: 7

MultipleChoice

A company has several data centers with hundreds of Cisco UCS blade chassis. A network consultant plans to active Cisco Discovery Protocol to the servers to facilitate Layer 1 troubleshooting. For security reasons, the company wants to restrict the servers from sending different MAC addresses to the fabric interconnect after the MAC address from the first packet is learned. Which two policies be modified to support this design? (Choose two.)

Options

APin Group Policy

BNetwork Control Policy

CvNIC Policy

DvNIC Template Policy

EEthernet Adapter

Answer

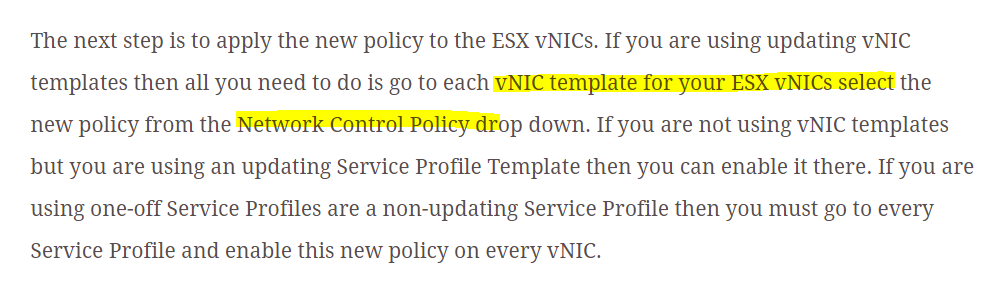

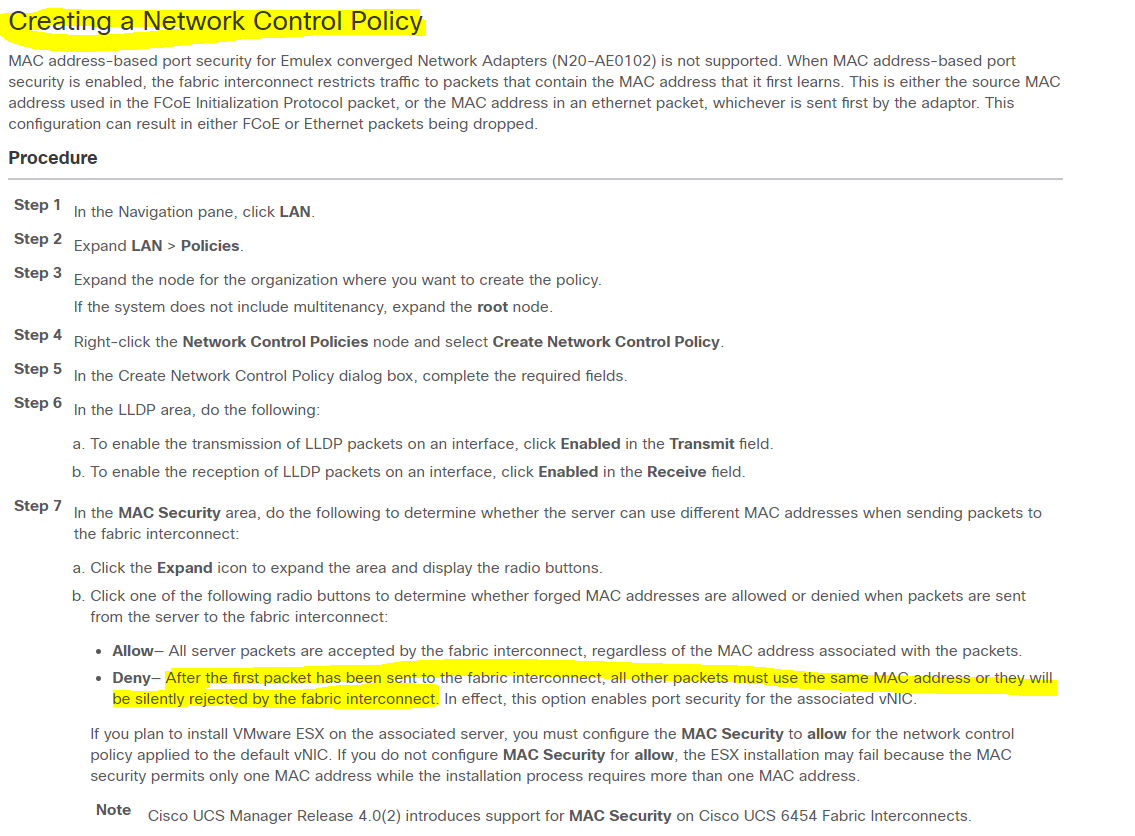

B, DExplanation

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/GUI-User-Guides/Network-Mgmt/4-0/b_UCSM_Network_Mgmt_Guide_4_0/b_UCSM_Network_Mgmt_Guide_4_0_chapter_01010.html

https://jeremywaldrop.wordpress.com/2010/05/03/how-to-enable-cdp-on-cisco-ucs-vnics/

Question No: 8

MultipleChoice

Refer to the exhibit A Cisco engineer is configuring a next-generation Cisco HyperFlex HX data platform with 2 x Cisco UCS 6248UP fabric interconnects. 8 x Cisco HX-Series HX240c-M4SX servers, plus 8 x Cisco UCS B200-M4 blade servers Cisco UCS 5108 blade chassis, and Cisco UCS 2204XP fabric extenders The solution is configured with HX Release 4 5(2a) using VMware ESXi 7 0 U2 After the engineer migrates all customer VMs to the new solution platform, the engineer decides to create HX Native snapshots for all the VMs The engineer performs the operation and notices that some of the VMs are not creating snapshots. What is the most probable reason that the HX Native snapshots are not created?

Options

AVirtual machines are in suspended state

BThe servers have duplicate names

CThe source disk is thick provisioned

DThe node has insufficient datastore space

Answer
C

Question No: 9

MultipleChoice

Refer to the exhibit In this scenario a Cisco engineer is building a loop-free topology where a dedicated layer of the vPC domain adjacent to the aggregation layer which also runs vPC Is used to interconnect the two data centers together. The engineer globally configures a vPC domain identifier on both vPC devices where the domain ID is the same on both peer devices. Which action successfully forms the domain?

Options

AConfigure vPC-peer-keepalive link on both peer devices

BPut peer device interfaces into a suspended state.

CEnable and reuse an ISL Layer 3 trunk port channel

DSynchronize the MAC addresses for the member ports

Answer
A

Question No: 10

MultipleChoice

Refer to the exhibit. A Cisco engineer is configuring a customer scenario with 2 x MDS 9000 switches 24 x UCS B200M6 blade servers. UCS 64S4 Fabric Interconnect in end-host mode and 3 x UCS 5108 server chassis with 2408 Fabric Extenders The engineer installs 6 x SQL Server 2019 on all blades and then notices that there are read and write latencies What is the best way to balance the utilization across the shared ports?

Options

AEnable 'Only dedicate rate mode

BChange the assigned speed to 8 Gbps Auto.

CSet 4 Gbps performance buffers

DDisable restrictions on oversubscription ratios

Answer
DExplanation

When restrictions on oversubscription ratios are disabled, the bandwidth allocation among the shared ports is proportionate to the configured speed. (If the configured speed is auto, then bandwidth is allocated assuming a speed of 4 Gbps.) For example, if you have three shared ports configured at 1, 2, and 4 Gbps, then the allocated bandwidth ratio is 1:2:4. In Cisco SAN-OS Release 3.0 and later (or when restrictions on oversubscription ratios are enabled), port bandwidths are allocated in equal proportions, regardless of port speed, so, the bandwidth allocation for the same three ports mentioned in the example would be 1:1:1.

Question No: 11

MultipleChoice

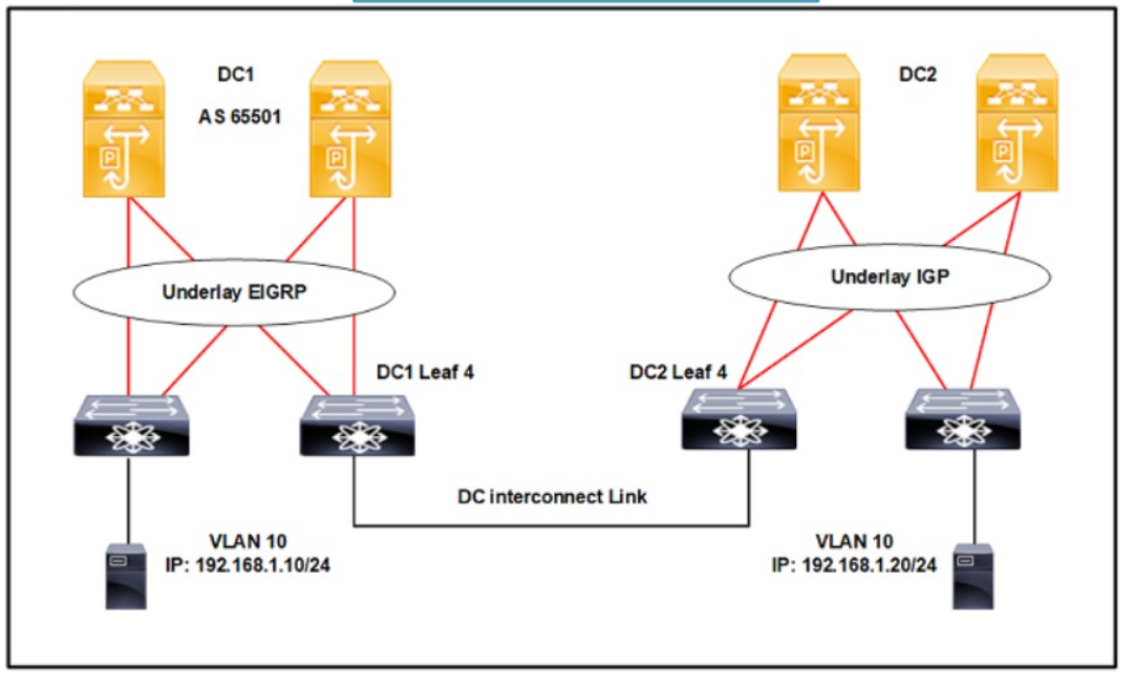

Refer to the exhibit.

The data center DC1 uses VXLAN technology The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology The fabric requires

* endpoint information propagated end-to-end across both data centers

* misconfiguration replicated from DC1 to DC2

Which actions must the design include in DC2 to meet these criteria?

Refer to the exhibit The data center DC1 uses VXLAN technology The company asked a service provider to design another data center called DC2 and stretch EVPN information between the data centers based on the same technology The fabric requires

* endpoint information propagated end-to-end across both data centers

* misconfiguration replicated from DC1 to DC2

Which actions must the design include in DC2 to meet these criteria?

Options

A* Set BGP AS to 65500
* Configure RIP as an underlay IGP

B* Set BGP AS to 65501
* Configure EIGRP as an underlay IGP

C* Set BGP AS to 65501
* Configure RIP as an underlay IGP

D* Set BGP AS to 65500
* Configure IGRP as an underlay IGP

Answer
A

Question No: 12

MultipleChoice

A confidentially and integrity and it must be open standard. The solution must encrypt Ethernet frames regardless of the upper layer protocol used. Which technology must be used to support these requirements?

Options

AGRE

BMACsec

CIPsec

DOTV
The key to solution is ''Ethernet frames''. Frames are layer 2. IPsec encrypts at layer 3.

Answer
B

Question No: 13

MultipleChoice

An engineer must use OTV for Layer 2 connectivity between data centers to support virtual machine mobility between the customer sites. To support this requirement, the engineer must ensure the existence of the same default gateway on both sites. Additionally, the operations team reports high bandwidth utilization on site A and wants to optimize the outbound traffic flows to use a local DC exit point.

Which feature must be used to meet these requirements?

Options

Adata group

BFHRP filter

CARP filter

Dcontrol group

Answer
D

Question No: 14

MultipleChoice

A company runs mission-critical infrastructure in a single data center. Due to business growth, it plans to open more data centers in the coming years. A network engineer is asked to recommend a network technology for data center interconnection that allows scalability and seamless VM mobility while providing maximum security and fault isolation between data centers.

Which technology must be used to meet these requirements?

Options

ATrustSec

BOTV

CCloudSec

DUDLD

Answer
B

Question No: 15

MultipleChoice

An engineer is designing a Cisco Nexus 7000 Series disaster recovery site using the data center interconnect solution to provide gateway redundancy and needs to ensure that devices use gateways in their own data centers.

Which design approach should be used to accomplish this goal?

Options

ACFS localized to its own data center

BvPC localized to its own data center

CFHRP localized to its own data center

DSTP localized to its own data center

Answer
C

Question No: 16

MultipleChoice

Refer to the exhibit.

A cloud service provider deployed three geographically separated Cisco ACI data centers. One of the customers needs to host a clustered application that is spread across the three data centers. The cluster nodes that host the application need a Layer 2 topology to communicate with each other.

Which Cisco ACI topology design meets these requirements?

Options

AMulti-Cloud

BMulti-Site

CMulti-Pod over OSPF EVPN

DMulti-Pod over MP-BGP EVPN

Answer
D

Question No: 17

MultipleChoice

An engineer finishes the initial set up of a VXLAN EVPN network. The engineer is asked to plan for external connectivity that supports redundancy and extends multiple virtual routing and forwarding domains. The requirement is to use the same default gateway addressing across all leaf switches that belong to the VXLAN network.

Which two solutions must be used to meet these requirements? (Choose two.)

Options

ADistributed Anycast Gateway

BVRF-Lite

CInter-Site Network

DDC Interconnect

ESpanning Tree Protocol

Answer
A, D

Question No: 18

MultipleChoice

An engineer must configure an interface for managing and orchestrating a Cisco Nexus device. The interface must be operational if the data and control planes crash, support IPv4 and IPv6 addressing, and have access to its own VRF instance.

Which interface should be used to meet these requirements?

Options

Aphysical interface

Binterface VLAN

Cmanagement interface

Dloopback interface

Answer
C

Question No: 19

MultipleChoice

An engineer is implementing management access to a Cisco Nexus platform. The customer requires a solution that provides isolation between the data and control planes, in addition to management that uses encryption and authentication. The customer will manage the device using both IPv4 and IPv6.

Which two components should be used to meet these requirements? (Choose two.)

Options

Amgmt0 interface

BSSH protocol

CSNMP

DSVI interface

ETelnet protocol

Answer
B, C

Question No: 20

MultipleChoice

A network engineer designs a Cisco Nexus data center network for a client-server farm using a pair of Nexus 9000 Series Switches in a vPC setup. Each server connects with two interfaces to both Nexus switches. The Nexus switches must always initiate the negotiation with the server.

Which feature should be used in this design to ensure traffic is forwarded from the server to the data center network?

Options

APAgP mode desirable

BLACP mode auto

CLACP mode active

DPAgP mode auto

Answer
C
