Question No: 1

MultipleChoice

What is the primary function of a VRF on a router?

Options

AIt enables the router to support multiple separate routing tables, which allows the device to handle overlapping IP addresses.

BIt enables a router to run BGP and a distance vector routing protocol at the same time, which allows it to serve as a VPN endpoint between remote sites.

CIt enables a router to configure VLANs locally, which provides segregation between networks.

DIt enables the router to provide faster switching through the network by using labels to identify the input and output interfaces for neighbor routers.

Question No: 2

MultipleChoice

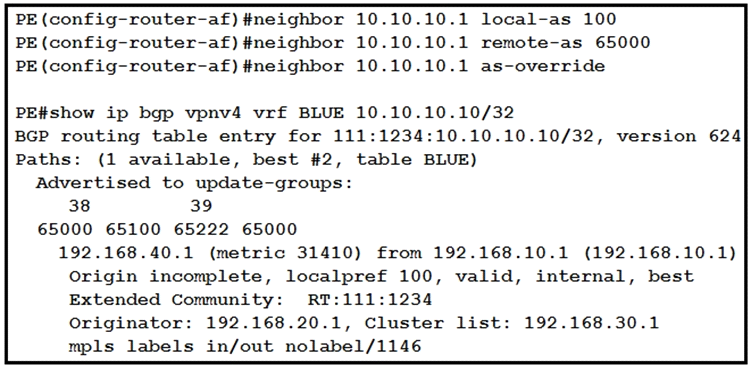

Refer to the exhibit.

While provisioning a new BGP session between the PE and CE router, you issue the as- override command. Which statement describes modification of the prefix before being sent to the CE router (10.10.10.1)?

Options

AThe fourth AS changes, but no other autonomous systems change.

BThe first and fourth autonomous systems change.

CThe second and third autonomous systems change.

DThe first AS changes, but no other autonomous systems change.

Question No: 3

MultipleChoice

The CTO of a company requires the support of a network consultant to deliver an MPLS solution without resigning to a certain degree of redundancy and scalability. Which solution effectively scales to hundreds or thousands of sites?

Options

AL2VPN with the broadcast traffic processed at the ingress PE.

BL3VPN with direct LSP connectivity between all PEs.

CL2VPN by encapsulating multiple frame formats with interworking.

DL3VPN using a hierarchical topology of N-PEs and U-PEs.

Question No: 4

MultipleChoice

Which two statements about MPLS L3 VPN RDs are true? (Choose two.)

Options

AThey enable EIGRP to use address families to separate traffic between IPv4 and VPNv4.

BThey are represented as 32-bit values

CThey are represented as 64-bit values.

DThey enable OSPF to import and export routes into the global routing table of a router.

EThey allow BGP to uniquely identify duplicate routes.

Question No: 5

MultipleChoice

The network engineering group of a large ISP needs to harden the management plane of its Cisco 9000

Series ASRs. While addressing IPv6 ICMP issues, they realized they have to limit the rate at which IPv6 ICMP error messages are sent out on the network. Which command do they need to apply?

Options

Aicmp ipv6 rate-limit unreachable 1000

Bipv6 rate-limit 1000

Cicmp ipv4 rate-limit unreachable 1000

Dipv6 icmp error-interval 50 20

Question No: 6

MultipleChoice

Exhibit:

What is the effect of this configuration?

Options

AThe mroute table is cleared.

BRouter 1 accepts multicast routes with a tag of 12:1

CA Cisco MPLS TE tunnel is generated with 192.168.1.2 as the source IP address of router 1.

DAn LSP virtual interface tunnel is created.

Question No: 7

MultipleChoice

Refer to the exhibit.

An engineer has configured router 1 to provide shared services to clients behind router 2. To complete the implementation so that routes from router 1 are accepted, what must the engineer configure on router 2?

Options

Awith import route targets 101:102 and 202:201

Bwith import route targets 201:202 and 401:402

Cwith export route targets 301:202 and 101:102

Dwith export route targets 201:202 and 401:402

Question No: 8

MultipleChoice

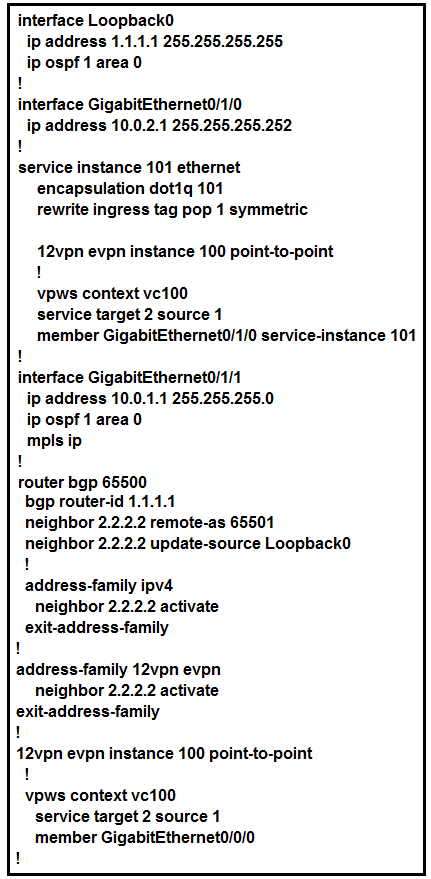

Refer to the exhibit.

An engineer is trying to configure an EVPN VWPS. What is the issue with this configuration?

Options

AThe member in the VPWS context should be the PE-facing interface.

BThe 12vpn evpn command should be instance 101.

CInterface GigabitEthernet0/1/0 should not have any IP address.

DThe service instance and the EVPN instance are different.

Question No: 9

MultipleChoice

While implementing Layer 3 MPLS VPN, which feature should an engineer use at the PEs to transform the customer IPv4 prefixes into a unique 96-bit prefix?

Options

ART

BVC ID

CRD

DPW ID

Question No: 10

MultipleChoice

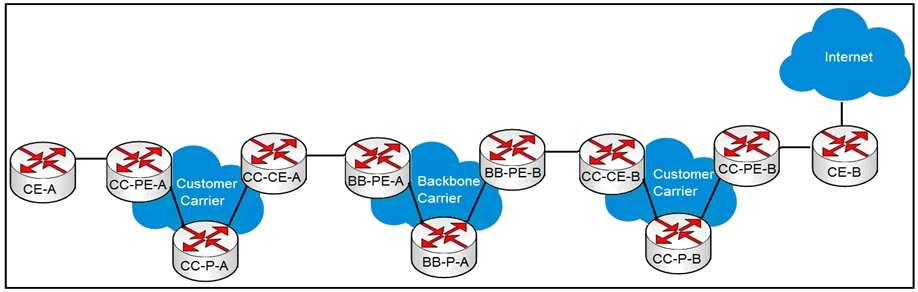

Refer to the exhibit.

A customer carrier running MPLS VPN wants to utilize a backbone carrier to forward traffic and exchange VPNv4 prefixes between the two customer carrier networks depicted. Which two sets of routers must establish MP-iBGP sessions? (Choose two.)

Options

ABB-PE-A and CC-PE-B

BCC-PE-A and CC-PE-B

CBB-PE-A and BB-PE-B

DCC-PE-A and BB-PE-A

EBB-PE-A and BB-P-A

FCC-PE-A and CC-P-A

Question No: 11

MultipleChoice

Refer to the exhibit.

Which statement describes the result of this BGP configuration?

Options

AR1 operates using IPv4 and VPNv4 address families.

BR1 operates on IPv6 only because the bgp default ipv4-unicast command is missing.

CR1 establishes a VPNv4 eBGP relationship with neighbor 192.168.1.1.

DR1 establishes an iBGP relationship with peer 192.168.1.1.
