Question No: 1

MultipleChoice

Which two characteristics unique to SSM when compared to ASM are true? (Select two.)

Options

AIt uses SPT switchover

BIt uses (*,G) exclusively

CIt uses IGMPv3

DIt uses RP

EIt uses (S,G) exclusively

Question No: 2

MultipleChoice

Refer to the exhibit.

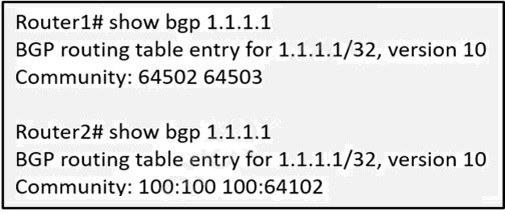

An engineer working on a client's network is trying to solve the BGP community issue on R1 and R2 routers. After displaying the BGP entries, the engineer notices that both routers still have different outputs. Which action must the engineer perform to any of the routers to correct the problem and get the same output?

Options

AExecute the Ip bgp-community new-format command in Router1 .

BRemove the Ip bgp-community new-format command in Router1 .

CAdvertise the route to Router2 as standard community.

DAdvertise the route to Router2 as extended community.

Question No: 3

MultipleChoice

Refer to the exhibit.

Refer to the exhibit. A network engineer just replaced five routers on this OSPF network. When the routing protocol is brought up, R5 cannot reach routes that originate on R1. The engineer verified that all connected links have established neighbor relationships. R5 reaches routes originating on R3 and R4. Which action resolves the issue?

Options

AConfigure an OSPF virtual link to bridge Area 0 on routers R3 and R4.

BConfigure automatic neighbor discovery on RI and R5.

CConfigure OSPF to have a contiguous Area O.

DConfigure each link to be point-to-point.

Question No: 4

MultipleChoice

Refer to the exhibit.

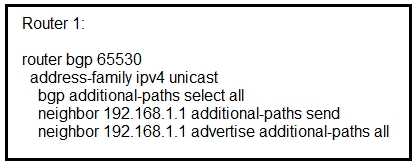

Which statement about this configuration is true?

Options

ARouter 1 sends and receives multiple best paths from neighbor 192.168.1.1

BRouter 1 sends up to two paths to neighbor 192.168.1.1 for all routes

CRouter 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS

DRouter 1 receives only the best path from neighbor 192.168.1.1

Question No: 5

MultipleChoice

Refer to the exhibit.

Refer to the exhibit. Company X is multihomed to a service provider. With the default settings, the link between PE2 and CE1 is the primary link, but company X has asked for the link between PE4 and CE2 to operate as the primary instead. A network engineer used a route map with local-preference to manipulate the routes from PE2 to CE1 to be less desirable and applied the route map on PE2 outbound to CE1. However, the path from PE2 to CE1 is still preferred. Which action must the engineer take so that the desired path is chosen?

Options

AApply local-preference on PE2 outbound to CE2 with a value less than 100.

BConfigure the AS path prepend attribute to increase the number of hops between CE2 and PE4.

CConfigure the weight attribute on PE2 in the outbound direction to CE2 with a value less than 65535.

DApply MED in the outbound direction on PE2 to CE1 with a cost lower than the path from PE4 to CE2.

Question No: 6

MultipleChoice

Refer to the exhibit.

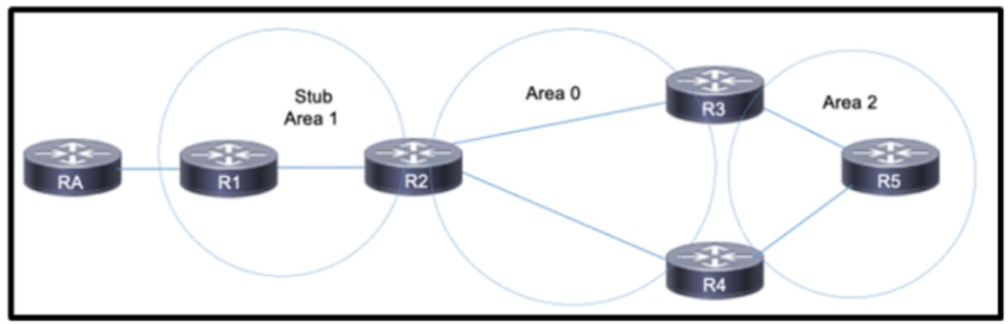

OSPF is running in the core of a company. Router RA is running EIGRP. After the company acquired an additional office, an engineering team connected the two networks from router RA to router R1. OSPF and EIGRP have been mutually redistributed on R1. but the team cannot view the routes on R3. Which action must the team take to resolve the issue?

Options

ACreate a virtual link between R1 and R2.

BConfigure the routers in Area 2 to be in Area 0.

CDisable stub routing in Area 1.

DRedistribute connected routes on R3.

Question No: 7

MultipleChoice

Refer to the exhibit.

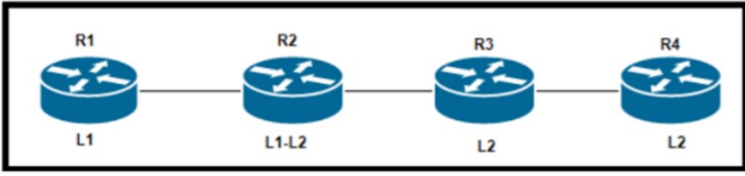

The four routers in this network have formed adjacencies. Router R2 is an IS-IS level 1-2 router that connects to other areas, and the attach bit is set in the R2 level 1 LSP advertisements to R1. Based on the network design, R2 should push level 2 routes from its routing table to the R1 routing table. However, R1 installed a default route in its routing table. Which action resolves this problem?

Options

AUse The is-type level-1-2 backdoor command lo unset the attach bit on R1 and use a prefix List to filter prefixes from R2

BSet the attach bit on R1and use a prefix list to filter prefixes from R2.

CUse the is-type level-1-2 backdoor command to unset the attach bit on R2 and configure a distribute-list to redistribute prefixes to R1

DConfigure R2 as a level 1 router and use a prefix list to filter prefixes to R1.

Question No: 8

MultipleChoice

Refer to the exhibit.

A customer reports that Host-1 is failing to receive streaming traffic from the IPTV source. The engineer has confirmed that hosts on router R2 are receiving traffic normally and that Host-1 is correctly sending subscription messages to join the IPTV stream. Which action must the engineer take to correct the problem?

Options

AConfigure IP PIM SSM and IGMP version 2 under interface GigatxtEthernet 1/0/1 on R3

BConfigure IGMP version 3 under interface GigabitEthernet 1/(V1 on R3

CRemove IP PIM SSM and IGMP from interface GigaEthernet 1/0/1 on R3 and configure under global configuration

DRemove IP PIM SSM from the global configuration on R3 and configure it under the GigabitEthernet 1/0/1 interface

Question No: 9

MultipleChoice

Refer to the exhibit.

An administrator is troubleshooting Internet access issues on a customer's network. After applying this ISIS configuration to R1, the administrator notices that it fails to redistribute the default route into IS-IS. After checking the connectivity between the ISIS router and the ISP router the engineer confirmed there is Layer 3 connectivity between them Which action should be taken to correct the problem?

Options

AAssociate the default route with a VRF

BAdd the default-information originate command to the configuration

CConfigure the default route under any routing protocol other than IS-IS

DConfigure R1 as a Layer 1 router

Question No: 10

MultipleChoice

Refer io the exhibit.

While applying the configurations on two routers an engineer notices that OSPF adjacency Between them remains down Through the ping test the engineer confirmed that both me routers have Layer 3 reachability between them Which action should me engineer take to make the adjacencies to full?

Options

AEnter the command ip ospf authentication in R2 interface

BEnable OSPF just inside the router OSPF process not in the interfaces of any router

CDelete the area 0 authentication message-digest command from the OSPF process in R1

DDelete the area 0 authentication message-digest command from the OSPF process in R2

Question No: 11

MultipleChoice

Refer to the exhibit.

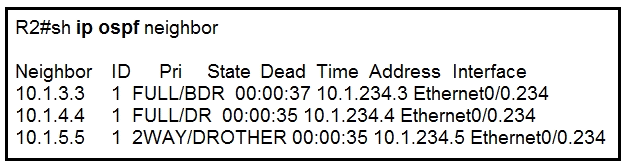

Why is neighbor 10.1.5.5 stuck in ''2WAY'' state?

Options

ARouter ID 10.1.5.5 is not reachable from R2

BOSPF authentication has failed between R2 and 10.1.5.5

CIt is an expected behavior when OSPF network type is broadcast

DOSPF parameters (Area ID or hello interval) are mismatched between R2 and 10.1.5.5
