Question No: 1

MultipleChoice

Refer to the exhibit A CoPP policy is implemented to allow specific control traffic, but the traffic is not matching as expected and is getting unexpected behavior of control traffic. Which action resolves the issue?

Options

AUse match-any instruction in class-map

BCreate a separate class map against each ACL.

CCreate a separate class map lor ICMP traffic.

DUse default-class to match ICMP traffic

Question No: 2

MultipleChoice

Exhibits:

Refer to the exhibit The administrator configured the network devices for end-to-end reachability, but the ASBRs are not propagating routes to each other Which set of configurations resolves this issue?

Options

AOption A

BOption B

COption C

DOption D

Question No: 3

MultipleChoice

Exhibit.

Refer to the exhibit. A network is configured for EIGRP equal-cost load balancing, but the traffic destined to the servers is not load balanced. Link metrics from router R2 to R3 and R4 are the same. Which delay value must be configured to resolve the issue?

Options

A208 oon R3 E0/0

B120 on R4 E0/1

C120/on R3 E0/1

D2200 on R4 E0/1

Question No: 4

MultipleChoice

Configure individual VRFs for each customer according to the topology to achieve these goals :

R1

R2

SW1

SW2

SW3

Options

AExplanation:
Solution:
Use cu-red under interfaces facing SW1 & SW3:
On R1:
interface Ethernet0/0
ip vrf forwarding cu-red
ip address 192.168.1.254 255.255.255.0
Check reachability to SW1:
R1#ping vrf cu-red 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
On R2:
interface Ethernet0/0
ip vrf forwarding cu-red
ip address 192.168.2.254 255.255.255.0
Check reachability to SW3:
R2#ping vrf cu-red 192.168.2.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
!!!!!
Use vrf cu-green for SW2 & SW4:
On R1:
interface Ethernet0/1
ip vrf forwarding cu-green
ip address 192.168.20.254 255.255.255.0
Test reachability to SW2:
R1#ping vrf cu-green 192.168.20.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
On R2:
interface Ethernet0/1
ip vrf forwarding cu-green
ip address 192.168.22.254 255.255.255.0
Test reachability to SW4:
R2#ping vrf cu-green 192.168.22.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
On R1:
interface Ethernet0/2.100
mpls ip
!
interface Ethernet0/2.200
mpls ip
!
Configure BGP:
router bgp 65000
neighbor 10.10.10.2 remote-as 65000
neighbor 10.10.20.2 remote-as 65000
!
address-family vpnv4
neighbor 10.10.10.2 activate
neighbor 10.10.20.2 activate
exit-address-family
!
address-family ipv4 vrf cu-green
redistribute connected
exit-address-family
!
address-family ipv4 vrf cu-red
redistribute connected
exit-address-family
!
R1(config)#ip vrf cu-red
R1(config-vrf)#route-target both 65000:100
!
R1(config)#ip vrf cu-green
R1(config-vrf)#route-target both 65000:200
On R2:
interface Ethernet0/2.100
mpls ip
!
interface Ethernet0/2.200
mpls ip
!
router bgp 65000
neighbor 10.10.10.1 remote-as 65000
neighbor 10.10.20.1 remote-as 65000
!
address-family vpnv4
neighbor 10.10.10.1 activate
neighbor 10.10.20.1 activate
exit-address-family
!
address-family ipv4 vrf cu-green
redistribute connected
exit-address-family
!
address-family ipv4 vrf cu-red
redistribute connected
exit-address-family
R2(config)#ip vrf cu-red
R2(config-vrf)#route-target both 65000:100
!
R2(config)#ip vrf cu-green
R2(config-vrf)#route-target both 65000:200
Verification:
From SW1 to SW3:
SW1#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
But can't Reach SW2 or SW4 in VRF cu-green:
SW1#ping 192.168.22.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.22.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
SW1#ping 192.168.20.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
Same Test for SW2:
From SW2 to SW4:
SW2#ping 192.168.20.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.20.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/1/1 ms
But can't Reach SW3 or SW1 in VRF cu-red:
SW2#ping 192.168.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.1.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
SW2#ping 192.168.2.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.2.1, timeout is 2 seconds:

UU.U
Success rate is 0 percent (0/5)
Both R1 & R2 has separate tables for VRFs cu-red and cu-green.

Question No: 5

MultipleChoice

LAB SIMULATION

A network is configured with CoPP to protect the CORE router route processor for stability and DDoS protection. As a company policy, a class named class-default is preconfigured and must not be modified or deleted. Troubleshoot CoPP to resolve the issues introduced during the maintenance window to ensure that:

WAN

CORE

MGMT

Options

AExplanation:
CORE
policy-mao CoPP
class CoPP-CRITICAL
police 1000000 50000 50000 conform-action transmit exceed-action transmit

CORE# Copy run start
TESTING: -
CORE

MGMT

Question No: 6

MultipleChoice

Refer to the exhibit. A network engineer receives a report that Spoke 1 users can perform bank transactions with the server located at the Center site, but Spoke 2 users cannot. Which action resolves the issue?

Options

AConfigure the Spoke 2 users IP on the router B OSPF domain

BConfigure encapsulation dot1q 78 on the router C interface.

CConfigure IPv6 on the routers B and C interfaces

DConfigure OSPFv2 on the routers B and C interfaces

Question No: 7

MultipleChoice

A network administrator is trying to access a branch router using TACACS+ username and password credentials, but the administrator cannot log in to the router because the WAN connectivity is down. The branch router has following AAA configuration:

Which command will resolve this problem when WAN connectivity is down?

Options

Aaaa authentication login default group tacacs+ local

Baaa authentication login default group tacacs+ enable

Caaa authentication login default group tacacs+ console

Daaa authentication login console group tacacs+ enable

Question No: 8

MultipleChoice

Exhibit:

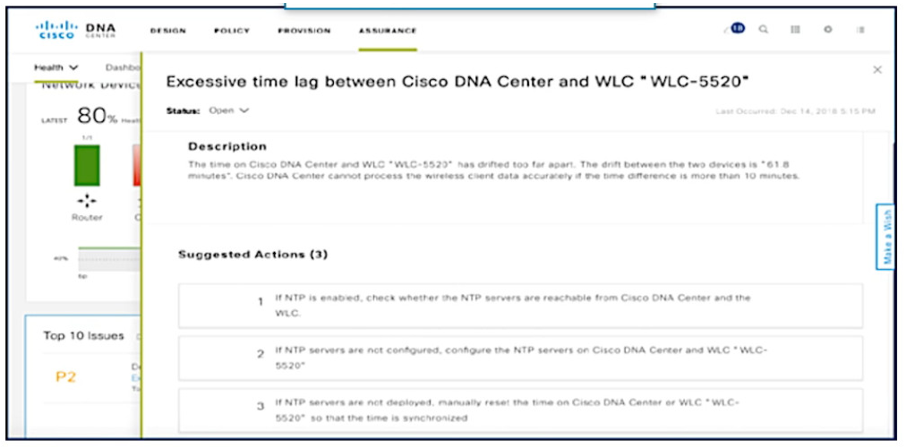

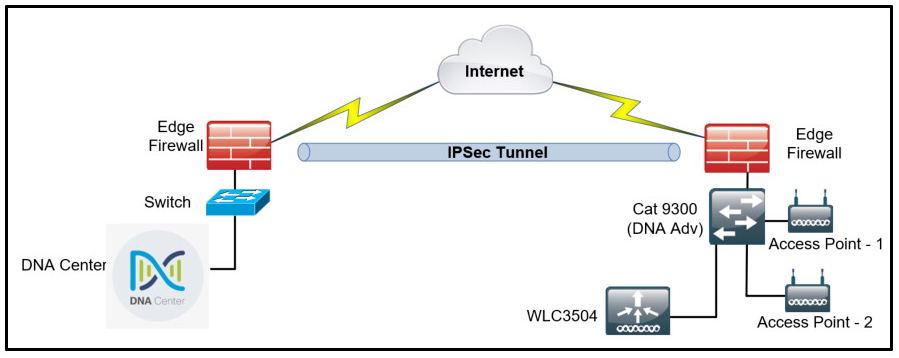

NTP is configured across the network infrastructure and Cisco DNA Center. An NTP issue was reported on the Cisco DNA Center at 17:15. Which action resolves the issue?

Options

ACheck and resolve reachability between the WLC and the NTP server

BReset the NTP server to resolve any synchronization issues for all devices

CCheck and resolve reachability between Cisco DNA Center and the NTP server

DCheck and configure NTP on the WLC and synchronize with Cisco DNA Center

Question No: 9

MultipleChoice

Exhibit:

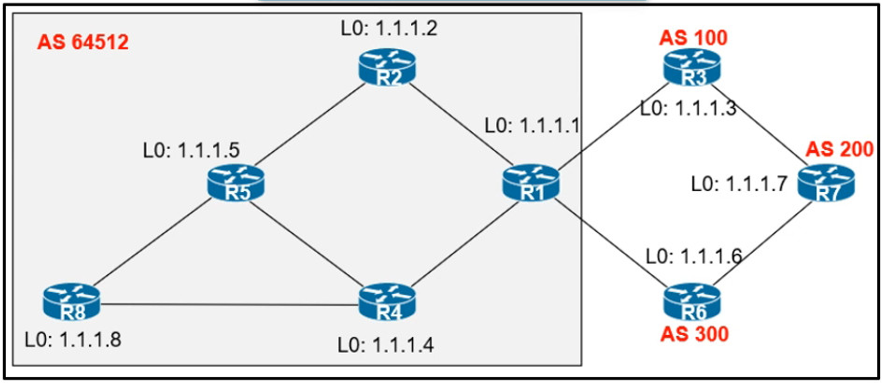

An engineer configured R2 and R5 as route reflectors and noticed that not all routes are sent to R1 to advertise to the eBGP peers. Which iBGP routers must be configured as route reflectors to advertise all routes to restore reachability across all networks?

Options

AR1 and R4

BR1 and R5

CR4 and R5

DR2 and R5

Question No: 10

MultipleChoice

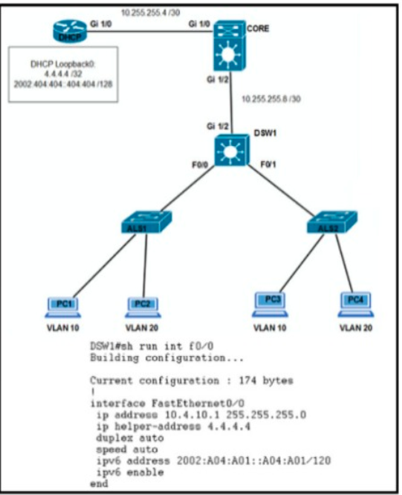

Clients on ALS2 receive IPv4 and IPv6 addresses but clients on ALS1 receive only IPv4 addresses and not IPv6 addresses. Which action on DSW1 allows clients on ALS1 to receive IPv6 addresses?

Options

AConfigure DSW1(config-if)#ipv6 helper address 2002:404:404::404:404

BConfigure DSW1(dhcp-config)#default-router 2002:A04:A01::A04:A01

CConfigure DSW1(config)#ipv6 route 2002:404:404:404:404/128 FastEthernet1/0

DConfigure DSW1(config-if)#ipv6 dhcp relay destination 2002:404:404::404:404 GigabitEthernet1/2
