Understanding the Count Tool Alert:

In AutoCAD, the Count tool is used to quantify the number of block instances within a drawing.

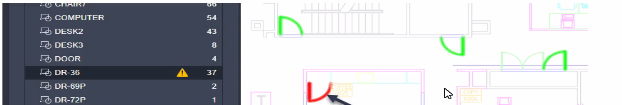

A yellow error alert triangle next to the block count indicates an inconsistency or issue with the blocks in the drawing.

Common Reasons for Alert:

The block is on the wrong layer.

The block is exploded.

The block does not have its color assigned to BYLAYER.

The block has a different scale factor.

Identifying the Issue:

Option A: The block being on the wrong layer does not typically trigger a count alert.

Option C: The color assignment to BYLAYER does not affect the block count.

Option D: Different scale factors usually do not trigger a count alert unless the block definition is altered.

Option B: Exploded blocks result in losing the block definition, causing AutoCAD to alert the user of incomplete blocks, which matches the scenario depicted in the exhibit.

Conclusion:

The alert is due to the block being exploded, resulting in a mismatch between the expected block count and the actual block instances recognized by AutoCAD.

AutoCAD Help Documentation on Block Counting and Alerts.

User manuals and community forums discussing common issues with block counts.

Understanding Traces:

Traces in AutoCAD allow multiple users to collaborate on a drawing by adding comments and updates.

Each Trace keeps a history of contributions and modifications made by different users.

Adding Information to Existing Trace:

When a CAD designer updates a drawing by adding a new hole, this action is recorded in the existing Trace.

The Trace palette will show contributors and modifications, maintaining a detailed record.

Expected Result:

After adding the new hole, the existing Trace will be updated to show another contributor.

This helps in tracking changes and identifying who made specific updates.

Conclusion:

The Traces palette will display another contributor in the existing Trace after the update.

AutoCAD User Guide on Using Traces.

AutoCAD Help Documentation on Collaboration Tools.

an annotative hatch is a hatch that automatically adjusts its scale and size to match the viewport scale. This means that the hatch pattern will look the same regardless of how you zoom in or out of the viewport.

To create an annotative hatch, you need to:

Set the annotation scale tool to 1:1

Create your hatch as usual

In the properties palette, make the hatch annotative

Add annotation scales to the hatch as needed

This will create a hatch that displays correctly at different viewport scales.

https://forums.autodesk.com/t5/autocad-forum/annotative-hatch/td-p/2651268

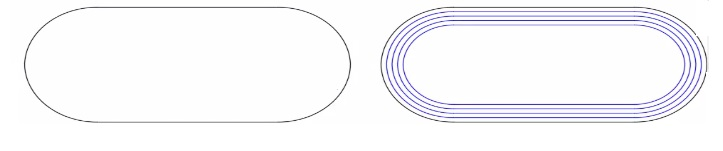

To create multiple parallel lines (lanes) for a running track using the OFFSET command in AutoCAD, and to ensure they are placed on the current layer (LANES), follow these steps:

Initiate the OFFSET command:

Type OFFSET in the command line and press Enter.

Set the offset distance:

When prompted for the offset distance, type 10 and press Enter.

Use the Layer option:

To place the offset lines on the current layer, type L for Layer and press Enter.

Select Current to ensure the new offset lines are created on the current layer (LANES).

Select the Multiple option:

To create multiple offsets at the same distance, type M for Multiple and press Enter.

Create the offsets:

Select the polyline (outside lane) as the object to offset.

Click to the side where the offsets are to be created (inside of the original polyline).

Repeat the clicks to create the necessary number of lanes.

This method ensures that each new lane is created at a consistent distance of 10 units from the previous one and that all new lanes are placed on the current layer.

AutoCAD OFFSET Command: Creating Multiple Offsets - Autodesk Knowledge Network

Open the WBLOCK Command: Type WBLOCK in the command line and press Enter.

Define the Block: Select the objects you want to include in the block.

Specify the Base Point: Select the base point for the block insertion.

Insert Units: Ensure to set the Insert Units option to match the desired unit for automatic scaling when the block is inserted into other drawings. This setting will control how the block is scaled based on the units of the target drawing.

AutoCAD Help Documentation on Write Block (WBLOCK) command

According to the AutoCAD for Design and Drafting documents1, the command that should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction isXLINE2.This command creates a construction line, which is a type of reference line that can help you manage accurate parameters of your drawing2.You can also use point objects as nodes or reference geometry for object snaps and relative offsets3.
