Question

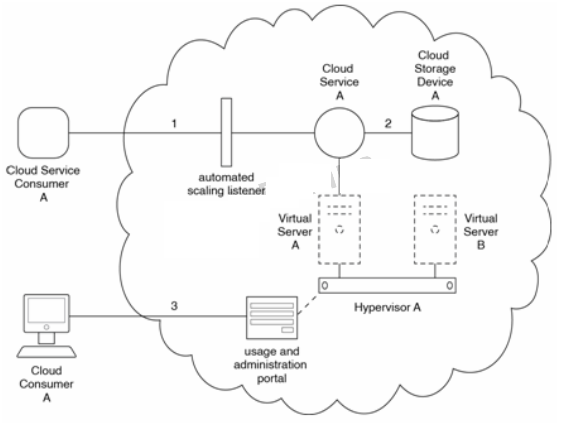

Cloud Service A is installed on Virtual Server A and the database it accesses is located on Cloud Storage Device A. Both Virtual Servers A and B are hosted by Hypervisor A. Requests from cloud

service consumers are intercepted by an automated scaling listener that automatically routes subsequent requests to additional instances of Cloud Service A whenever the given usage of an instance exceeds two concurrent requests.

Cloud Service Consumer A accesses Cloud Service A (1), which either sends a query or a read/write request to a database on Cloud Storage Device A (2). A usage and administration portal is available, enabling Cloud Consumer A to view the billing and usage history of Virtual Servers A and B (3).

Cloud Service Consumer A and Cloud Consumer A are owned by Organization A. which performs several tests on the cloud architecture that produce the following results:

A stress test is performed to generate workloads on Virtual Servers A and B to gauge their load capacity. This test reveals that both virtual servers have firm workload thresholds. If the workload capacity on either virtual server reaches its threshold, further processing requests are rejected.

An availability test shows that Cloud Service A becomes unavailable whenever Hypervisor A crashes.

A security test is carried out during which the cloud architecture is accessed by a malicious cloud consumer that disables the path used by Cloud Service A to access Cloud Storage Device A, thereby causing all subsequent cloud service consumer requests to be replied to with data access errors.

Which of the following statements describes a solution that addresses the concerns raised by the three tests?

Izetta · Accepted Answer

B) The Elastic Resource Capacity pattern can be applied to enable resources to be assigned to the virtual servers dynamically. The Hypervisor Clustering pattern can be applied to avoid jeopardizing the availability of Cloud Service A when its underlying hypervisor fails. The Multipath Resource Access pattern can be applied to establish an alternative path to Cloud Storage Device A. Cloud Service A can then be designed to access Cloud Storage Device A via the alternative path whenever access via the original path fails.

Izetta · Answer

A) The Resource Reservation pattern can be applied to ensure that Virtual Servers A and B are not accessed by any cloud consumers other than Organization A, thereby enabling their respective capacity to be maximized. A second hypervisor can be implemented and the Synchronized Operating State pattern can be applied to emulate the usage of the resource cluster mechanism with the two hypervisors. This will prevent Cloud Service A from being affected if one of the hypervisors fails. The Service State Management pattern can be applied to establish a secondary cloud storage device that can be accessed by Cloud Service A whenever Cloud Storage Device A becomes inaccessible.

Izetta · Answer

C) The Elastic Resource Capacity pattern can be applied to enable resources to be assigned to the virtual servers dynamically. The Resource Pooling pattern can be applied to allow Hypervisor A to be part of a larger hypervisor pool. The Cross-Storage Device Vertical Tiering pattern can be applied to allow Cloud Service A to access Cloud Storage Device A via different tiers.

Izetta · Answer

D) None of the above.
